Serial Bus Analysis
R&S
®
RTB2000
218User Manual 1333.1611.02 ─ 04
@PROTOCOL_NAME = lin
# ----------------------------------------------------------------------------
# Labels for LIN protocol
# Column order: Identifier, Label
# ----------------------------------------------------------------------------
# Labels for standard addresses
0x3F,Temperature
1Ch,Left brake
20h,Right brake
# Following ID is provided as integer
33,Mirror
0x37,Indoor lights
# Labels for reserved addresses
0x3C,Master_Request_Frame
0x3D,Slave_Response_Frame
# ----------------------------------------------------------------------------

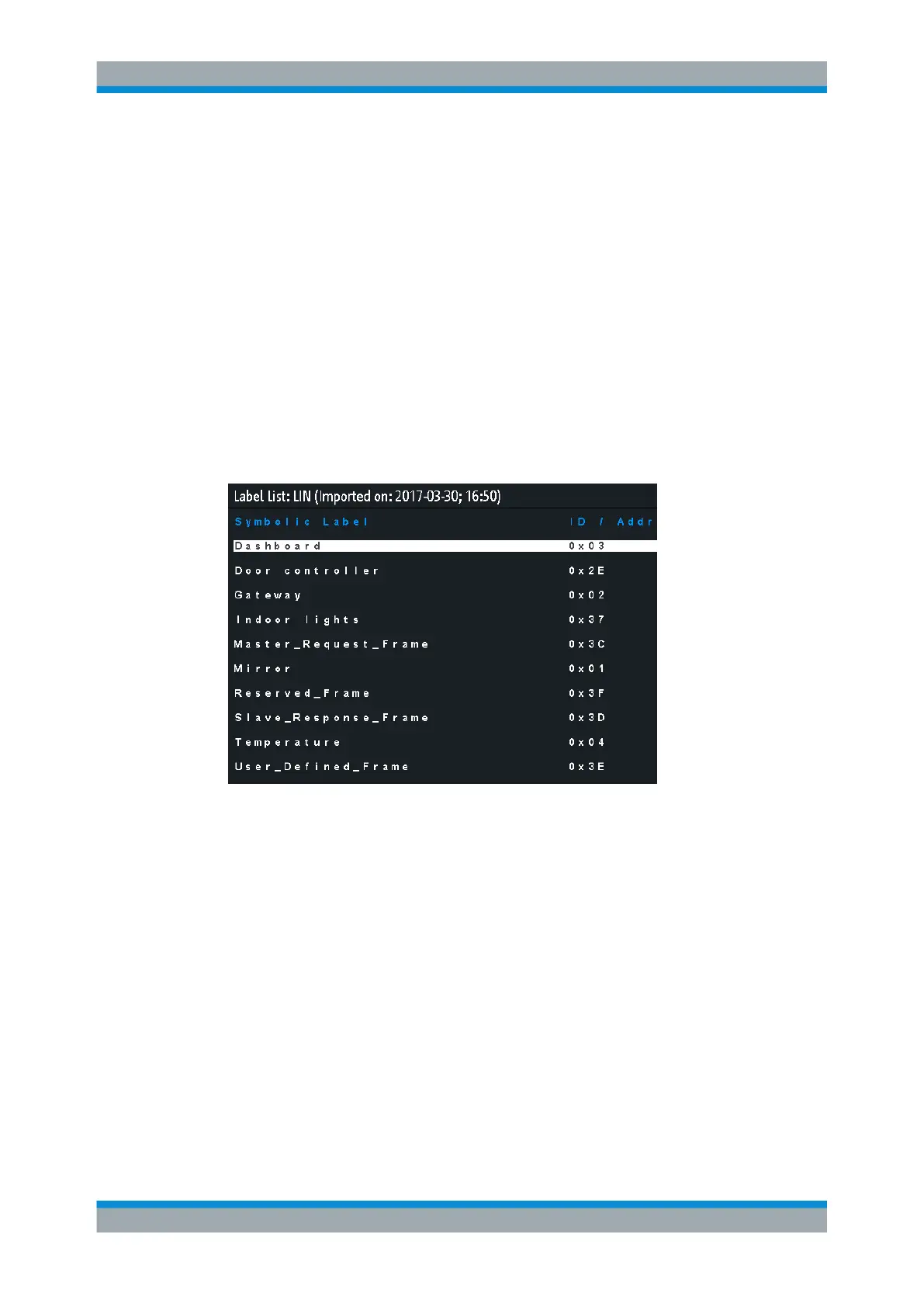

Figure 12-31: Label list for LIN
LIN (Option R&S RTB-K3)
