Protocol Analysis
R&S
®
RTM20xx
150User Manual 1317.4726.02 ─ 01
Bus Type
Defines the bus or protocol type for analysis. For most types, a special option to the
instrument is required.
Remote command:
BUS<b>:TYPE on page 375
Configuration
Opens the configuration menu for the selected bus type.
Decode
Decodes the signal according to the protocol configuration and displays the decoded
signal - the content of every message. The decoding format is set with "Display".
Remote command:
BUS<b>:STATe on page 374
Display
Opens the "Display" menu, where you can:
●
Display the bit lines
●
Set the decoding format
●
Define labels for the bus and its lines
See: chapter 11.1.3, "Display Settings", on page 150
Frame Table
Opens the "Frame table" menu to configure and display the frame table with detailed
decoded data for each frame of the acquisition.
See: chapter 11.1.5, "Frame Table: Decode Results", on page 154

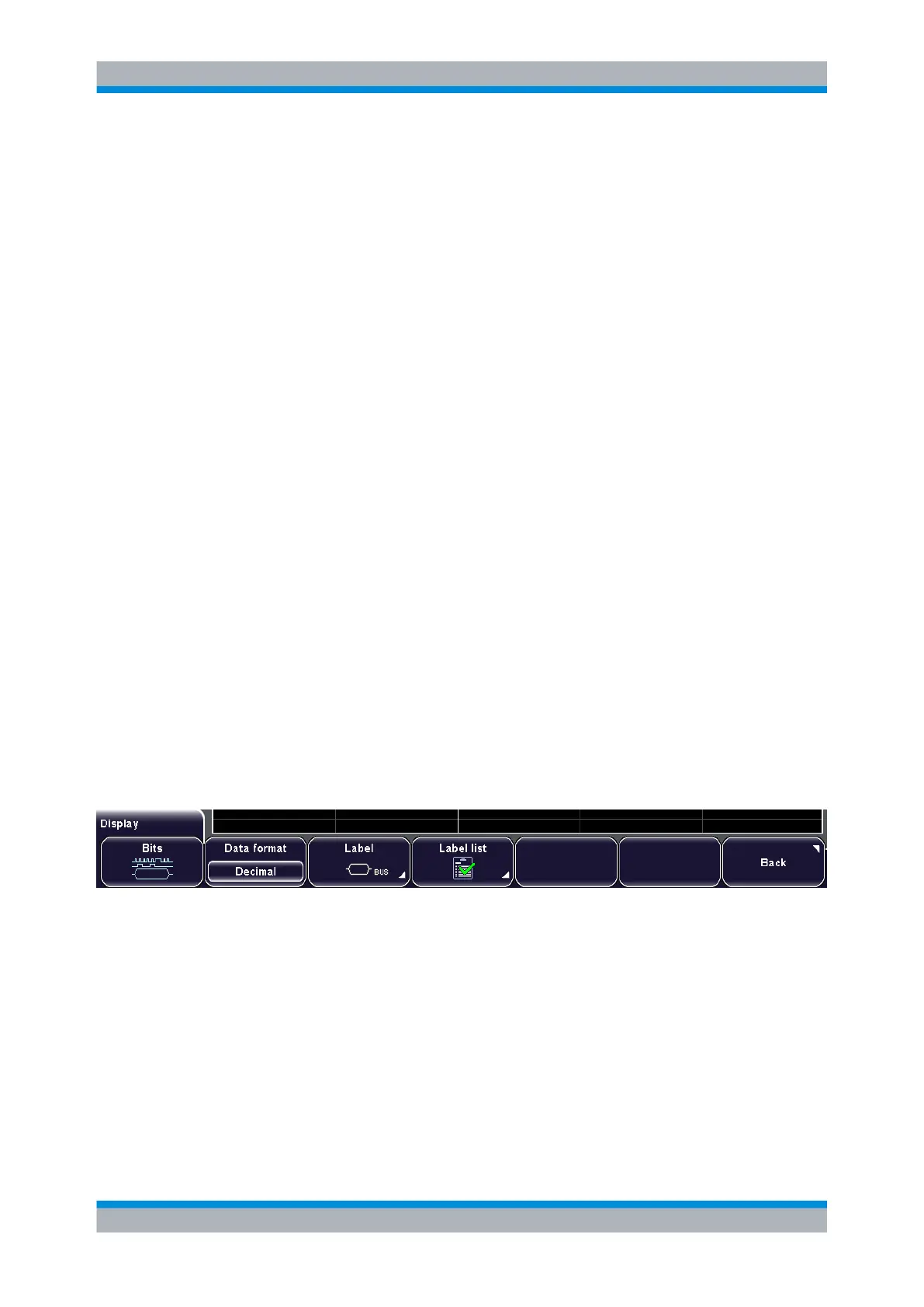

11.1.3 Display Settings
Access: PROTOCOL LOGIC > if "Logic" menu is displayed: "Protocol" > "Display"
Bits
Displays the individual bit lines above the decoded bus line.
Remote command:
BUS<b>:DSIGnals on page 375
Data format
Sets the decoding format of the data: Binary, Hexadecimal, Decimal or ASCII.
Remote command:
BUS<b>:FORMat on page 375
Basics of Protocol Analysis
