Reference Waveforms

R&S

RTM20xx

76User Manual 1317.4726.02 ─ 01

4. Press "Load".

A file explorer is displayed.

5. Select the storage device and the file that contains the reference. Use the "Naviga-

tion" knob to scroll through the directories. To change the directory, scroll to the name

of the directory and press the knob, or press "Change Directory".

6. Press "Load".

The saved reference is loaded to the R&S RTM.

7. If you also want to load the settings that were used to create the reference waveform:

a) In the "Reference" or "Load" menu, press "Reference" and select the reference

number you want to load the settings to.

b) Press "Load Settings".

"Load Settings" is only available if the waveform was loaded to the reference

storage before, you cannot laod the setting first.

5.2 Reference for REF key

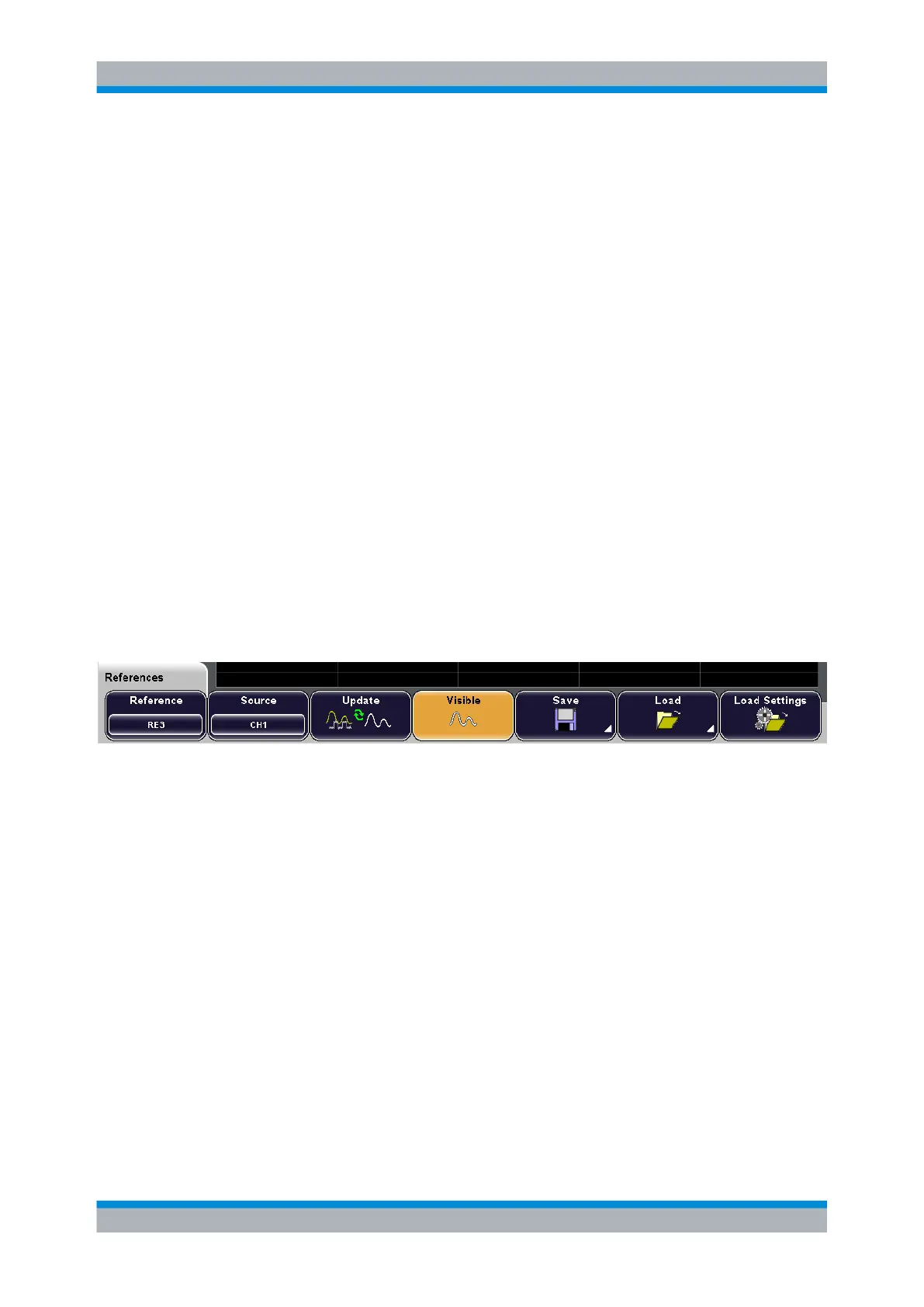

The REF key provides functions for working with reference waveforms on the instrument.

For details on working with these functions, see chapter 5.1, "Using References",

on page 74.

Reference......................................................................................................................76

Source...........................................................................................................................76

Update...........................................................................................................................77

Visible............................................................................................................................77

Save..............................................................................................................................77

Load..............................................................................................................................77

└ Reference.......................................................................................................77

└ Load................................................................................................................77

Load Settings................................................................................................................77

Reference

Selects one of the four possible internal reference storages.

See also: chapter 5.1, "Using References", on page 74.

Source

Defines the source of the reference waveform. Any active channel, math or reference

waveform can be selected.

Reference for REF key
