Masks
R&S
®
RTM20xx
129User Manual 1317.4726.02 ─ 01
Which action is to be taken when a violation is detected is defined using the Actions
softkey. See also: chapter 9.2.3, "Performing a Mask Test", on page 127.
Remote command:
MASK:TEST on page 355
Pause
Temporarily stops the mask test without closing the "Masks" menu. Counts are not
deleted, and the actions cannot be changed during a pause.
Remote command:
MASK:TEST on page 355

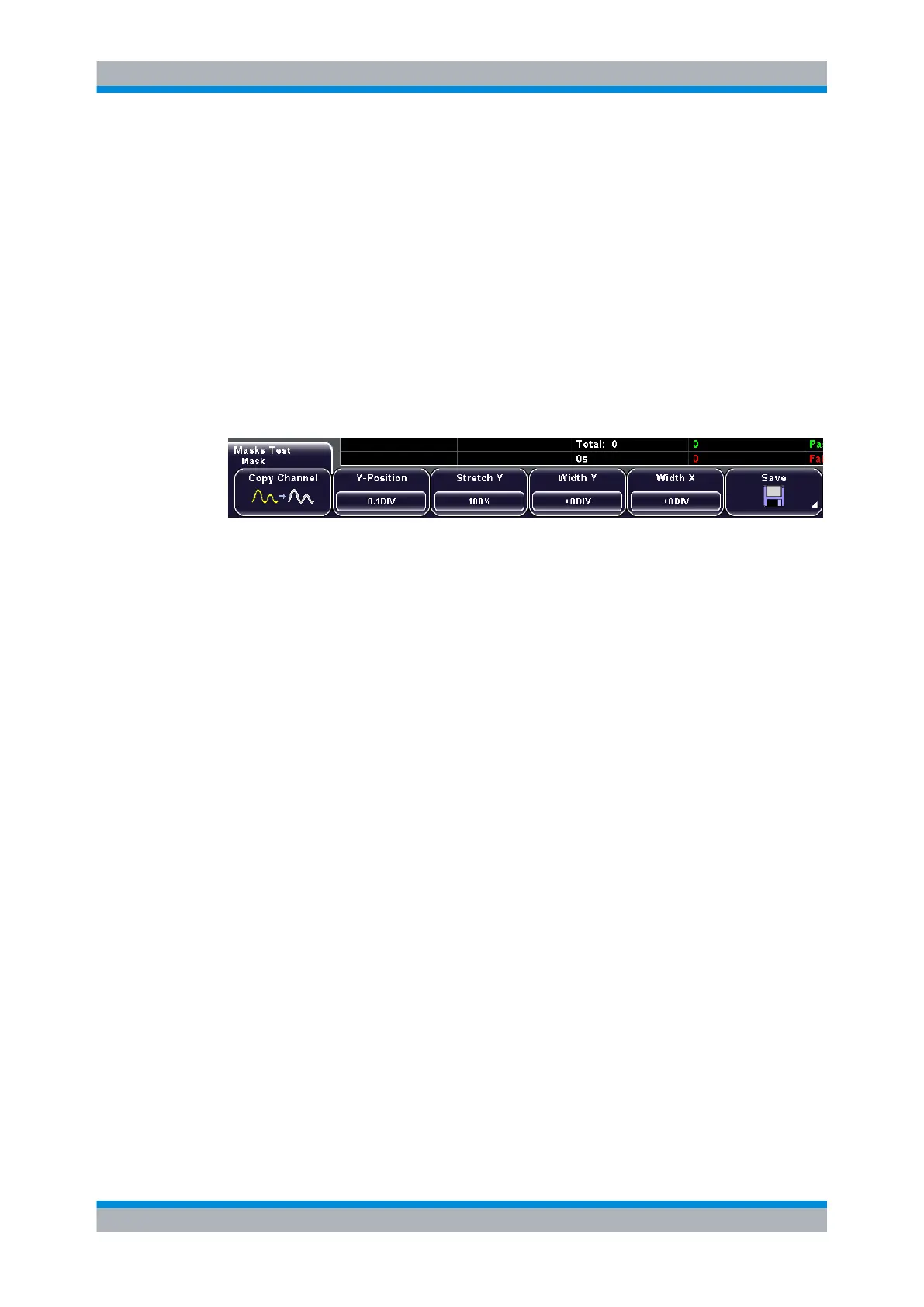

New Mask
Opens a submenu to define a new mask for testing.
See also: chapter 9.2.1, "Creating New Masks", on page 125
Copy Channel ← New Mask
Creates a new mask from the envelope waveform of the selected channel and stores it
in the instrument.
Remote command:
MASK:CHCopy on page 355
Y-Position ← New Mask
Moves the mask vertically within the display. Turn the "Navigation" rotary knob to change
the y-position.
The current position is indicated as an offset from the center in divisions; a positive value
indicates the waveform was moved upwards; a negative value indicates the waveform
was moved down.
Remote command:
MASK:YPOSition on page 356
Stretch Y ← New Mask
Changes the vertical scaling to stretch the mask in y-direction.
Turn the "Navigation" rotary knob clockwise to increase the factor, or counterclockwise
to decrease the factor. A value over 100% stretches the amplitudes; a value less than
100% compresses the amplitudes.
Remote command:
MASK:YSCale on page 356
Width Y ← New Mask
Changes the width of the mask in vertical direction.
Reference for MASKS key
