6.3.1.3 Statistics

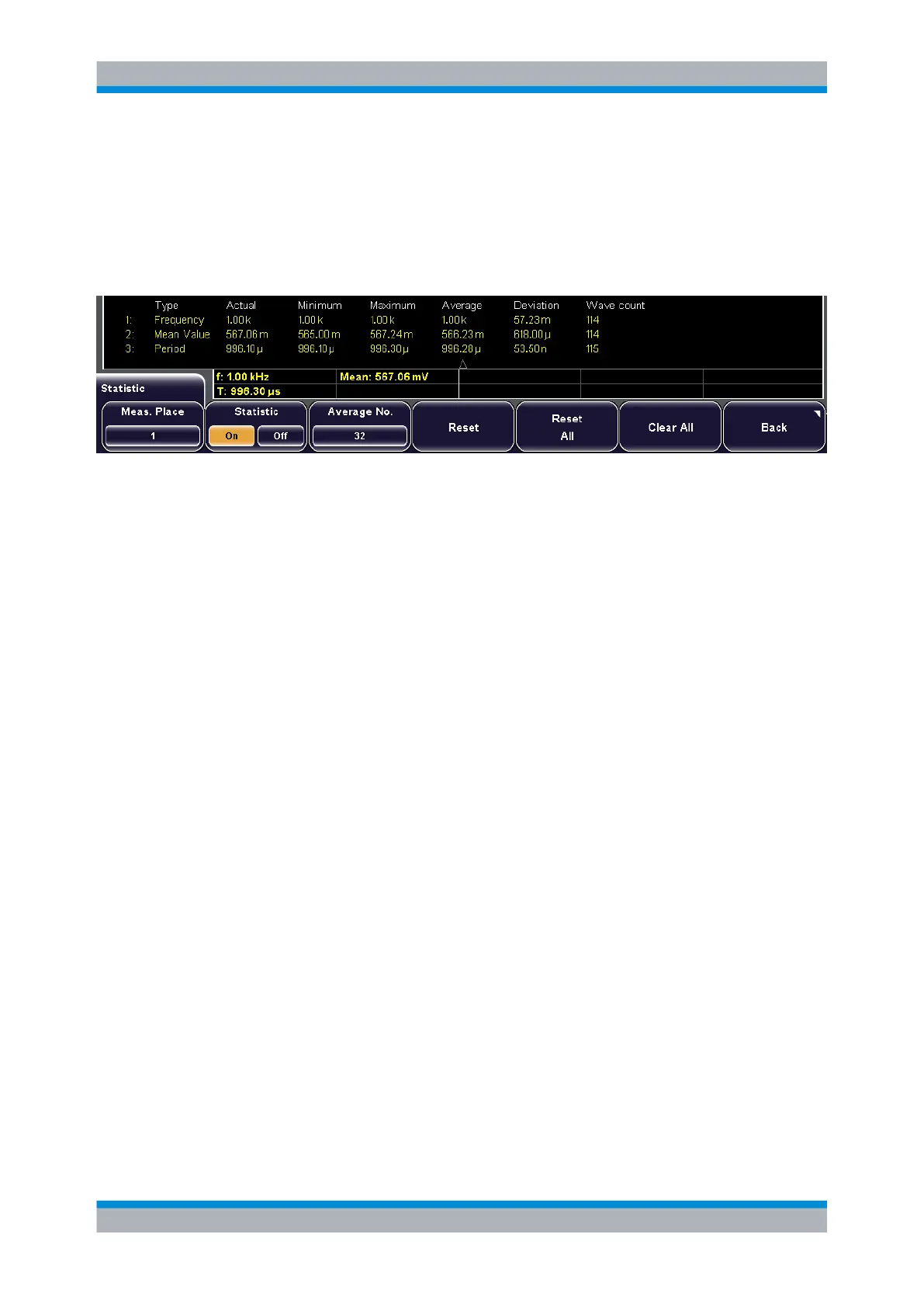

For each active measurement, you can enable a statistic evaluation of the measurement
results. It returns the current, minimum and maximum measurement values, the average
and standard deviation, and the number of measured waveforms.
For configuration settings, see "Statistic" on page 96.
Remote command:
● MEASurement<m>:RESult[:ACTual]? on page 340
● MEASurement<m>:RESult:AVG? on page 343
● MEASurement<m>:RESult:STDDev? on page 343
● MEASurement<m>:RESult:NPEak? on page 344
● MEASurement<m>:RESult:PPEak? on page 344
● MEASurement<m>:RESult:WFMCount? on page 344
● MEASurement<m>:STATistics:VALue:ALL? on page 344
● MEASurement<m>:STATistics:VALue<n>? on page 345
6.3.2 Configuring and Performing Automatic Measurements
To configure and activate automatic measurements
1. Press the MEAS key.
2. Press "Meas. Place" to select one of the four measurement positions.
3. Press "Meas. Type" to select the type of measurement to perform. The type deter-
mines which results are displayed in the result table.
See also: "Meas. Type" on page 95.
4. Press "Source" to select the waveform for which the measurement is to be performed.
The source can be any active waveform depending on the selected measurement
type.
5. For rise time, fall time, delay and phase measurements, press "Reference Level" and
set the reference levels as percentages of the high signal level.
See also: "Reference Level: Upper, Middle, Lower Levels" on page 97
Automatic Measurements
