Measurements
R&S
®
RTM20xx
83User Manual 1317.4726.02 ─ 01
Cursor...........................................................................................................................83
Meas.Type....................................................................................................................83
Source...........................................................................................................................83
Track Scaling................................................................................................................84
Coupling........................................................................................................................84
Set to Wave...................................................................................................................84
Set To Screen...............................................................................................................84
Prev. peak.....................................................................................................................84
Next peak......................................................................................................................85
NAVIGATION................................................................................................................85
Cursor
Activates or deactivates the selected cursor measurement.
Remote command:
CURSor<m>:STATe on page 327

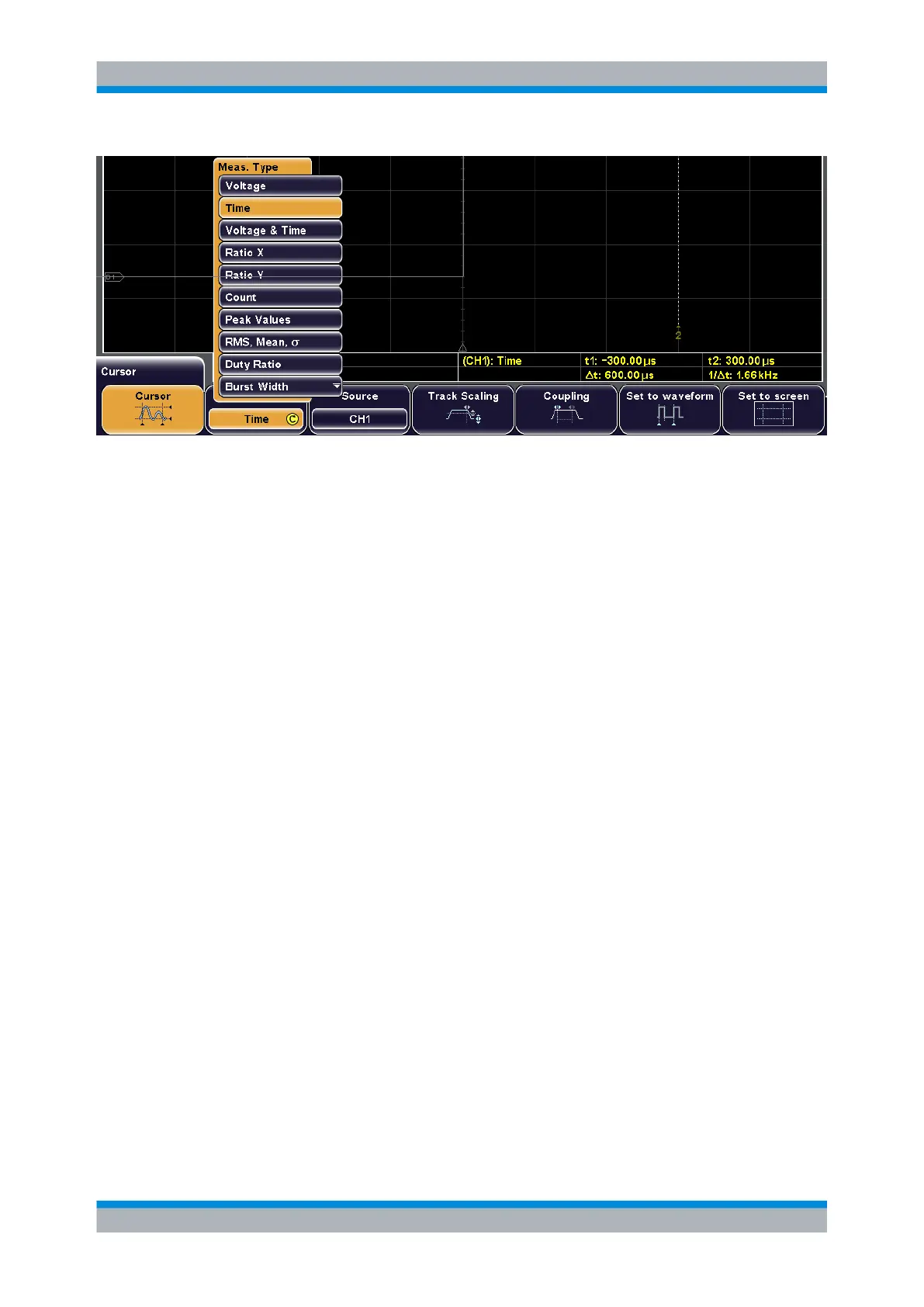

Meas.Type
Selects the cursor measurement type. Depending on the type, different results are dis-
played in the result table.
For a list of all cursor measurement types and their description, see chapter 6.3.1.1,
"Measurement Types", on page 87.
Depending on the measurement type, two or three cursors are provided which can be
set to the required position using the "Navigation" rotary knob. See also: "To change the
position of the cursors" on page 82.
The measurement type setting is not available for cursor measurments on FFT analysis.
Remote command:
CURSor<m>:FUNCtion on page 328
Source
Defines the source of the cursor measurement as one of the active channel, math, or
reference waveforms.
Cursor Measurements
