"Lower than"
Finds pulses shorter than the given "Width".
"Equal"
Finds pulses equal to the reference "Width" if "Variation" Δt = 0.
If "Variation" ≠ 0, the setting finds pulses within the range width ± Δt.
See also: Variation
"Not equal"
Finds pulses unequal to the reference "Width" if "Variation" Δt = 0.
If "Variation" ≠ 0, the setting finds pulses outside the range width ± Δt.
Remote command:
SEARch:TRIGger:WIDTh:RANGe on page 363
Width
Sets the reference pulse width, the nominal value for comparisons.
Remote command:
SEARch:TRIGger:WIDTh:WIDTh on page 364
Variation
Sets a range Δt to the reference "Width" if comparison is set to "Equal" or "Not equal".
The instrument finds pulses inside or outside the range width ± Δt.
Remote command:
SEARch:TRIGger:WIDTh:DELTa on page 364

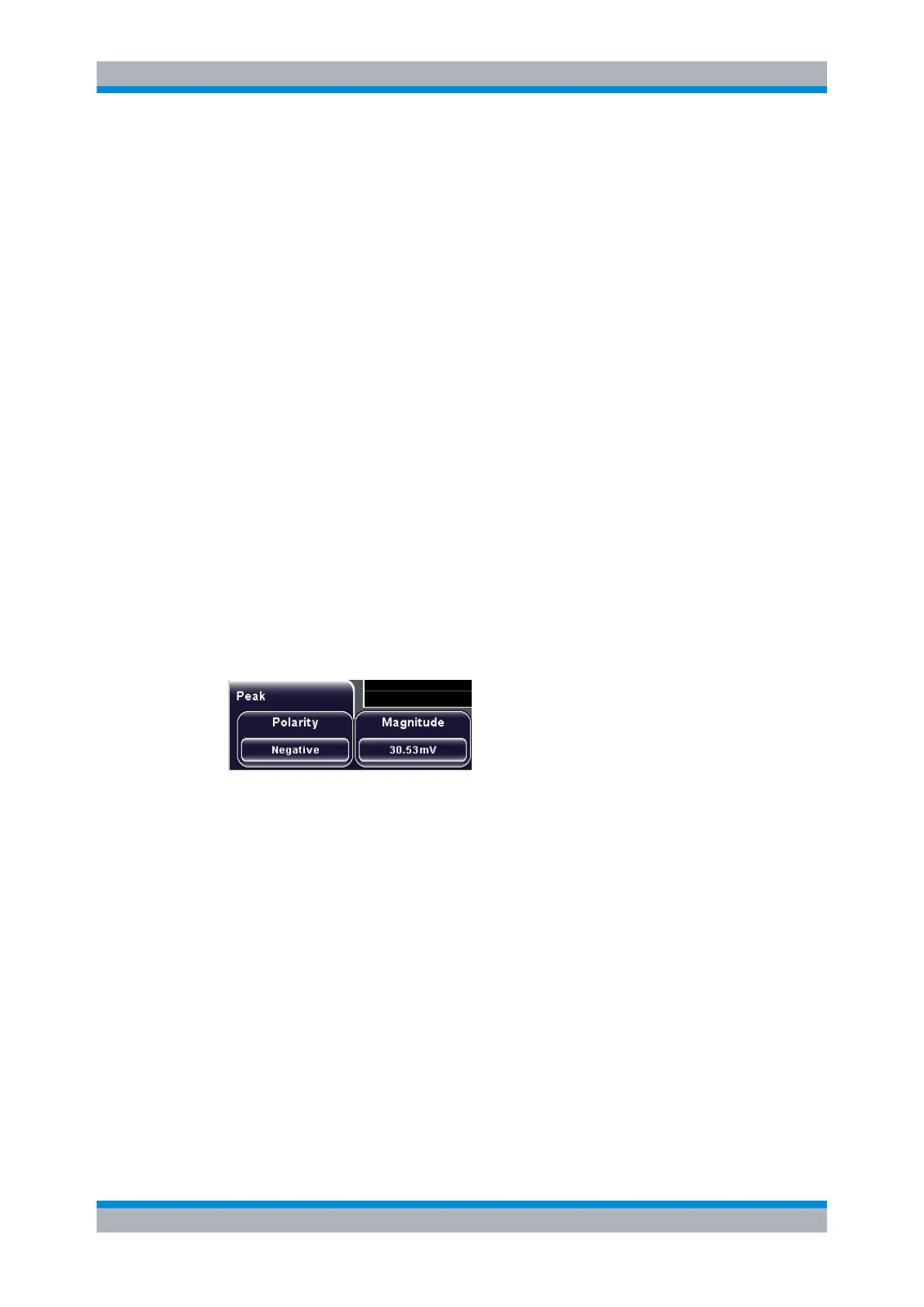

10.3.4 Peak Setup
Access: SEARCH MENU > "Search type = Peak" > "Setup"
Polarity
Indicates the polarity of the pulse to be searched for.
Remote command:
SEARch:MEASure:PEAK:POLarity on page 364
Magnitude
Sets the amplitude limit.
Remote command:
SEARch:MEASure:LEVel:PEAK:MAGNitude on page 364
10.3.5 Rise/Fall Time Setup
Access: SEARCH MENU > "Search type = Rise/Fall time" > "Setup"
