REPAIR MANUAL
BRP-Powertrain
Effectivity: 125 MAX/125 Junior MAX/125 Mini
MAX/125 Micro MAX
Edition 2 / Rev. 0
Chapter 5
Page 15
December 01/2010
Graphic
Repair kit part no. 276050

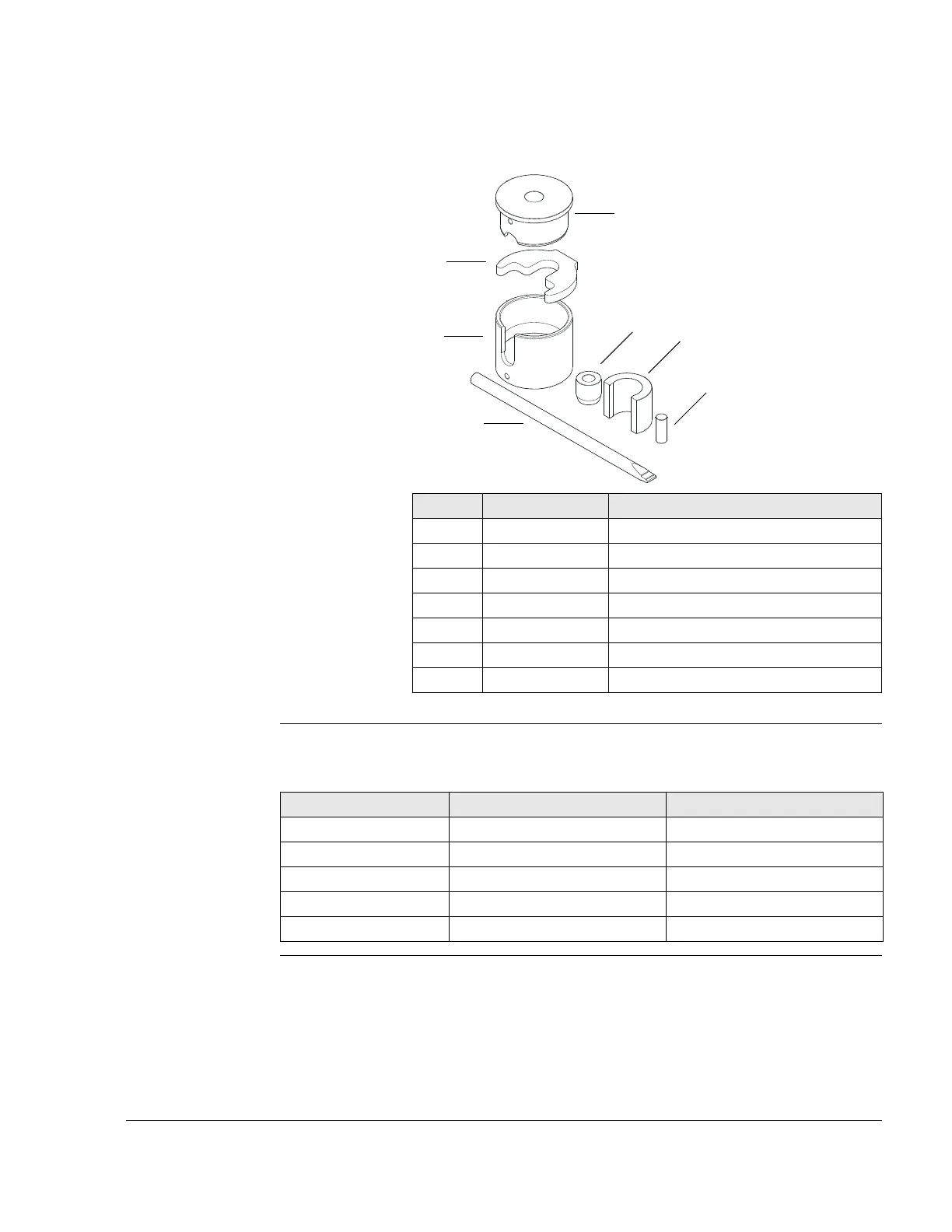

Figure 8 K00081
Connecting rod
parts
See Figure 9.
Parts are installed but are not included in repair kit part no. 276050.
Part Part no. Function
1 276050_R01 Bottom section of tool
2 276050_R02 Top section of tool
3 276050_R03 Thrust plate
4 276050_R04 Sleeve
5 276050_R05 Thrust ring
6 276050_R06 Crowbar
7 221122 Thrust pin
3
1
6
7
4
2
5
Part number Description Use
Part no. 295879 Crankshaft repair kit Connecting rod
Thrust washers
Connecting rod
Needle bearing
Connecting rod pin
