Rotex RRLQ006BBV3 - 4 Overview of Unit; Opening the Unit; Main Components; Functional Diagram

Installation manual
5
RRLQ006~008BBV3
Outdoor unit for air to water heat pump
4PW68222-1 – 02.2011

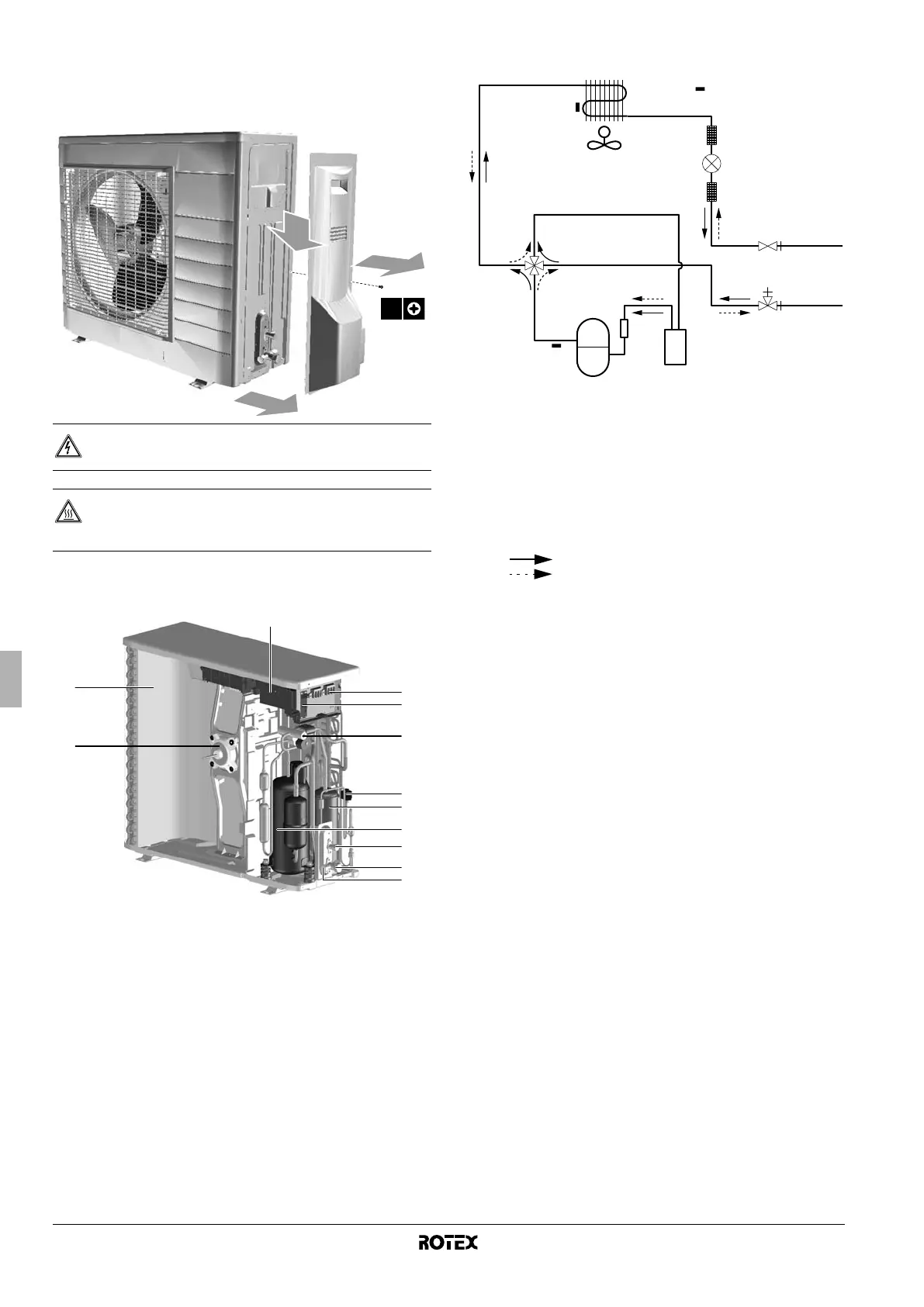

4. OVERVIEW OF UNIT
4.1. Opening the unit
4.2. Main components
1 Heat exchanger
2 Fan motor
3 Switch box with main pcb (inverter and control pcb)
4 Terminal communication and power supply
5 Service pcb
6 4-way valve
7 Electronic expansion valve (main)
8 Accumulator
9 Compressor
10 Liquid stop valve
11 Gas stop valve
12 Service port
4.3. Functional diagram
1 Thermistor (air)
2 Heat exchanger
3 Thermistor (heat exchanger)
4 Fan motor
5 Filter
6 Electronic expansion valve
7 Liquid stop valve
8 Gas stop valve with service port
9 Accumulator
10 Compressor
11 Thermistor (discharge)
12 4-way valve (ON=heating)
Cooling
Heating
