12.1 Start panel

The start panel (Figure 70) gives an overview of some important messages the user

must read before initiating the insole design.

Click Start to initiate the insole design.

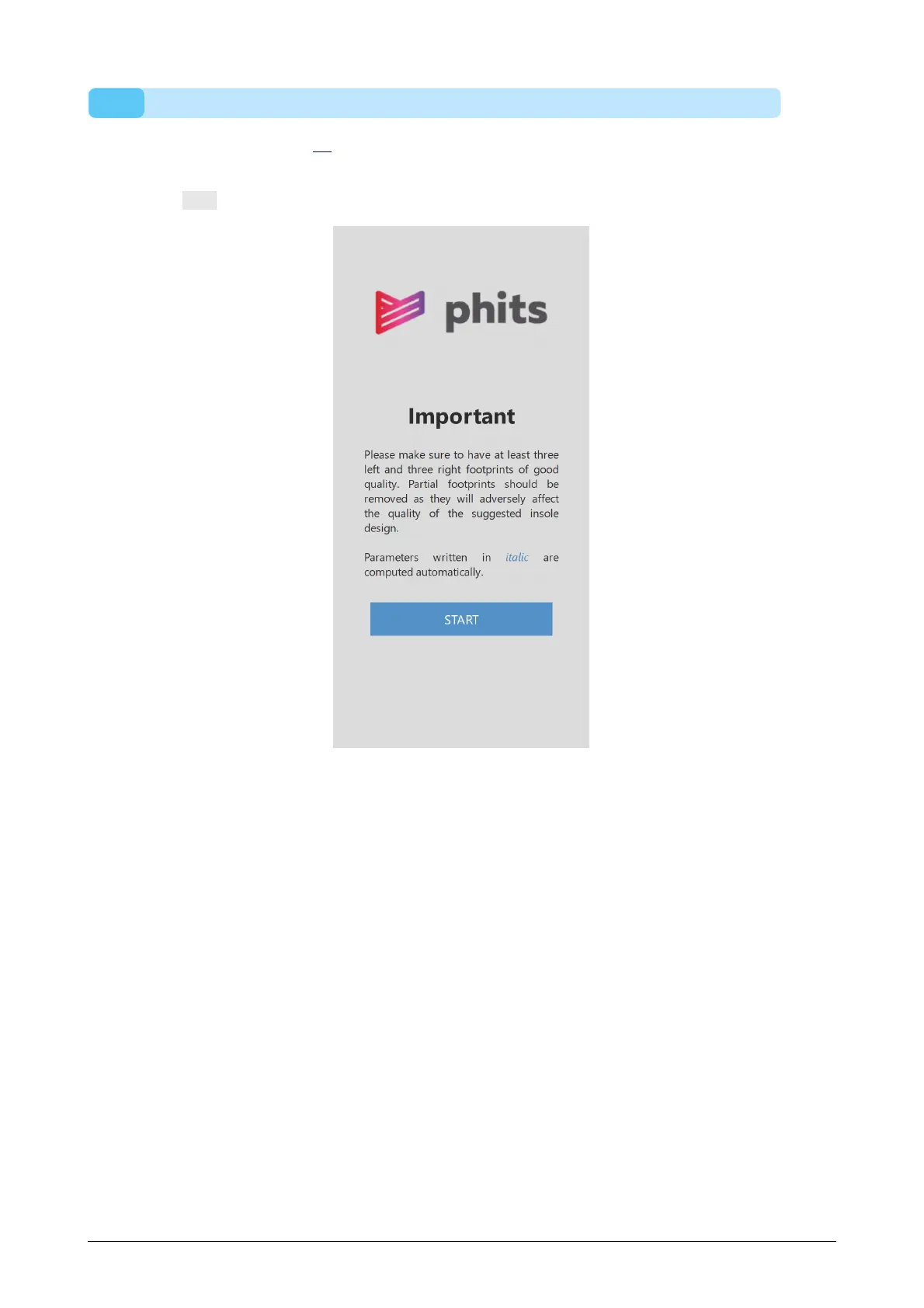

Figure 70: Start panel.

RS-PRD-00562-016 132
