18.4 Entry Level 1.5m plate

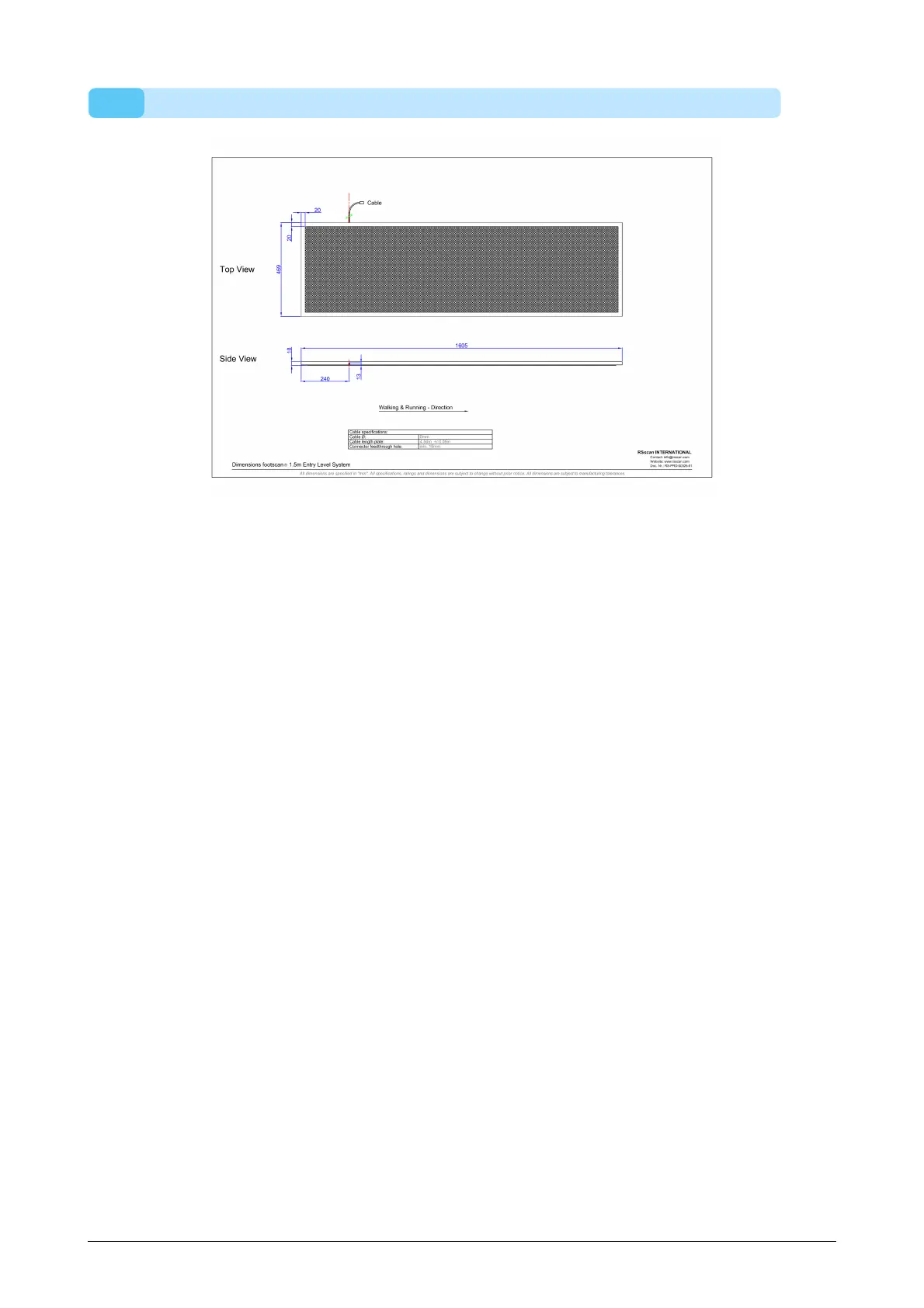

Figure 101: Dimensions entry level 1.5m plate
Dimensions (length x width x height)
1605mm x 469 mm x 18mm
Weight
24kg
Number of sensors
12288 (arranged in a 192x64 matrix)
Sensor dimensions
7.62mm x 5.08mm
Active sensor area
1463mm x 325mm
Sensor technology
resistive
Pressure range
1-127
N
/
CM
2
Data acquisition frequency
200Hz
Resolution
10bits
Operating temperature range
+15 °C to +30 °C
Storage temperature range
+0 °C to +40 °C
Relative humidity
20% to 80% non-condensing
Connection to PC
USB2.0
Plate cable length
4600mm ± 50mm (detachable cable)
Power consumption
5V @ 500mA maximum
Protection class
I
IP code
IP40
