18.6 0.5m footscan plate for interface box

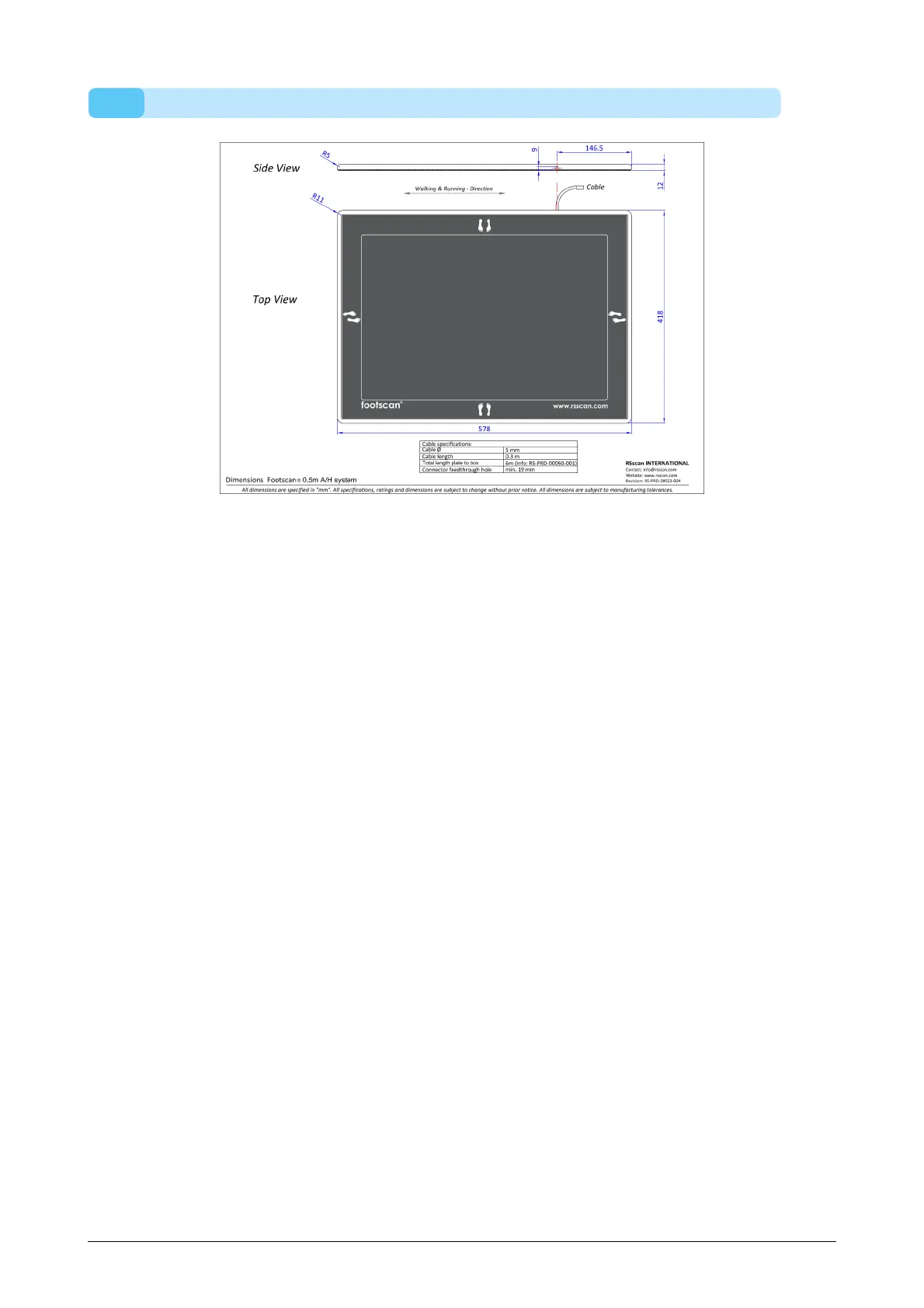

Figure 103: Dimensions 0.5m footscan plate for interface box
Dimensions (length x width x height)
578mm x 418 mm x 12mm
Weight
4.2kg
Number of sensors
4096 (arranged in a 64x64 matrix)
Sensor dimensions
7.62mm x 5.08mm
Active sensor area
488mm x 325mm
Sensor technology
resistive
Pressure range
1-127
N
/
CM
2
Data acquisition frequency
500Hz
Operating temperature range
+15 °C to +30 °C
Storage temperature range
+0 °C to +40 °C
Relative humidity
20% to 80% non-condensing
Plate cable length
300mm ± 50mm (integrated cable)
Total cable length to footscan
interface box
6000mm ± 50mm
Protection class
I
IP code
IP40
®
