RSscan footscan - Interface Box

18.5 Interface box

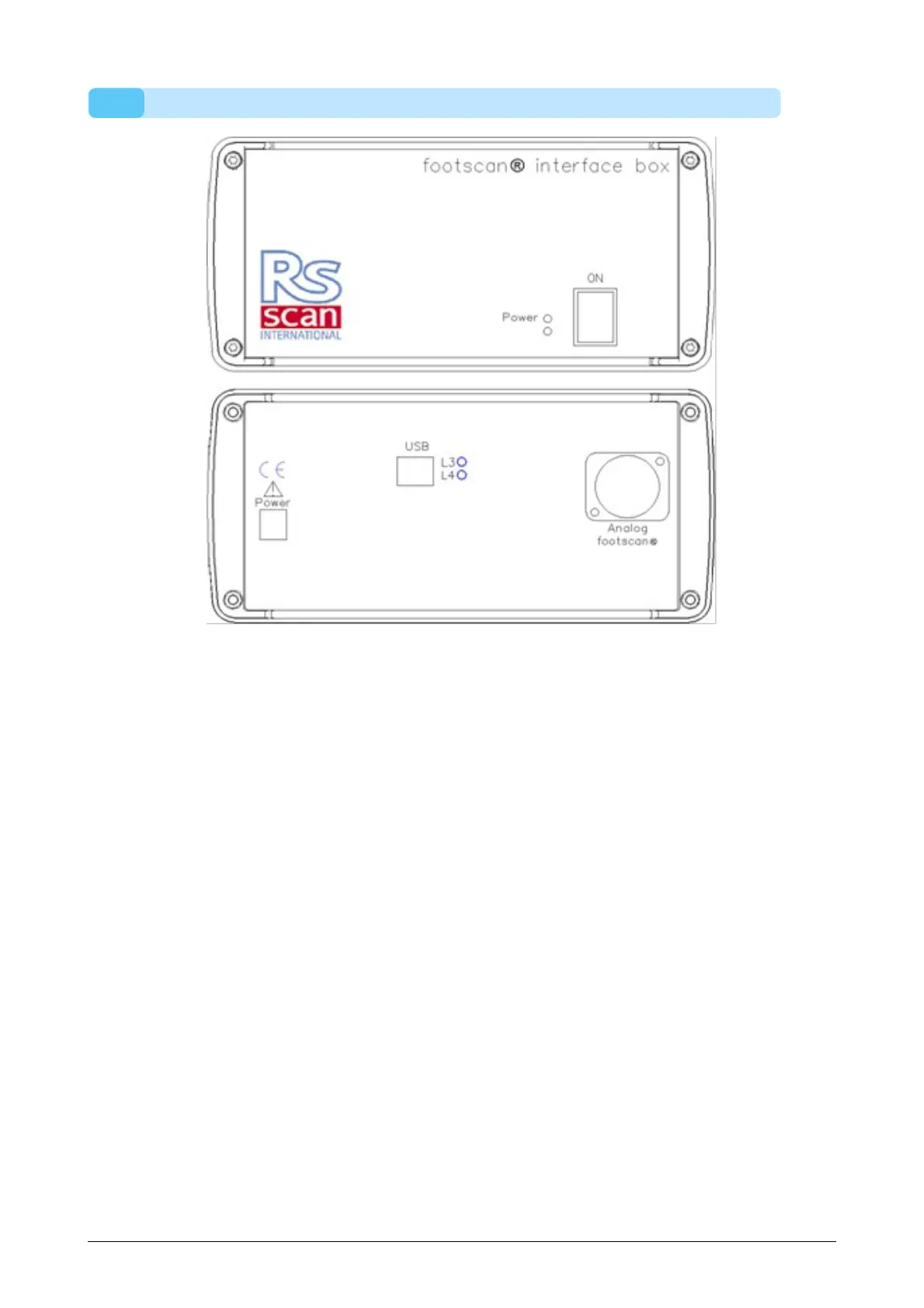

Figure 102: Interface box
Dimensions (length x width x height)
220mm x 190mm x 94mm
Weight
2.2kg
Data acquisition frequency
Up to 500Hz
Resolution
12bits
Operating temperature range
+15 °C to +30 °C
Storage temperature range
+0 °C to +40 °C
Relative humidity
20% to 80% non-condensing
Connection to PC
USB2.0 (standard USB cable A-B 5m)
Power
12V DC
Power consumption
with footscan 0.5m plate: 8.24W
with footscan 1m plate: 10.95W
with footscan 2m plate: 13.65W
Protection class
I
IP code
IP40
®
®
®
RS-PRD-00562-016 171
