RSscan footscan - 1 M Footscan Plate for Interface Box

18.7 1m footscan plate for interface box

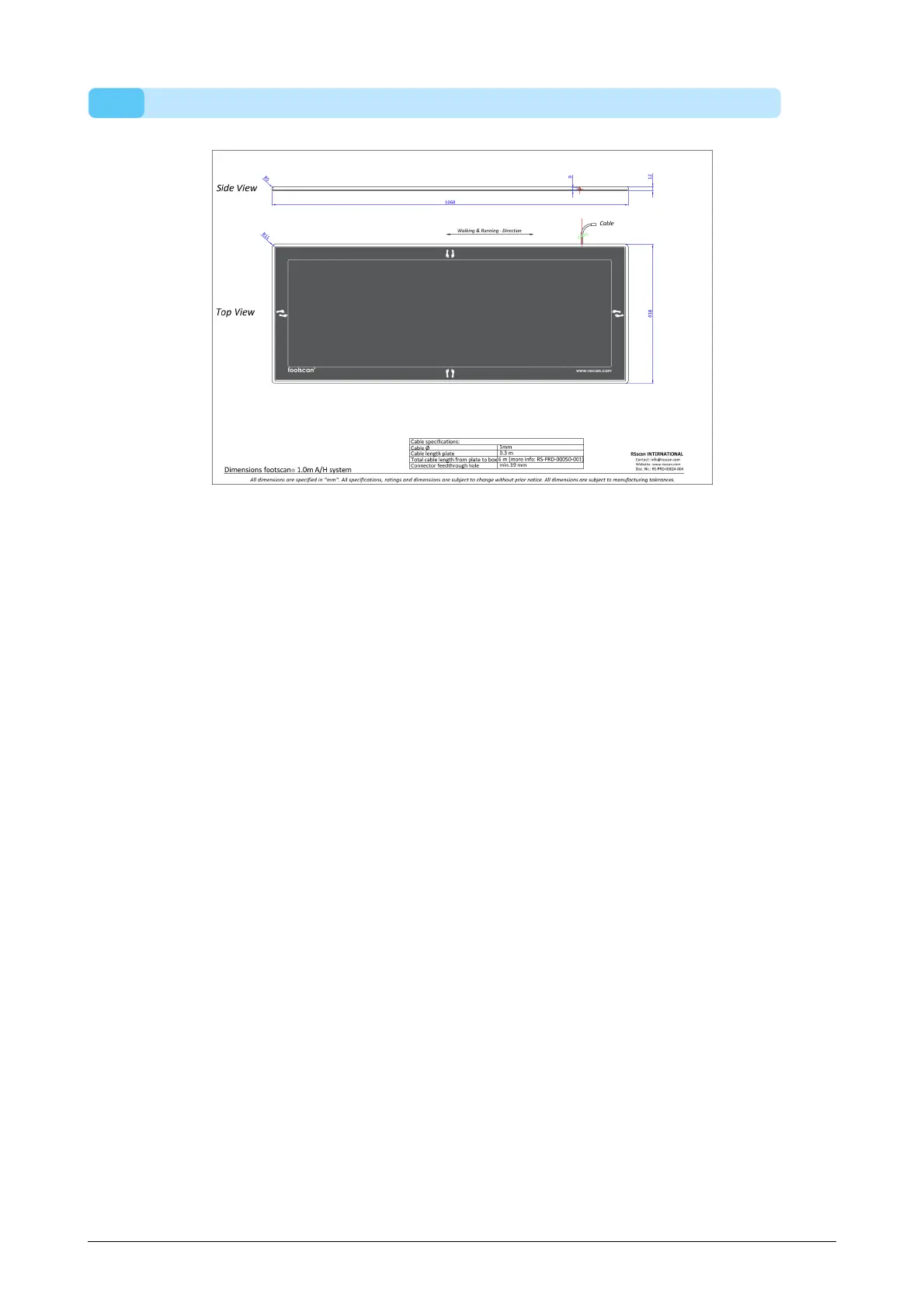

Figure 104: Dimensions 1m footscan plate for interface box
Dimensions (length x width x height)
1068mm x 418 mm x 12mm
Weight
7.7kg
Number of sensors
8192 (arranged in a 128x64 matrix)
Sensor dimensions
7.62mm x 5.08mm
Active sensor area
975mm x 325mm
Sensor technology
resistive
Pressure range
1-127
N
/
CM
2
Data acquisition frequency
250Hz
Operating temperature range
+15 °C to +30 °C
Storage temperature range
+0 °C to +40 °C
Relative humidity
20% to 80% non-condensing
Plate cable length
300mm ± 50mm (integrated cable)
Total cable length to footscan
interface box
6000mm ± 50mm
Protection class
I
IP code
IP40
®
