18.2 Entry Level 1m plate

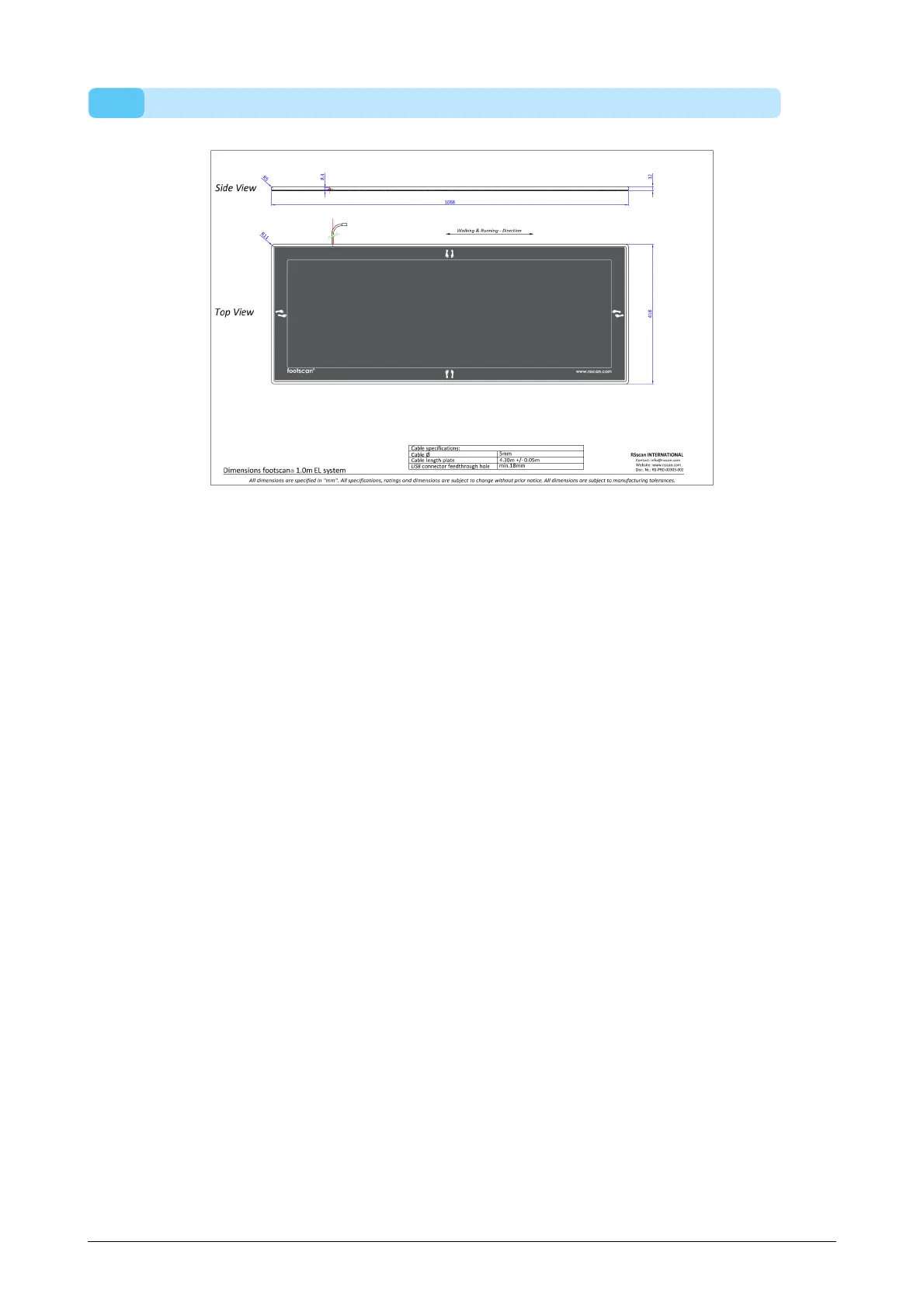

Figure 99: Dimensions entry level 1m plate
Dimensions (length x width x height)
1068mm x 418 mm x 12mm
Weight
8.3kg
Number of sensors
8192 (arranged in a 128x64 matrix)
Sensor dimensions
7.62mm x 5.08mm
Active sensor area
975mm x 325mm
Sensor technology
resistive
Pressure range
1-127
N
/
CM
2
Data acquisition frequency
200Hz
Resolution
10bits
Operating temperature range
+15 °C to +30 °C
Storage temperature range
+0 °C to +40 °C
Relative humidity
20% to 80% non-condensing
Connection to PC
USB2.0
Plate cable length
4300mm ± 50mm (integrated cable)
Power consumption
5V @ 500mA maximum
Protection class
I
IP code
IP40
