14 en | Cabling DBP Digital Beltpack
2021-06 | 01 | F.01U.380.825
Technical Manual
Bosch Security Systems, LLC
Notice!
It is possible to use PoE injectors on the end of a daisy chain to extend the number of DBPs
and cable lengths supported
Using more than 6 DBPs on the same 802.3at switch port may result in unreliable beltpack
operation.
To daisy chain belt backs together, do the following:
1. Connect one end of a CAT-5e cable from the PoE Out connector on one DBP belt pack.
2. Connect the other end of the CAT-5e cable to the PoE In connector on a second DBP
belt pack.
3. Connect one end of a second CAT-5e cable to the PoE Out connector on the second DBP
belt pack.
4. Connect the other end of the second CAT-5e cable to the PoE In connector on a third
DBP belt pack.
5. Repeat these steps to add additional belt packs to the daisy chain.

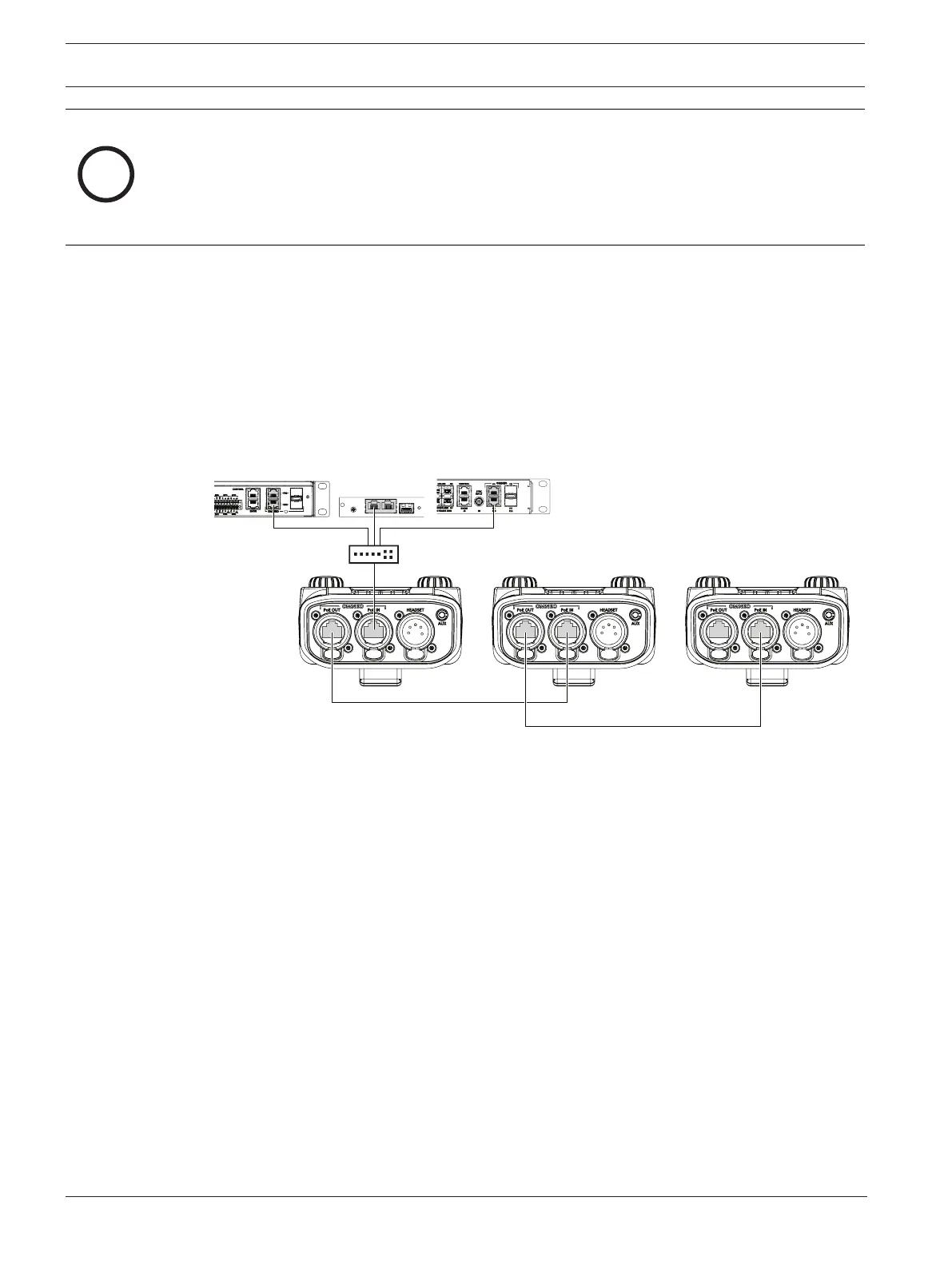

Figure4.1: Daisy Chain Example
