Notice!

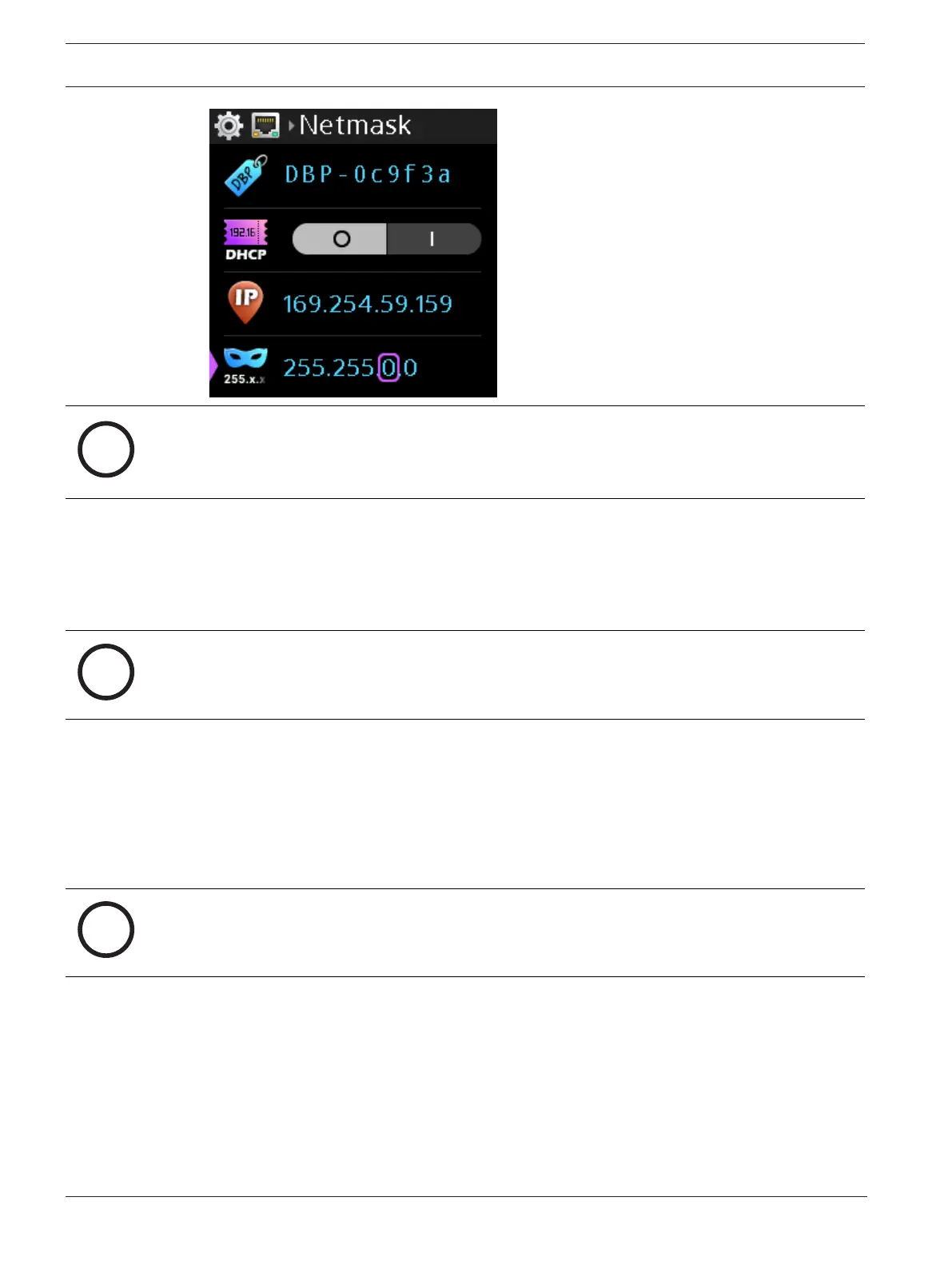

Navigation between octets is automatic depending on which way you rotate the shaft
encoder. Rotating the encoder counterclockwise expands the address range, while rotating
the encoder clockwise shrinks the address range.
3. Rotate either shaft encoder clockwise to expand the address range or counterclockwise
to shrink the address range.
Once the current octet reaches 255, the focus moves to the next octet.
4. Press the SEL/MENU button to confirm the change, or press the CLR/BACK button to
abort changes.
Notice!
Changes to this menu result in a device reboot.
9.1.5 Gateway
Use the Gateway menu item to configure the gateway address for the belt pack.
Validation on address fields occur when you try to save them. If an address is invalid, an error
prompt displays.
Notice!
Modifications to this field are allowed only when DHCP is disabled.
To configure the gateway address, do the following:
1. Navigate to the Gateway menu item (Setup | Network | Gateway).
2. Press the SEL/MENU button.
The first octet highlights.
