Sartorius Cubis Series User Manual

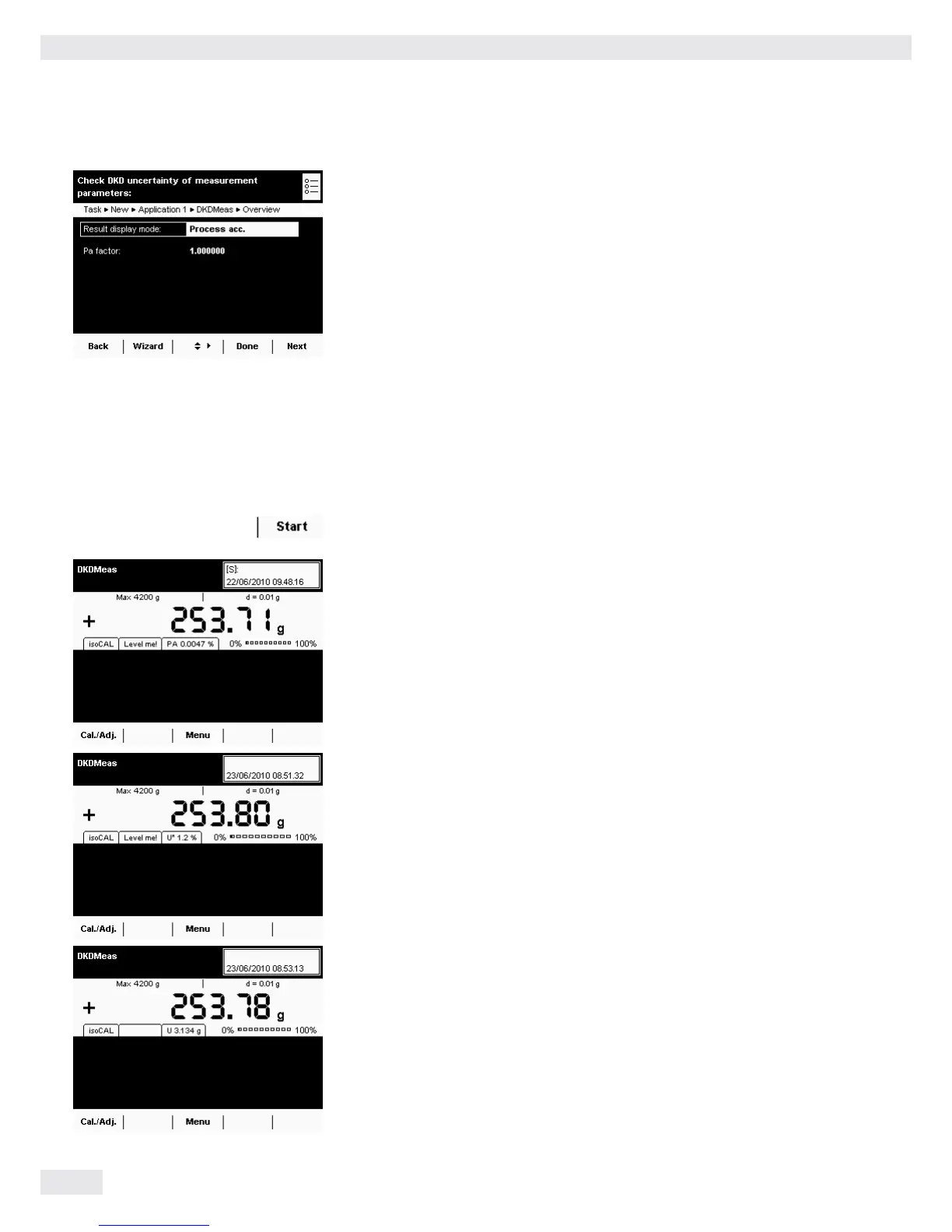

y An overview of all settings is displayed.
t Check all settings and change as required.
y A message asks whether you would like to add another application.
t If required, select additional applications to be combined.
y Now you will be prompted to configure the weighing and printing functions.
t Check all settings and change as required.
t Enter a short name and a description for the new task.
t To save the new task, select Save.
Executing a Task: DKD Measurement Uncertainty
D t If you haven’t already done so, go to Application Management.
y The task selection is displayed.
t Select the desired task.
or
t If the desired task is already marked, select Start.
y If you have selected absolute uncertainty, the uncertainty of the weight
value is displayed in a tab (e.g., U12.01 g). This value is based on the DKD
value set by a service technician.
y If you have selected relative uncertainty, the relative uncertainty
of the measurement is displayed in a tab as a percentage of the weight value.
y If you have selected process accuracy, the process accuracy is displayed
in a tab in percent.
DKD Measurement Uncertainty
102 Cubis MSU User Manual

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
