Sartorius Cubis Series User Manual

Checkweighing
Purpose: This application is used to check a weight value using preset control values.
Options: Control values can be exact target values or tolerance range limit values within
which the check value must lie.
The check results are shown on the display. They can also be used for further
electronic editing by activating the control ports at the data output.
Combination options: Totalizing, statistics, formulation, mass unit conversion, second tare memory,
individual identifiers (SQmin function, DKD measurement uncertainty)

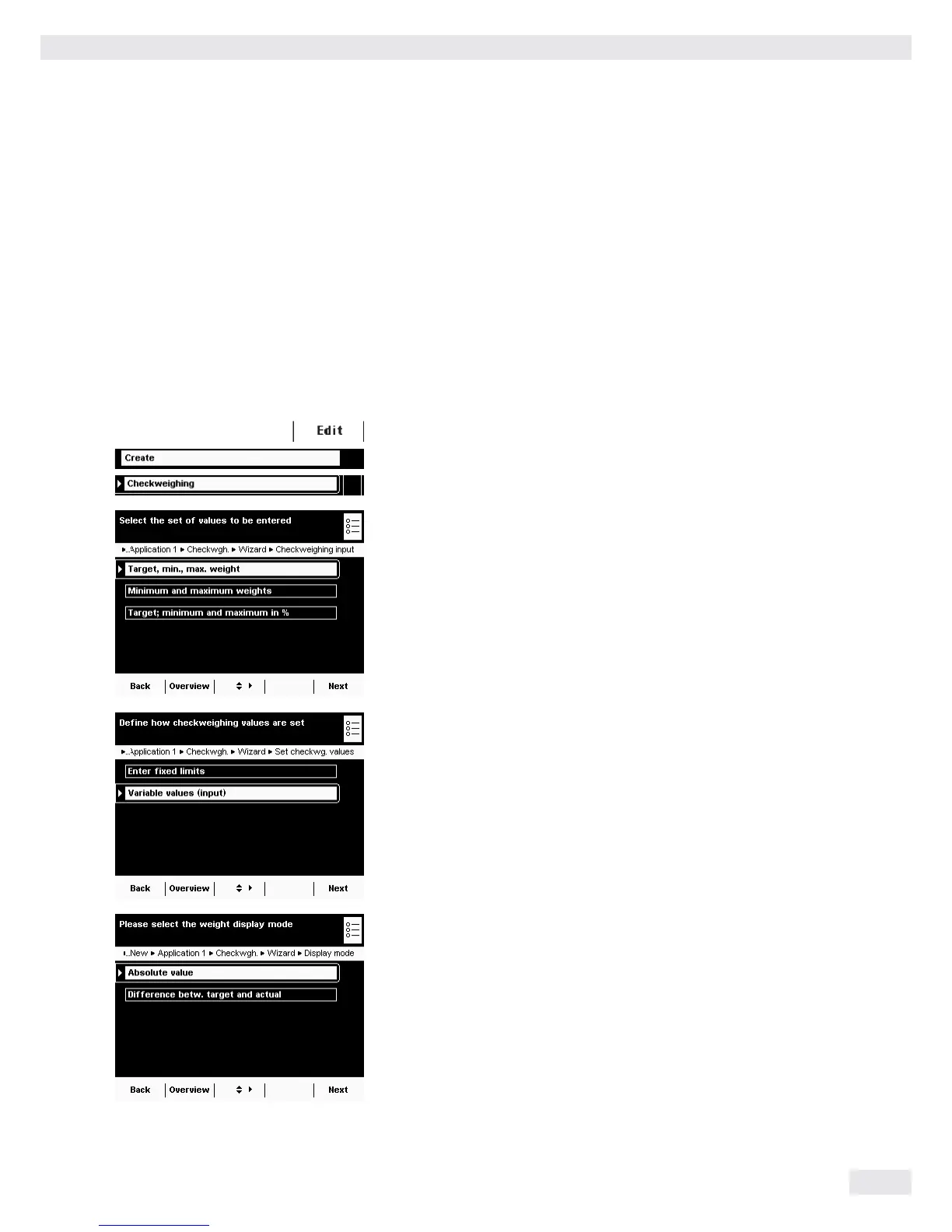

Configuring a Task: Checkweighing
D
t Define which values are to be used for checkweighing.
*Target, min., max. weight: The target value and a tolerance range in absolute
values
Minimum and maximum weights: Only a tolerance range in absolute values
Target; minimum and maximum in %: The target value and a tolerance range
as a percentage
t Define how the control values will be entered.
Enter fixed limits: You must enter these values now.
*Variable values (input): The check values can be entered now, but can still be
changed later when the task is carried out.
t Select the display mode for the results.
*Absolute value: Displays the absolute value.
Difference betw. target and actual: The deviation from the target value is
then displayed.
Checkweighing
Cubis MSU User Manual 109

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
