Sartorius Cubis Series User Manual

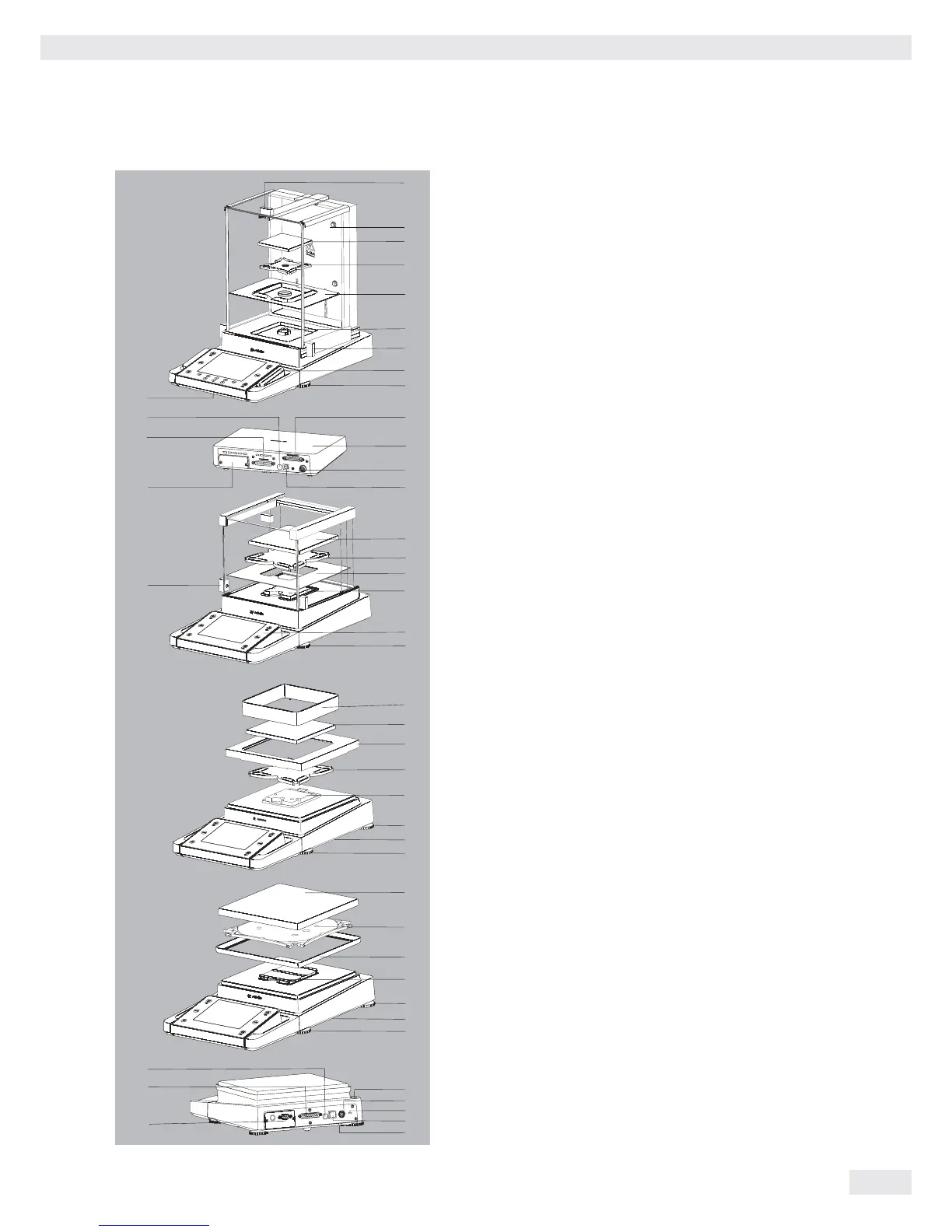

Overview of Equipment
Pos. Designation
1 Upper draft shield panel/handle
2 Rear panel
3 Weighing pan
4 Pan support (not for MSx225.../MSx125... models)
5 Shield plate
6 Pan retainer
7 Right sliding panel/handle
8 SD card slot (for MSU, MSA models)
9 Leveling foot
10 Display
11 Display and control unit
12 Draft shield/shield disk (only for models
with a readability of 1 mg and 10 mg)
13 Below-balance weighing port
(on the bottom of the balance)
14 Leveling foot
15 Level indicator
16 Power socket
17 Slot for attaching an anti-theft device
18 USB socket for a PC connection
19 Hook for below-cell weighing
20 Slot for optional interfaces, e.g., 9-pin data output
and PS2 (as shown) or Bluetooth
21 Communication port (PERIPHERALS) for accessories
22 Menu access switch
23 Left sliding panel/handle
24 Ethernet port
(on the bottom of the display and control unit)
25 Semi-microbalances: weigh cell socket
26 Semi-microbalances: electronics module
(for MSx225.../MSx125... models)
Cubis MSU User Manual 7
10
11
23
3
4
5
5
6
6
13
13
11
11
14
14
6
12
12
4
3
3
15
16
17
18
19
20
21
22
4
25
26
15
17
20
21
22
1
2
3
4
5
6
7
9
8
24
Overview of Equipment

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
