Sartorius Cubis Series User Manual

Interfaces
128 Cubis MSU User Manual

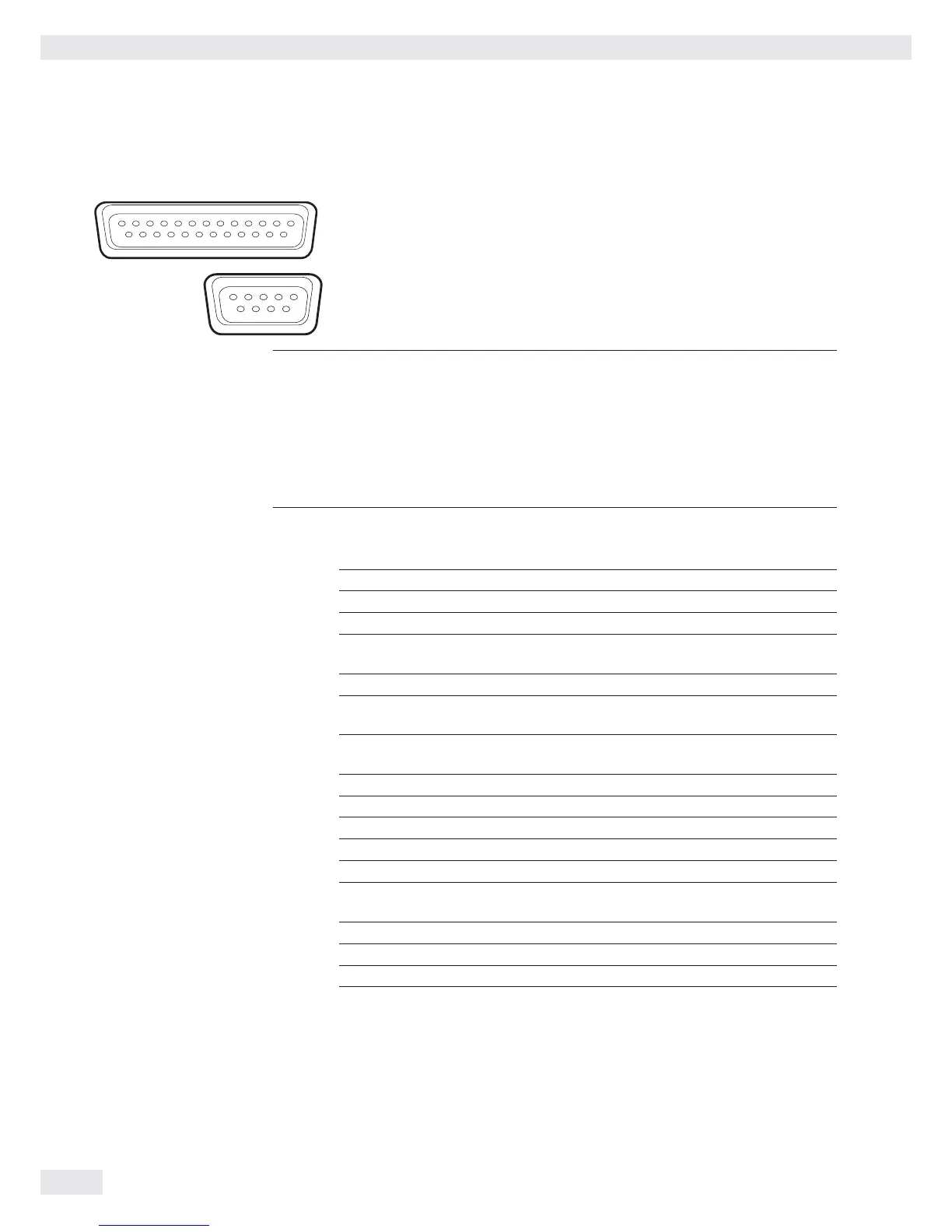

Interfaces (RS-232) 25-pin and 9-pin
The balance is standard-equipped with a 25-pin interface(peripheral port) where
different Sartorius peripheral devices can be connected, e.g., hand or foot switch.
This interface is also used for the control lines for the Checkweighing application.
A 9-pin interface can be optionally installed. This port is intended for
connecting a PC.
3
Warning When Using Pre-wired RS-232 Connecting Cables for the 25-pin
Interface:
RS-232 cables purchased from other manufacturers often have incorrect pin assign-
ments for use with Sartorius devices. Failure to do so may damage or destroy your
weighing system and/or peripheral devices!
t Be sure to check the pin assignments before you connect cables purchased
from other manufacturers.
t Disconnect any lines assigned differently (e.g., Pin 6).
Features (* = factory settings)
Type of interface: Serial port
Interface operating mode: Full duplex
Level: RS-232
Interface connector: D-SUB connector, 25-pin or 9-pin
Transmission rate: 600, 1200, 2400, 4800, *9600, and
19200 baud (selectable)
Parity: *Even, odd, none; blank spaces (selectable)
Character transmission: Start bit, 7/8* bit ASCII, parity, *1 or 2stop bits
(selectable)
Handshake (selectable): 25-pin For 2-wire interface: Software (XON/XOFF)
For 4-wire interface: *Hardware (CTS/DTR)
9-pin Hardware (CTS/RTS)
Operating mode: *SBI, xBPI, printer, SICS, 2nd display
Manual print mode: Without stability, *after stability
Auto print mode: *Without stability, at stability, after load change
Cancel automatic printing: Not possible
Time-dependent automatic
printout: After 1 display update
Data output of balance: 16 or *22 characters
Tare after individual printout: Off
Basic values, application: Off
Connectable Peripherals The following devices can be ported to the interface:
– Verifiable data printer YDP03-0CE, YDP10-0CE, YDP20-0CE
– Verifiable data printer with Bluetooth data transmission YDP10BT-0CE
(module required)
– Universal (serial printer)
– Strip/label printer YDP04IS-OCEUV
– Hand switch YHS01
– Foot switch YFS01, YPE01RC
– External control display YRD11Z
– Second display YRD03Z
9
15
6
1
14
13
25

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
