Sartorius Cubis Series User Manual

Interfaces
Cubis MSU User Manual 127
t Open the setting for the USB serial port in the Windows
®
Control Panel:
– START > My Computer > Control Panel
– System > Hardware > Device Manager
t Open the Connections submenu.
t Double-click on USB Serial Port.
t Select Port Settings > Advanced.
Changing Latency Time t Open the settings for the USB serial port, following the above instructions.
t For a faster rate of communication, change the setting for the latency timer
to 1msec.
Plug & Play Mode in Autoprint (SBI) t Open the settings for the USB serial port, following the above instructions.
t Stop the Plug & Play mode from running.
Uninstalling the Driver
The software driver for the USB connection can be uninstalled with the Windows
®
Uninstaller.
PS2 Interfaces for Barcode Scanner or Keyboard
Via the PS2 port you can connect a barcode scanner or a PC keyboard to enter data
and operate the balance.
Installation The interface installation is described in the installation instructions supplied.
Connecting the Device t Plug the connector plug into the PS2 port on the balance.
y The input device is operational; no further settings are required.
Using the Input Device You can input entries directly via the keyboard or barcode scanner whenever
an input field is open on the display of the balance.

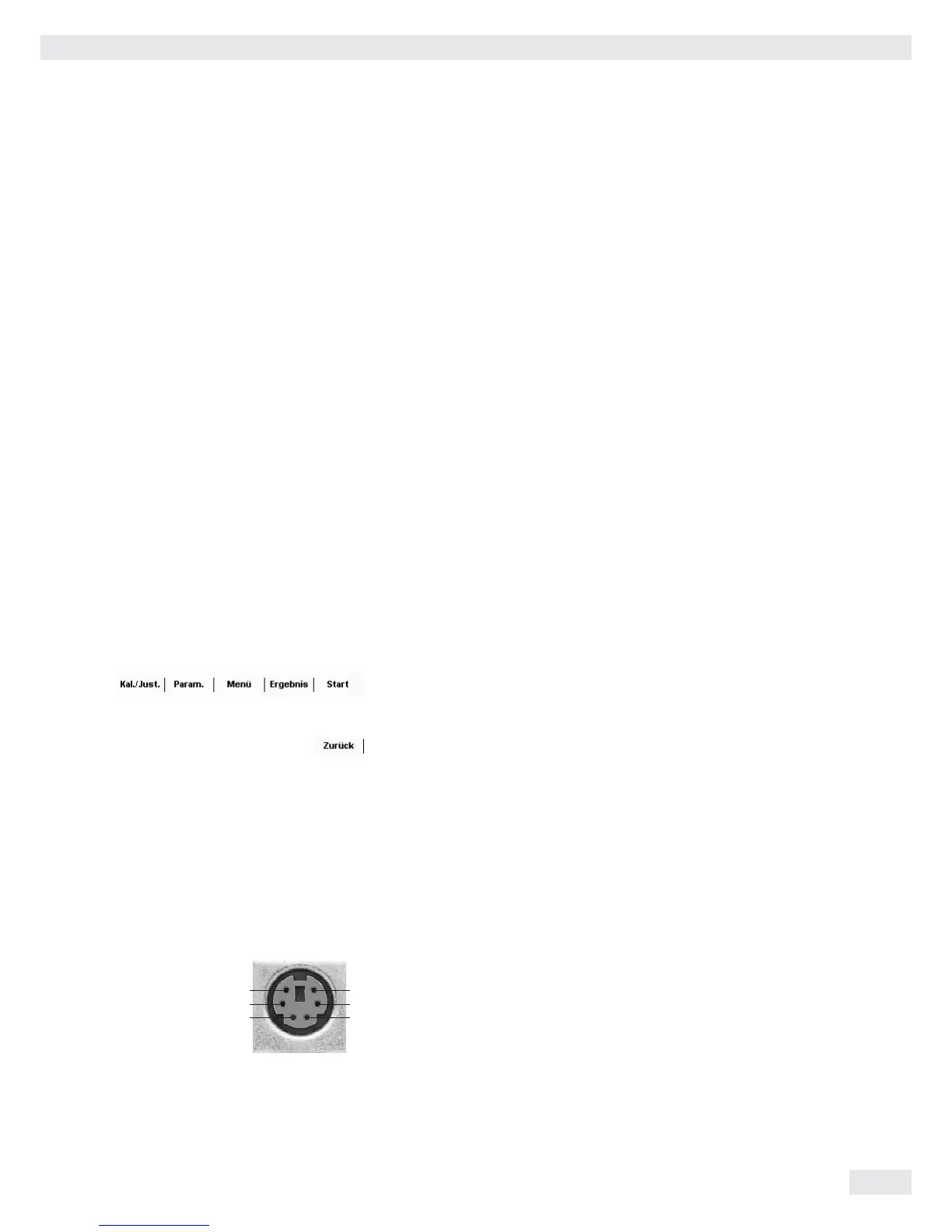

Key Assignment for the PC Keyboard
The five context-dependent buttons located at the bottom edge of the display are
operated via the Function keys F1 to F5 on the PC keyboard.
F1 F2 F3 F4 F5
If the last button on the right is assigned with the function
Back, this function can
also be activated using the Esckey on the keyboard.
Esc
D F9 The TASK key is operated via F9 (Open Task menu).
H F10 The USER key is operated via F10 (Open User menu).
p Print The PRINT key is operated via the print key on the keyboard.
Shift F1 Use ShiftF1 to select the first entry in a menu.
Shift F2 Use ShiftF2 to select the second entry in a menu.
etc.
Pin Assignment PS2
Pin 1: Keyboard_DATA (universal)
Pin 2: Not assigned (larger)
Pin 3: Internal ground (GND)
Pin 4: +5 V
Pin 5: Keyboard_CLK (Set)
Pin 6: Not assigned (smaller)
3
1
4
2
6
5

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
