Sartorius Cubis Series User Manual

Interfaces
134 Cubis MSU User Manual
Bluetooth
®
Interface (COM C, Optional)

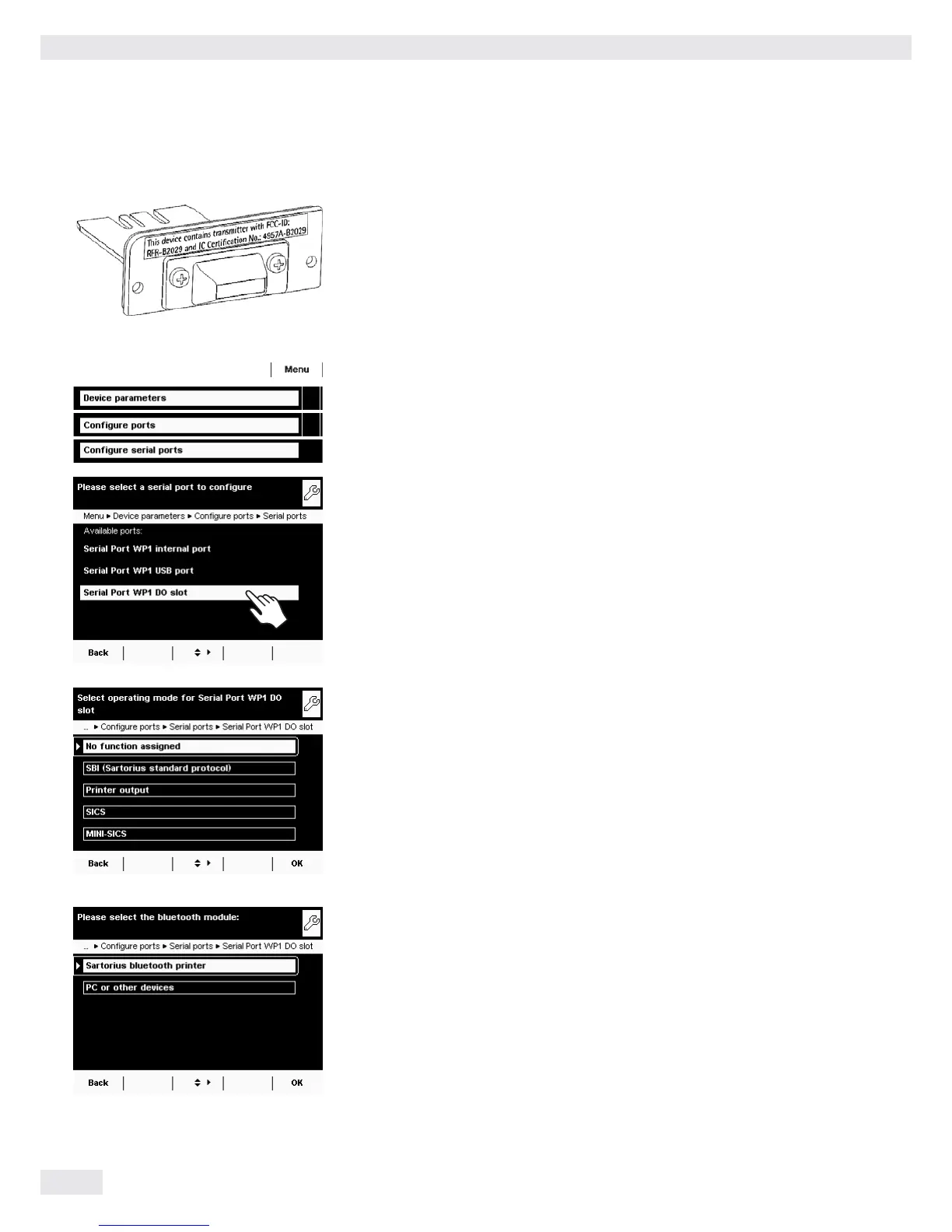

How to assemble the Bluetooth
®
module is described in the supplied installation
instructions.
In order to transmit data via the Bluetooth module, the interface must first
be configured.
Configuring the Bluetooth
®
Interface
t If appropriate, toggle to the System Settings menu.
t Select the Device parameterssubmenu.
t Select Configure ports.
t Open the Serial ports submenu.
t Select Available ports.
The following operating modes are available for this port:
– No function
– SBI (data exchange with PC or notebook)
– Printer output
– SICS protocol (data exchange with PC or notebook)
t Select the desired operating mode.
Bluetooth Printer Output Operating Mode
t If required, you can change the device name (only with Bluetooth modules
from Version 04-10-01).
t To connect a PC/notebook, select PC or other devices.

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
