Sartorius Cubis Series User Manual

Interfaces
136 Cubis MSU User Manual
Network Interface (Ethernet)
Purpose This interface lets you integrate your balance into a TCP/IP-based network.
System Requirements The person configuring the Ethernet interface should have basic knowledge of
TCP/IP-base networks and network technologies in general.
The Ethernet interface is connected to the local network via the RJ45 slot.
Features
Transfer rate: 10Mbs/sec (10BASE-T, Ethernet) and 100Mbs/sec
(100BASE-TX, Fast Ethernet), auto-recognition (10/100,
HalfDX/FullDX)
Connection type: Network protocol: ModBus/TCP
Transport: TCP/IP or UDP/IP
HMS certificates: Compatible with the ModBus TCP Standard of the
ModBus Organization, industry-compatible CE, UL, cUL
Cable: Twisted pair, shielded, CAT-5 or higher, 1:1, UTP / STP,
male connector RJ45; e.g., patch cable CAT5 depending
on application (straight/crossover)
Cable impedance: 150 ohm
Cable length to HUB: Max. 30 m
Connecting Network Cables

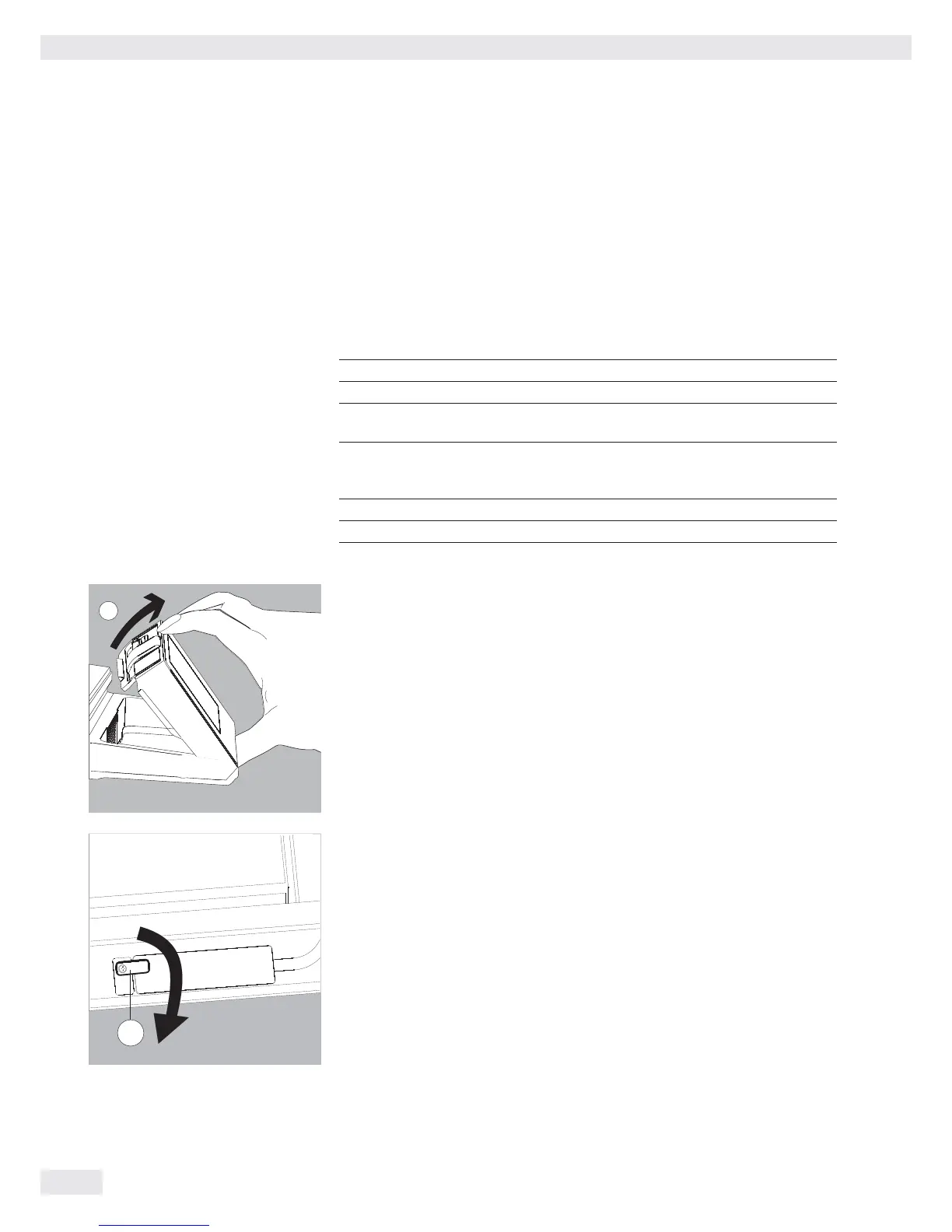

The slot for the network port is located at the back of the control unit.
t Tilt the control unit (1) until it is nearly vertical.
On the bottom panel of the display unit:
t Turn the locking lever (2) 90°.
2
1

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
