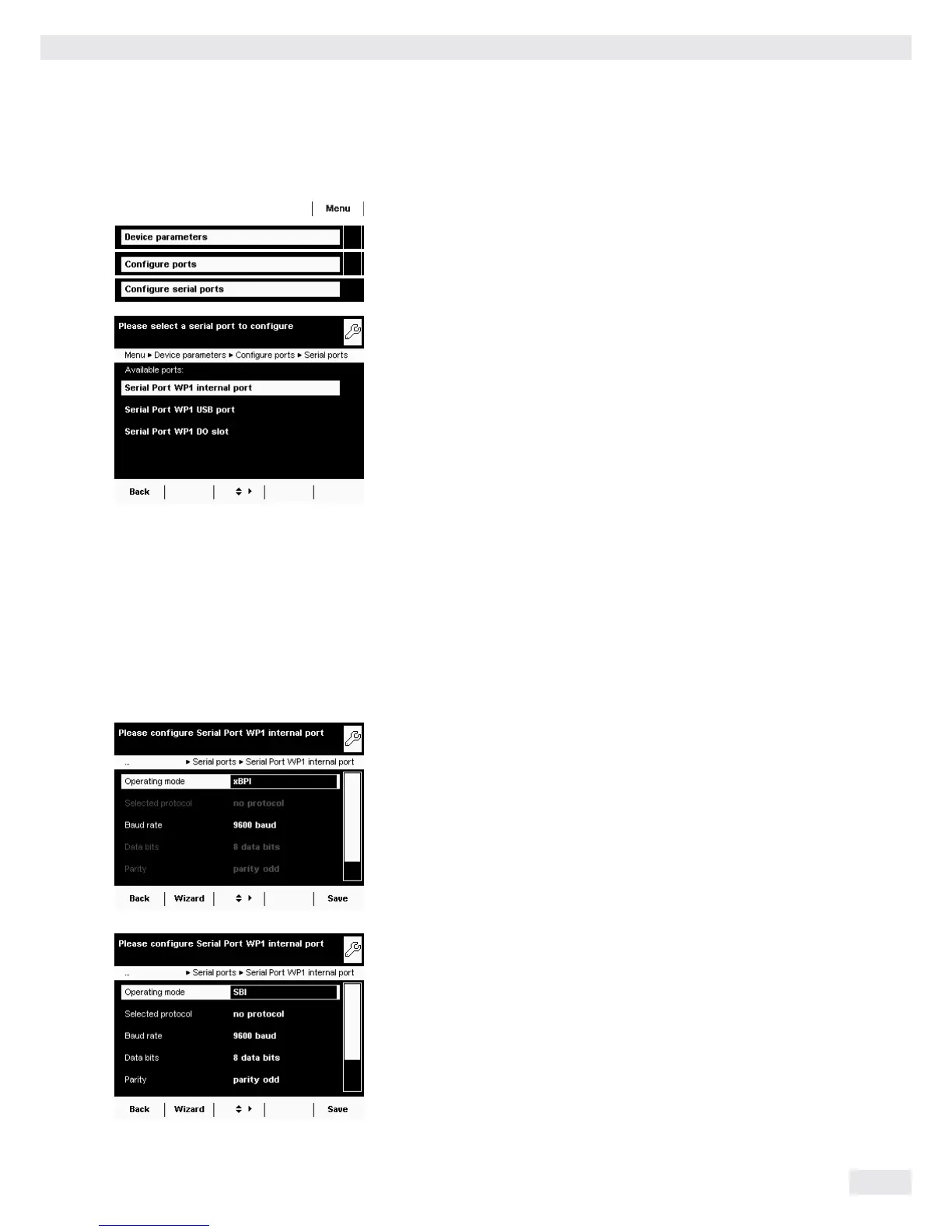

Configuring Serial Ports
y The available ports are displayed.
t Select the port you want to configure.
t Configure all settings for this port.
t To save the settings, select Save.
Configuration Options for the Serial Ports
The following operating modes are available for this port:
– No function; the interface is blocked
– xBPI
– SBI
– Second display (SBI)
– Printer output
–SICS
h
Factory settings are marked with an asterisk (*).
Configuration Options for xBPI Operating Mode
For this operating mode, you can only configure baud rate and number of stop bits.
– Selected protocol: No protocol (fixed setting)
– Baud rate: *
9600 to 115200 baud
– Data bits: 8 (fixed setting)
– Parity: Odd (fixed setting)
– Stop bits: *1 or 2 stop bits
Configuration Options for SBI Operating Mode and Second Display
You can change all settings for this operating mode.
– Selected protocol: No protocol / Software handshake XON; XOFF /
*Hardware handshake RTS; CTS
– Baud rate: 300 to 19200 baud (to 115200 baud for second display), *9600
– Data bits: 7 or *8
– Parity: None / *Odd / Even
– Stop bits: *1 or 2 stop bits
– Log data: *Turn off / Turn on

Sartorius Cubis Series Specifications

General

Display	Color touch screen
Readability	0.01 mg to 1 g
Interfaces	USB, Ethernet, RS-232
Calibration	Internal and external
Housing	Die-cast aluminum
Response Time	Varies by model
Pan Size	Varies by model
Operating Temperature	10°C to 30°C
Compliance	GLP
Power Supply	100 – 240 V, 50/60 Hz
Capacity	Varies by model (up to 64 kg)
Repeatability	Varies by model
Linearity	Varies by model
