Section 04 ENGINE (2-STROKE)

Subsection 07 (EXHAUST SYSTEM)

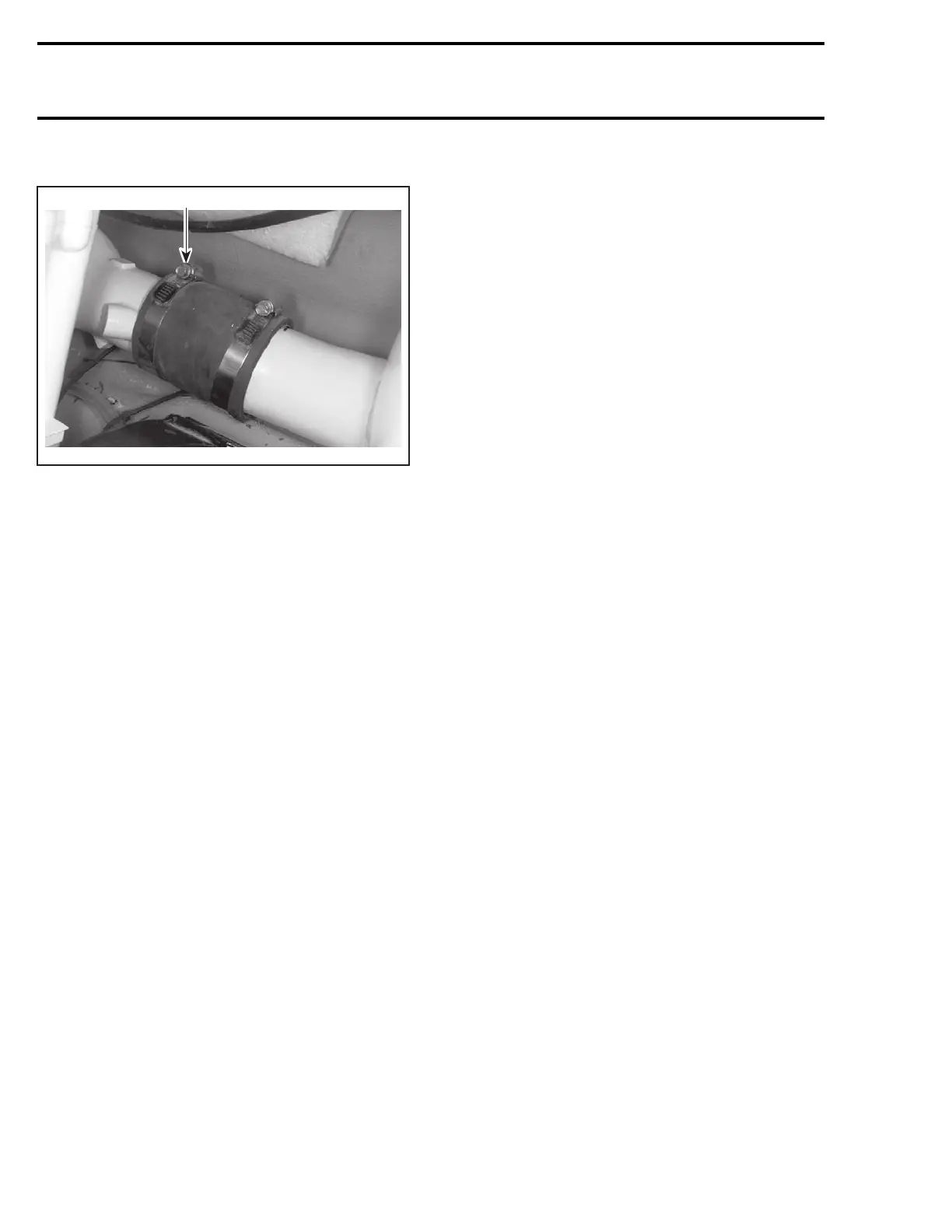

Install exhaust hose.

F06D14A

1. Torqueclampto4N•m(35lbf•in)

180 smr2004-Complete Line Up

www.SeaDooManuals.net
