SeaDoo GTX 4-TEC Supercharged User Manual

Section 05 ENGINE (4-TEC)
Subsection 02 (INTAKE SYSTEM)

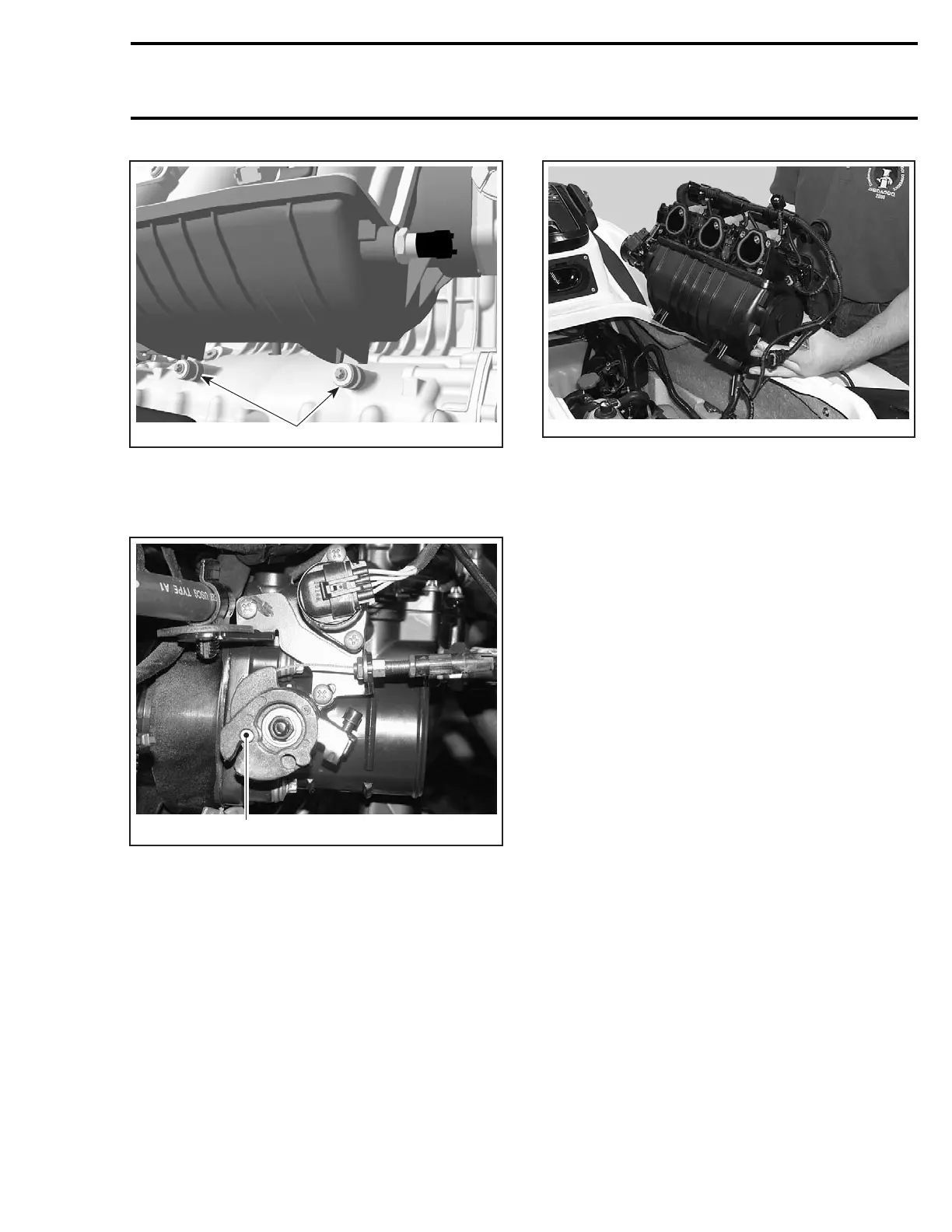

1
R1503motr61A
1. Mounting brackets
4-TEC NA Engines
Detach throttle cable end from throttle body.
F18D2XA
1
1. Detach cable end from throttle body
All 4-TEC Engines
Pull intake manifold out.
R1503motr77A
TYPICAL
NOTE: The flame arrester and the intercooler (if so
equipped) in the intake manifold are maintenance
free.
Supercharger
4-TEC Supercharged Engines
CAUTION: Be scrupulous when working on
supercharger parts. Supercharger rotation
reaches 40 000 RPM. Any modification, im-
proper repair/assembly or damage on the
parts, may result in damage of the supercharg-
er. Strictly follow the described procedures.
Remove seat.
GTX 4-TEC Series
Remove storage basket, vent tube and its support.
Refer to REMOVAL below.
RXP 4-TEC Series
Remove engine cover. Refer to HULL AND BODY.
All Models
Refer to EXHAUST SYSTEM section and remove
the following components.
– Cross-over hose from LH muffler.
– Detach exhaust pipe from exhaust manifold but
keep exhaust pipe coupled with LH muffler.
This will reduce exhaust pipe and muffler re-
alignment requirements at reinstallation.
– LH muffler strap and slide LH muffler and ex-
haust pipe altogether rearwards as far as possi-
ble.
Remove hoses from supercharger ports.
smr2004-Complete Line Up 197
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
