Section 05 ENGINE (4-TEC)
Subsection 02 (INTAKE SYSTEM)
1
R1503motr62A

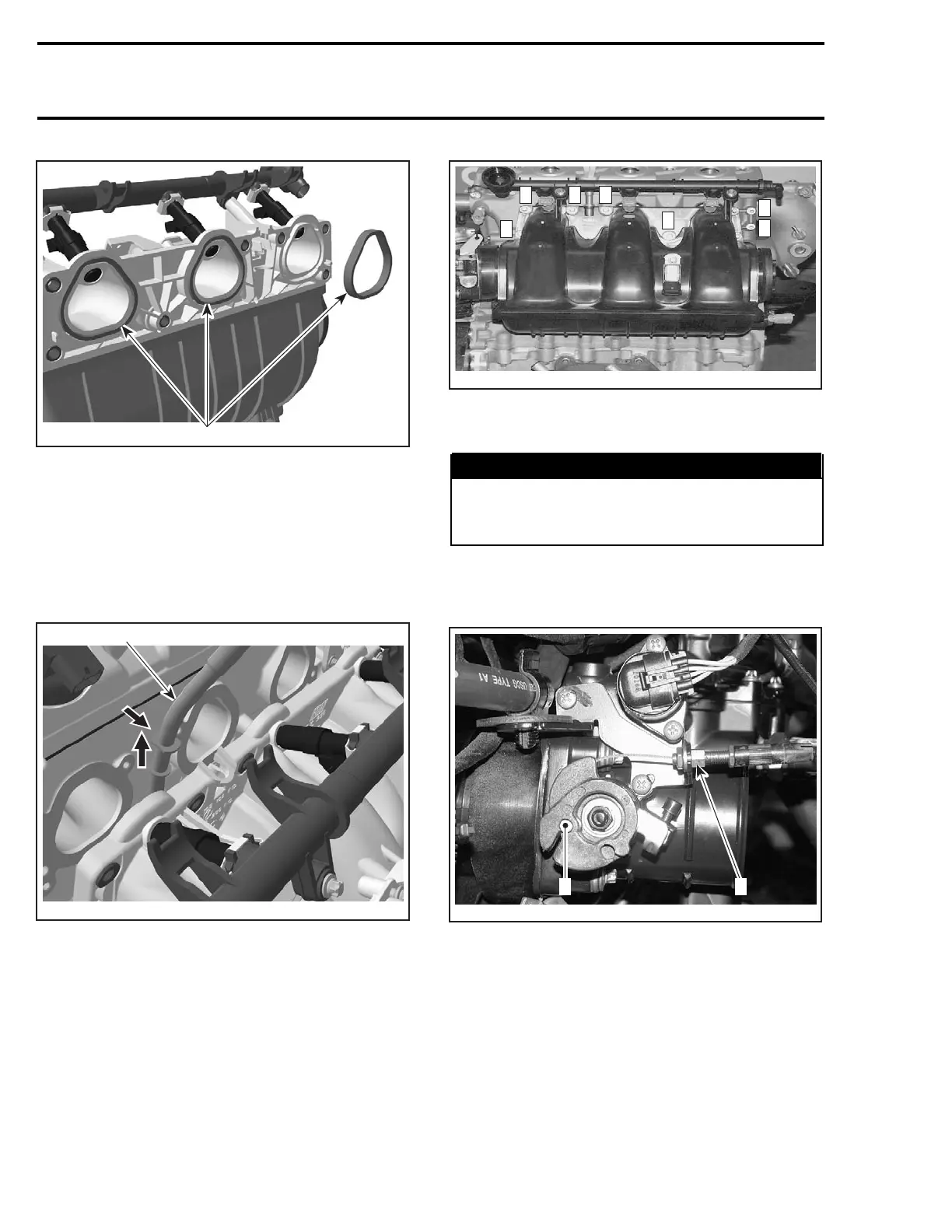

INTAKE MANIFOLD
1. Gaskets
First, position intake manifold on front mounting
bracketthenpushmanifoldtowardenginetothen
proceed with rear mounting bracket.
When installing the intake manifold, lift up the oil
dipstick tube a little bit to fit in the slot of the man-
ifold.
R1503motr59B
1
1. Oil dipstick tube
Apply Loctite 243 (blue) on the intake manifold
screws. Torque them to 10 N•m(89lbf•in)fol-
lowing the tightening sequence shown.
5
R1503motr210A
3 1
2
6
7
4
Ensure to properly route and resecure wiring har-
ness with locking ties.
WARNING
Always check O-ring for damage such as
deformation at reinstallation. Replace the
O-ring if it is damaged.
When installing throttle cable, ensure cable is in
the proper position of bracket and that cable barrel
is in the proper position of throttle cam.
F18D2XB
12
4-TEC NA ENGINES
1. Cable position in bracket
2. Cablebarrelpositionincam
