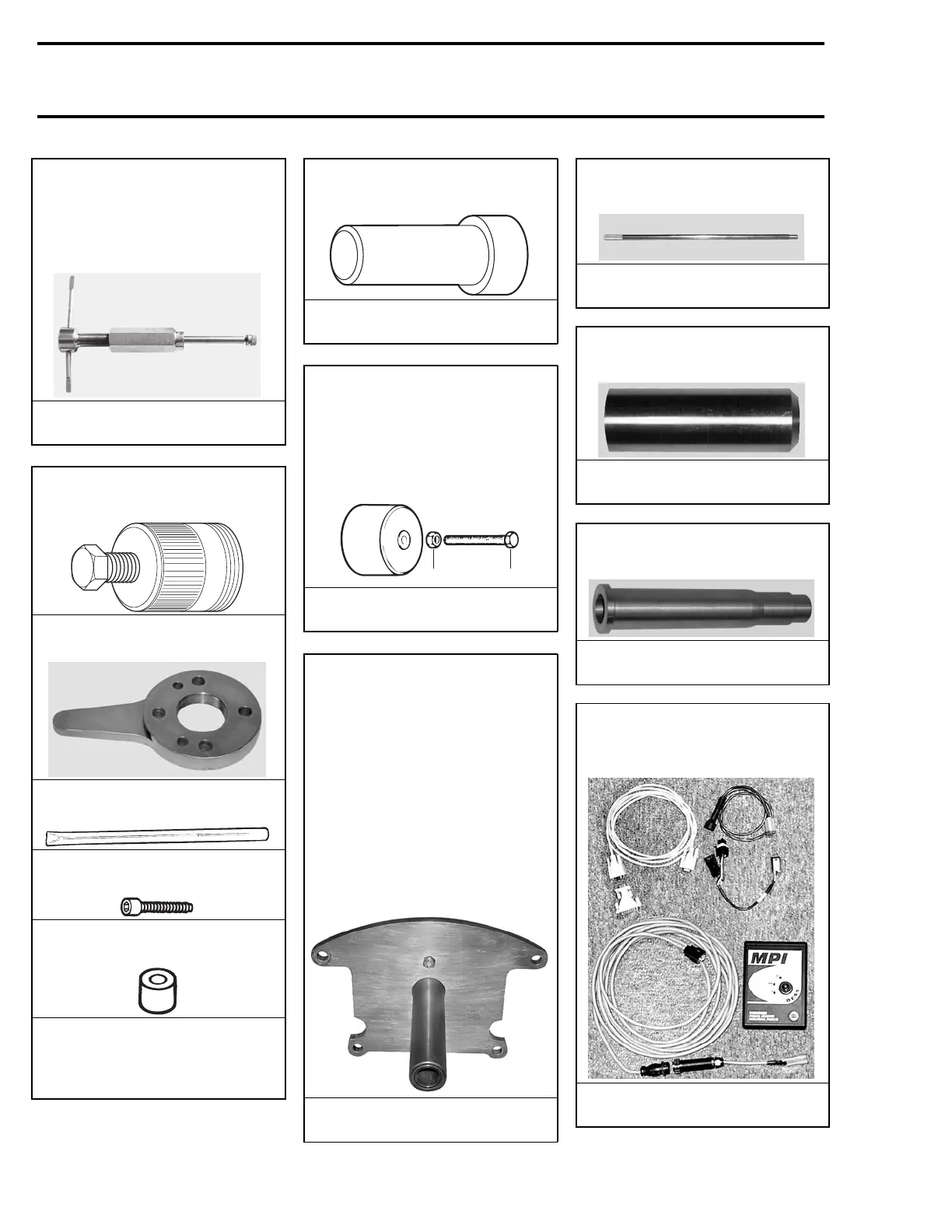

Section 01 SERVICE TOOLS AND PRODUCTS
Subsection 01 (MANDATORY SERVICE TOOLS )
Piston pin puller
(P/N 529 035 503)
Expansion sleeve
(P/N 295 000 117)
(787 RFI engines)
APPLICATION
All 2-stroke engines.
Puller
(P/N 529 035 547)
Puller plate
(P/N 520 035 533)
Extension handle
(P/N 295 000 125)
Screw M8 x 35 (3)
(P/N 420 841 591)
Sleeve (3)
(P/N 290 847 220)
APPLICATION
717 engines. Puller is also used
for PTO flywheel on 947 DI en-
gines.
Pusher
(P/N 420 876 605)
APPLICATION
717 engines.
Puller ass'y
(P/N 290 876 488)
1) Screw
(P/N 290 240 860)
2) Hexagonal nut
(P/N 290 242 210)
21
APPLICATION
717 and 787 RFI engines.
Alignment support plate kit
(P/N 529 035 506)
1) Alignment plates
(P/N 529 035 507)
2) Support
(P/N 529 035 511)
3) Screw (2)
(P/N 207 182 544)
4) Lock washer (2)
(P/N 234 181 601)
5) Flat washer (2)
(P/N 234 081 410)
APPLICATION
All models.
Alignment shaft
(P/N 295 000 141)
APPLICATION
All models.
Adapter
(P/N 529 035 590)
APPLICATION
XP DI models.
Alignment adaptor
(P/N 529 035 719)
APPLICATION
GTX 4-TEC models.
N–>
VCK
(Vehicle Communication Kit)
(P/N 529 035 981)
APPLICATION
All models.
