SeaDoo GTX 4-TEC Supercharged User Manual

Section 12 ELECTRICAL SYSTEM
Subsection 02 (CHARGING SYSTEM)

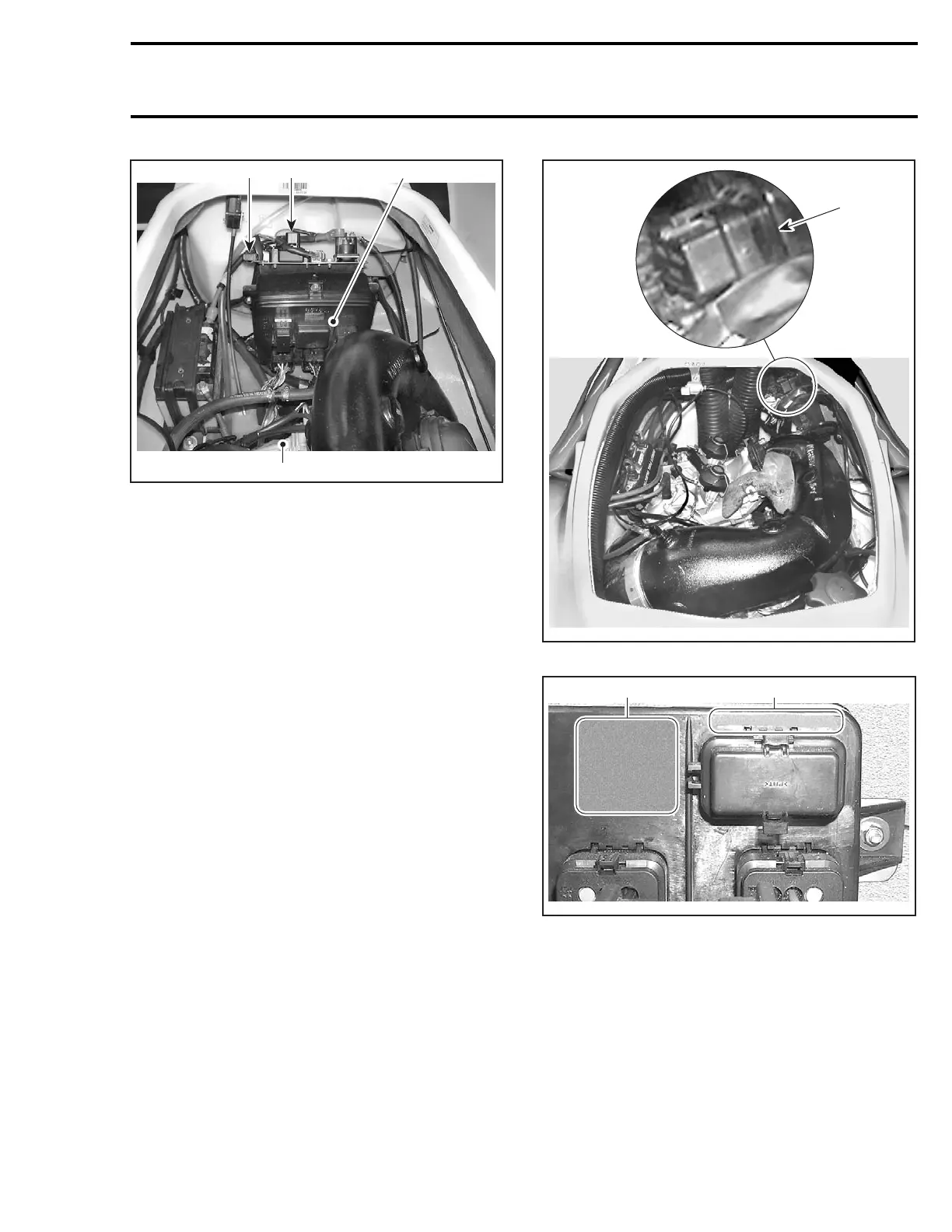

F17H06A
1
43
2
1. Engine
2. MPEM
3. Main fuse
4. Charging system fuse
DI Engines
The charging system is protected by 2 fuses.
A 25 A fuse is mounted on the MPEM and a 25 A
fuse is located in the rear electrical box on the
cut-off relay.
F08H0JA
1
1. MPEM
F1 : FP 15A
F2 : ACC 2A
F3 : REG 25A
F4 : VTS 7.5A
F5 : BAT 25A
F6 : INJ 15A
F1 F2 F3 F4 F5 F6
F18H06A
2
1
1. Fuse identification
2. Fuse description
REG: Regulator (charging system)
smr2004-Complete Line Up 561
www.SeaDooManuals.net

SeaDoo GTX 4-TEC Supercharged Specifications

General

Seating Capacity	3
Model	GTX 4-TEC Supercharged
Displacement	1494 cc
Manufacturer	Sea-Doo
Category	Personal Watercraft
Fuel Type	Unleaded gasoline
