Section 16 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)

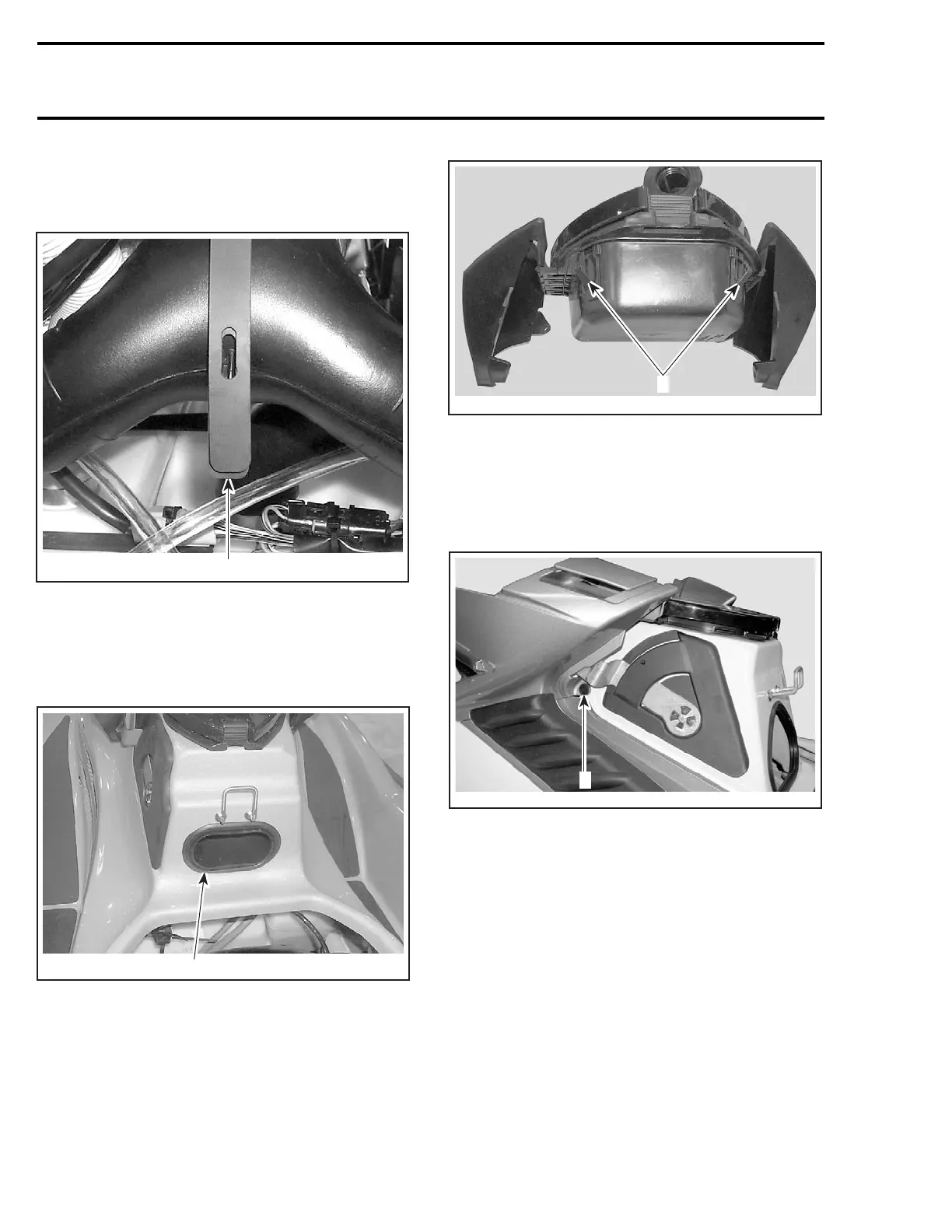

Open front storage cover and remove the access
panel.
Detach the latch retaining vent tube to bracket.
1
F17L0OA
1. Unlatch
Pull vent tube out.
From the engine compartment, insert a hand
through the vent tube hole and press glove box
lock tabs to release.
1
F16L0AA
1. Insert your hand here to release the lock tabs
From front storage compartment, pull glove box
out.
F16L0BA
1
1. Lock tabs
RXP 4-TEC Models
Place shift lever in forward position.
Remove seat.
Pull dart out. See illustration.
F19L16A
1
1. Pull dart out
Carefully pull the side molded part to release the
glove box. Pulling too much might lead to damag-
ing the part.
734 smr2004-Complete Line Up
