Sedecal SHF-310 - Page 229

HF Series Generators
Calibration
CA-1036R2
47
Illustration 2-4

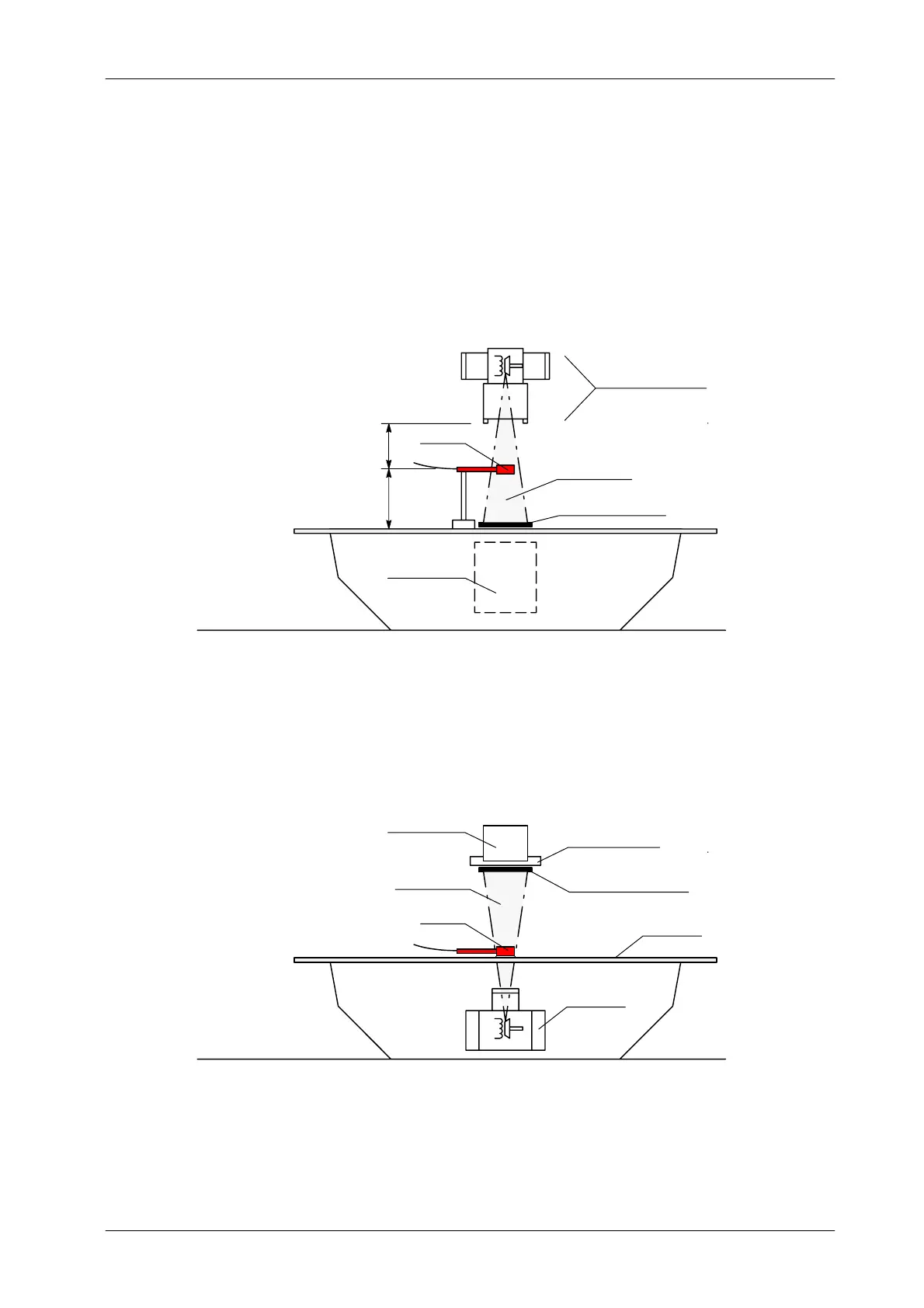

Fluoro Entrance Exposure Rate Test Set-up
OVERTABLE SOURCE
UNDERTABLE SOURCE
IMAGE SYSTEM
SPOT FILM DEVICE
LEAD APRON (BLOCKER)
TABLE TOP
DIAGNOSTIC
SOURCE
ASSEMBLY
DIAGNOSTIC SOURCE
ASSEMBLY
IMAGE SYSTEM
PROBE
PROBE
USEFUL BEAM
USEFUL BEAM
LEAD APRON (BLOCKER)
30 cm
(12”)
SET AS CLOSE
AS POSSIBLE
