HF Series Generators
Installation
IN-1052R0
5
SECTION 2 UNPACKING, POWER LINE CONNECTION
AND CABINET INSTALLATION
The Generator is shipped in one box to facilitate transport and installation.
Upon receipt of the X-ray unit and associated equipment, inspect all shipping
containers for signs of damage. If damage is found, immediately notify the
carrier or their r espective agent.
It is recommended to install the U-Arm Positioner before than
the Generator. (Refer to the Positioner Service Manual).
1. Open the shipping box. Take out the Control Console ( if provided),
Interconnection Cables, Cabinet Cover and other furnished parts. Do not
discard any packing material such as envelopes, boxes or bags until all
parts are accounted for as listed on the packing list.
2. Remove the packing material from the pallet.
3. Remove the Generator Cabinet from the shipping pallet, placing it near
its chosen room position. This operation requires at least two people.
4. When the equipment is unpacked, verify that all items on the customer
order are present, and the hardware and internal wiring is secure.
5. Check the part numbers / serial numbers of each component with its
identification labels, and inspect all pieces for visible damage. If any
damaged parts are found, repair or order replacements to prevent
unnecessary delay in installation.

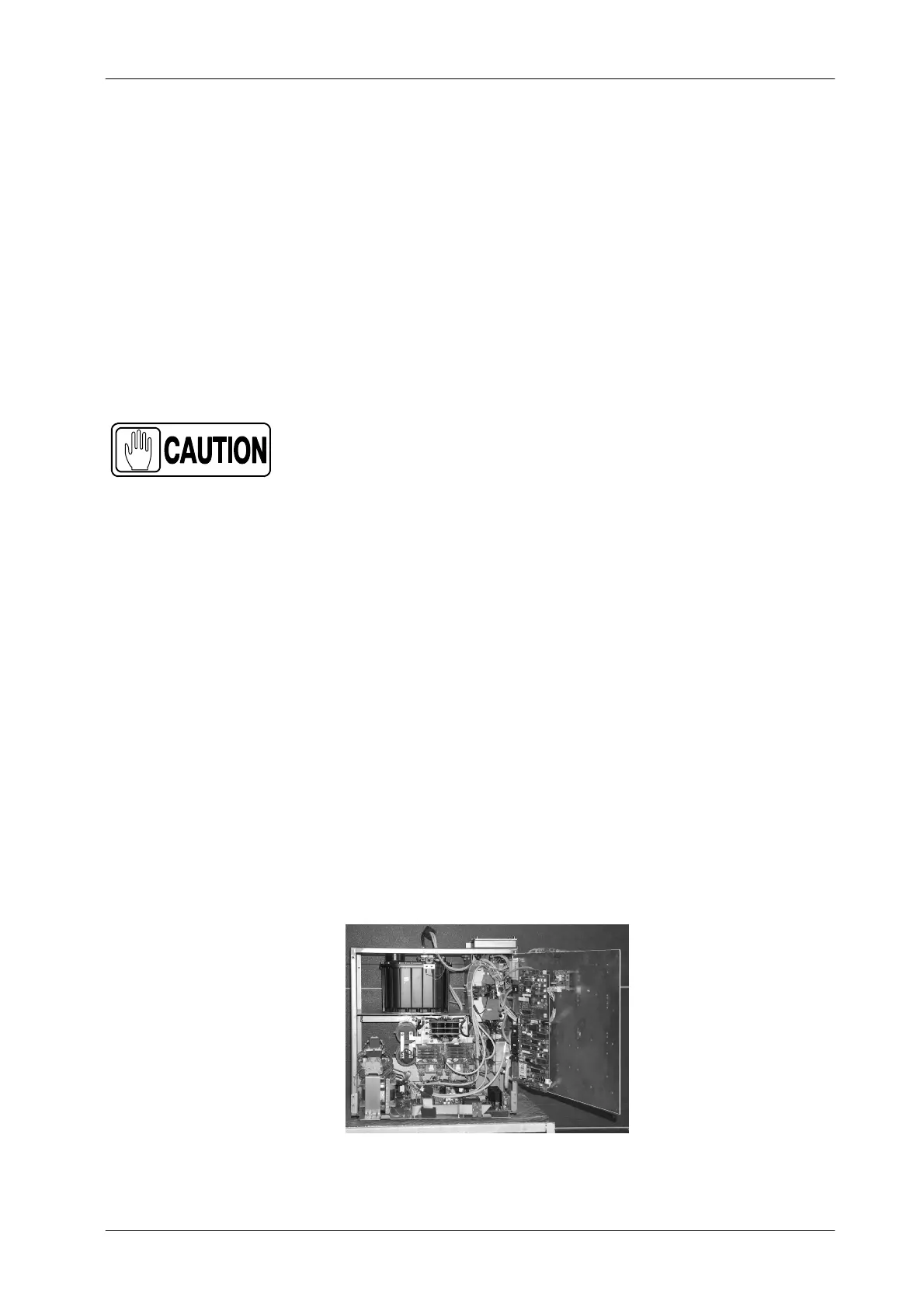

Illustration 2-1
Compact Generators
To Next Page
