HF Series Generators
Installation
IN-1052R0
17
3. For Generators with the Low or High Speed Starter located on a shelf
(Module 10 or 11), Stator and Interconnections Cables have to be routed
internally through the Cabinet close to the HV Transformer.

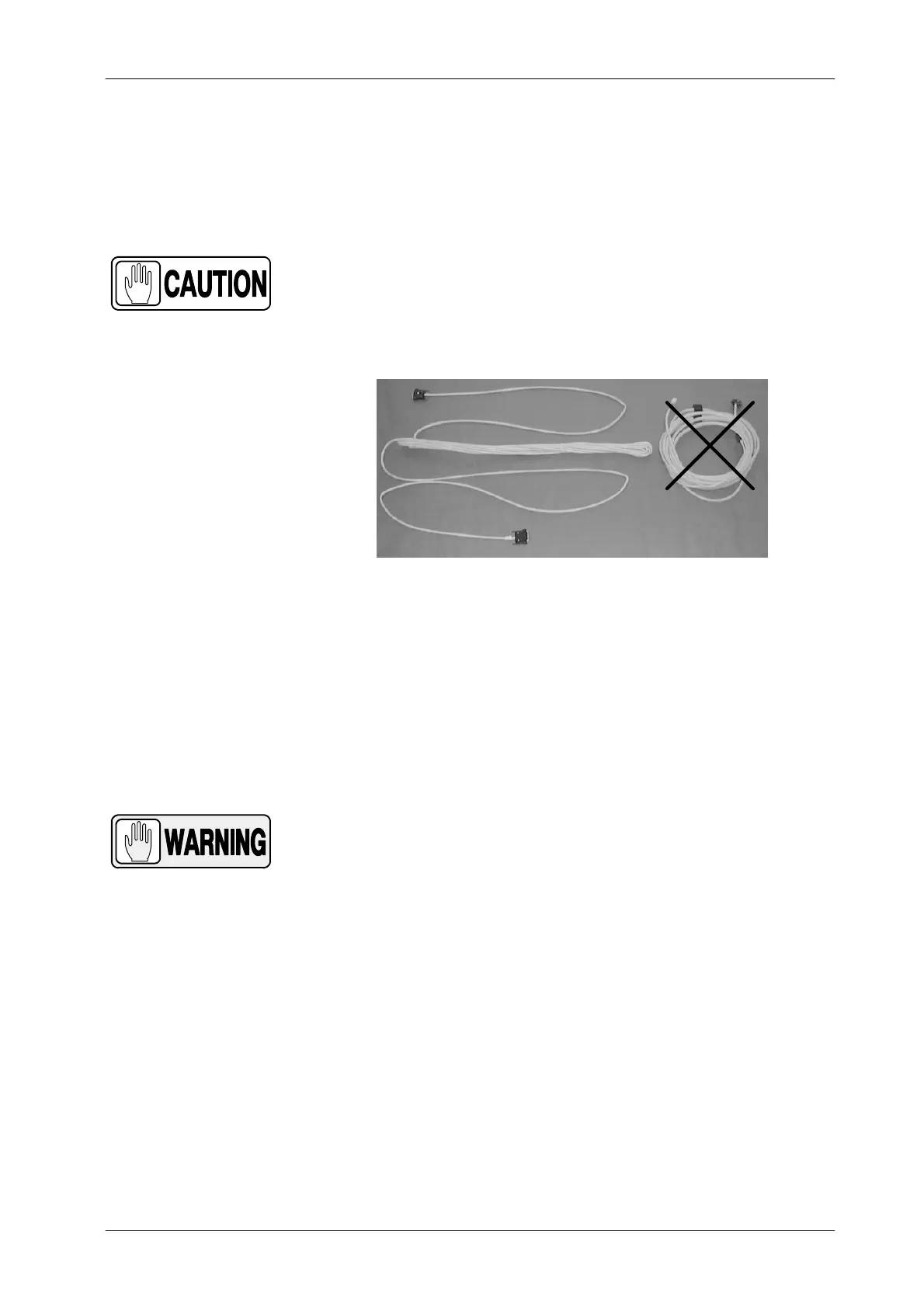

In order to avoid signal interferences, it is strongly
recommended to fold and fasten close to the Generator
Cabinet the portion of cables not routed (see picture below).
Never wrap in circles.
YES NO
4. Connect all cables as indicated in Section 3 “Cable Connections”.
5. Secure all cables to the Fastening Bar using cable ties after all
cable / wire connections are complete.
3.2 HIGH VOLTAGE CABLES CONNECTION
FOR GENERATORS WITH A HV TRANSFORMER WITH
DOUBLE X-RAY TUBE RECEPTACLES (ANODE / CATHODE
TO CONNECT TWO TUBES): CONNECTIONS OF THE
FILAMENT LEADS “FIL-1 RTN” (J4-15) AND “FIL-2 RTN”
(J4-16) ON THE INTERFACE CONTROL BOARD HAVE BEEN
INVERTED. THESE CONNECTIONS ARE FACTORY SET.
(REFER TO SCHEMATIC 543020XX).
3.2.1 X-RAY TUBES WITH METALLIC INSERT ENVELOPE
In case of X-ray Tubes with a Metallic Insert Envelope, it is required to connect
the wire from the Metallic Insert Envelope to the Black Banana Plug connection
on the HV Transformer to obtain a correct mA measures. For these X-ray Tubes
the part number of the HV Transformer has to be coded in revision A or higher
(a.e. A6094--16A). (Refer to Section 5.2 -- Map 54302035).
