HF Series Generators
Installation
IN-1052R0
18
3.2.2 HIGH VOLTAGE CABLES
Connect the HV Cables in the HV Transformer (Generator).
These cables must enter into the Generator through the cable outlet on the
upper side of the Cabinet and then attached to the fastening bar (upper rear bar)
of the Cabinet frame minding the upper cable outlet at the rear side of the
Cabinet cover.
The Terminal Pins of the High Voltage cables are extremely
delicate and easily damaged. Therefore they must be handled
carefully. Make sure that they are straight and that the splits
in the pins are open (parallel to sides).
1. The mounting accessories of each termination plug are factory
assembled. For extended information refer to the HV Cable
manufacturer’s instructions located inside the HV Cable package.
Do not install the Silicone washer supplied with the HV
Cables.

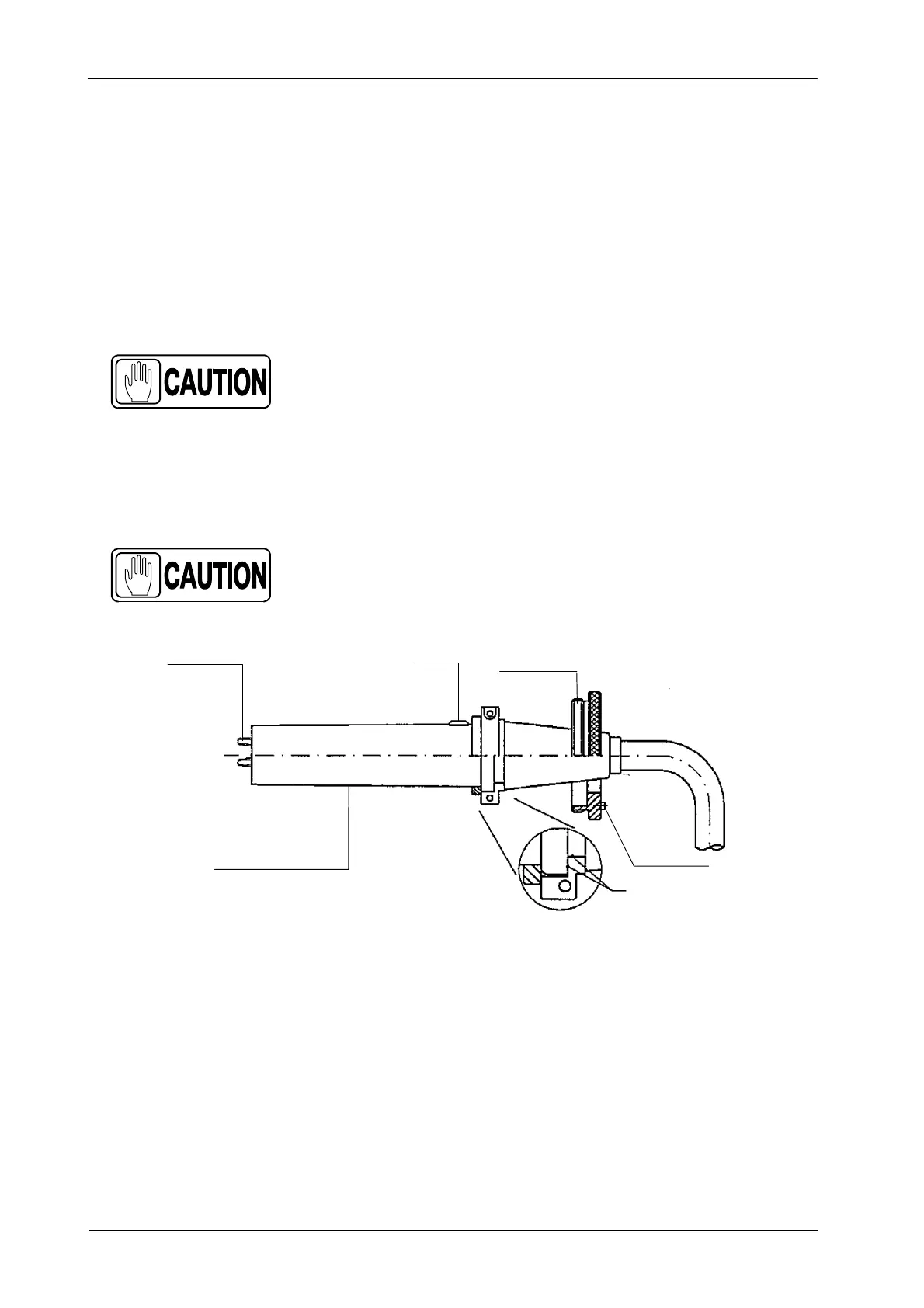

2. Unscrew the grub screw of the ring nut. (Refer to the illustration below.)
Contact
Contact Pins
Nipple
Ring Nut
Grub Screw
Termination Plug
3. Prepare the high voltage terminals that will be installed in the HV
Transformer. Put approximately 1 cm (0.5”) of HV Oil in the HV
Transformer receptacles (included in the HV cables package). If HV Oil
is not available, fill the receptacles using silicone paste provided with the
X-ray Tube.
4. Carefully insert the anode and cathode termination plug into the
respective receptacle socket (watch the nipple on the plug to ensure
correct positioning of the contact pins).
5. Hand tighten the ring nut. It must be secure. Tighten the grub screw.
