SEDECAL

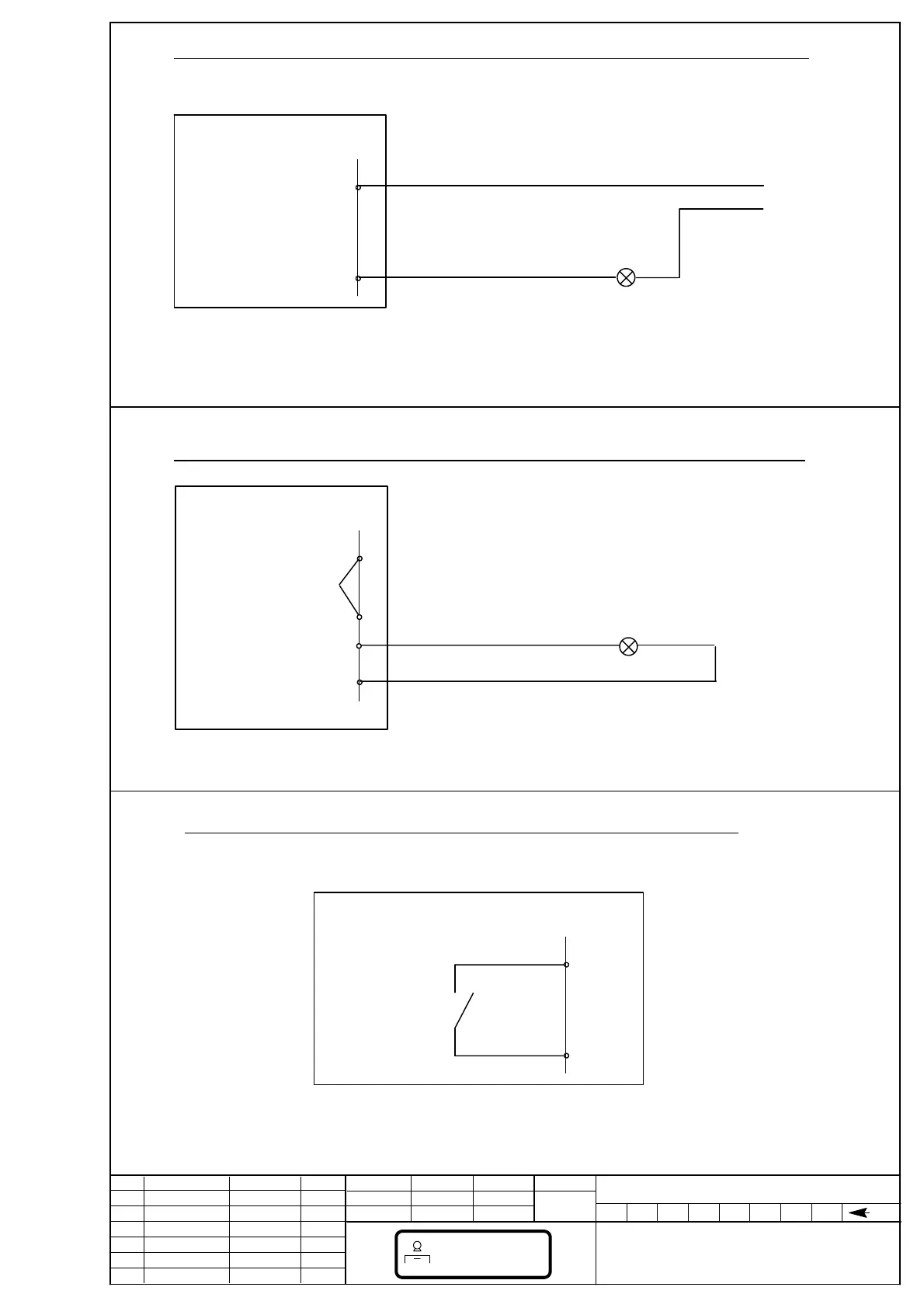

ROOM WARNING LIGHT INTERFACE
I/F--008
NAME DATE
DRAWING
REVISED
SHEET / OF
AREVBCDE
F. GARCIA 04/19/95
1/1
A. DIAZ 04/19/95
REV DESCRIPTION ISSUED BY DATE
INTERFAZ LAMPARA RAYOS--X SALA
EMC F. GARCIA 29/03/96A
TS1 changing F. GARCIA 24/05/96B
48
115 / 220 VA C
ROOM
WARNING
LIGHT
}
ROOM LIGHT SUP
POWER
MODULE
TS1
47
X--RAY ROOM
ROOM LIGHT SW
ROOM
WARNING
LIGHT
115 or 220 VAC SW
POWER
MODULE
TS1
*
X--RAY ROOM
0VAC
(in TS1-3 or TS1-10)
Interconnection 1.-- For Generator Interface with control relay and externally powered
Interconnection 2.-- For Generator Interface with control relay and internally powered
47
ROOM LIGHT SUP
add jumper
48
ROOM LIGHT SW
*
*
Select the power supply on TS1 according to the lamp voltage.
Add jumper to TS1-26 for 220 VAC or to TS1-27 for 115 VAC.
I/F changing F. GARCIA 05/05/99C
I/F update F. GARCIA 02/02/02D
48
ROOM LIGHT SUP
POWER
MODULE
TS1
47
ROOM LIGHT SW
Interconnection 3,-- Additional option to meet some Local Electrical Codes
Contact 7A 1/6HP
125, 250 V AC
3A 30 V DC
I/F update F. GARCIA 20/06/04E
