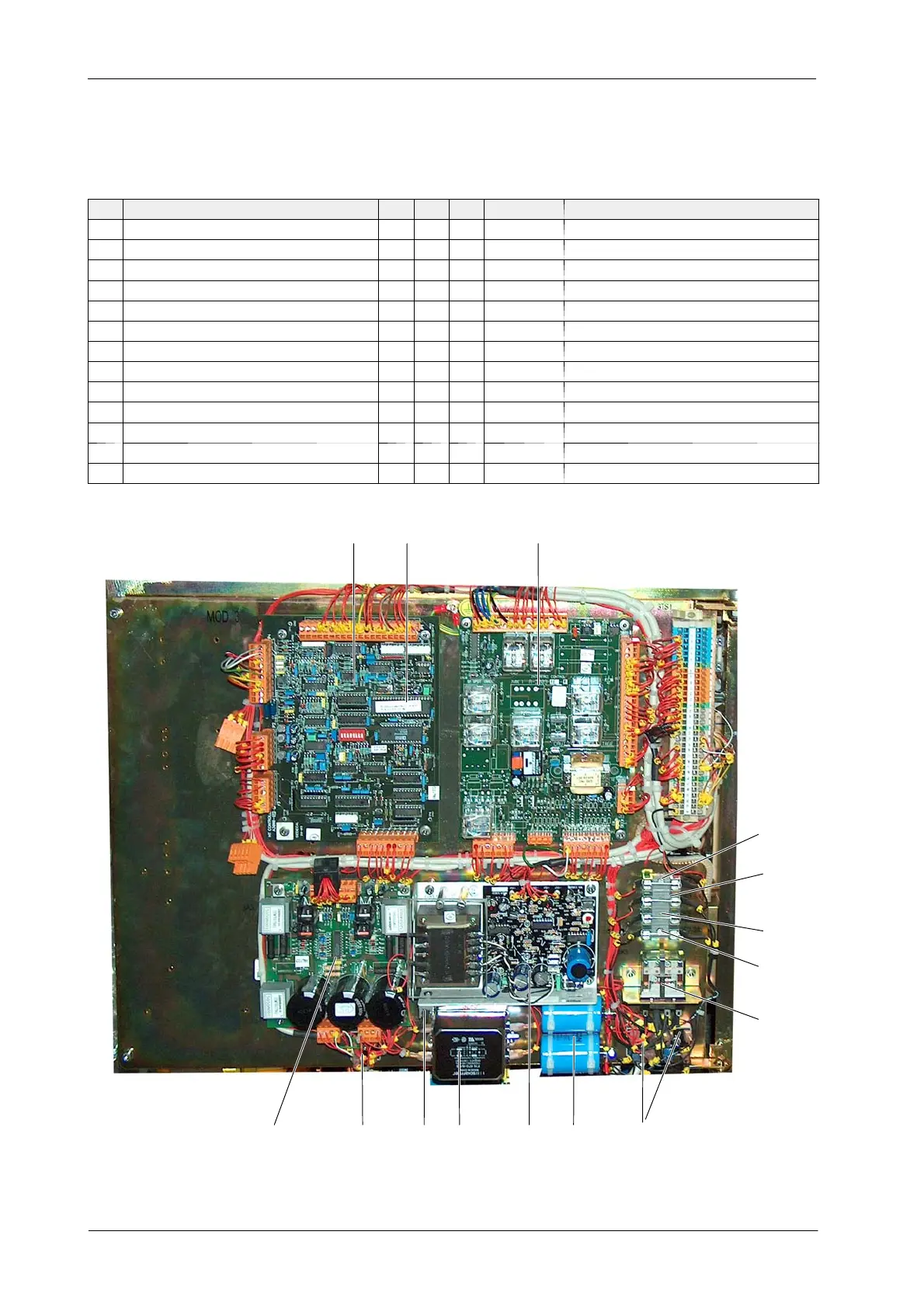

FRONT PANEL (MOD. 3)
Item Designation Qty FRU Rep Mfg. Ref. Remarks
FRONT PANEL (MOD. 3)
1 PCB, HT Controller 12 bits 1 1 Y A 3000--33
2 U5 EPROM for 50, 64, or 80 kW 1 2 N SOFT--HT It can not be ordered without Generator Serial Number
3 PCB, Interface Control Rad without HV. 1 1 Y A3009--11 For only Rad Generator
4 PCB, Filament Driver 1 1 Y A3004--05
5 Low Voltage Power Supply Unit 1 1 Y 53418001
6 Rectifier Bridge FAGOR / 10 A 3 2 N 53404002 BR1, BR2, BR4
7 Filter Line 1 2 N 50208001 LF3
8 ON/OFF Relay K3 / 4PDT /110V 1 2 N 51401012 K3
9 Capacitor ELE 2400 Micro/50V 2 2 N 54002007 C6, C7
10 Fuse F2 (1.5 A, 250 V) SB SeeFuseKit
11 Fuses F6, F7, F8 (3 A, 250 V) SB SeeFuseKit
12 Fuses F9 (0.4 A, 250 V) SB SeeFuseKit
4
11
10
11
11
8
697126
12 3
5
