HF Series Generators
Installation
IN-1052R0
23

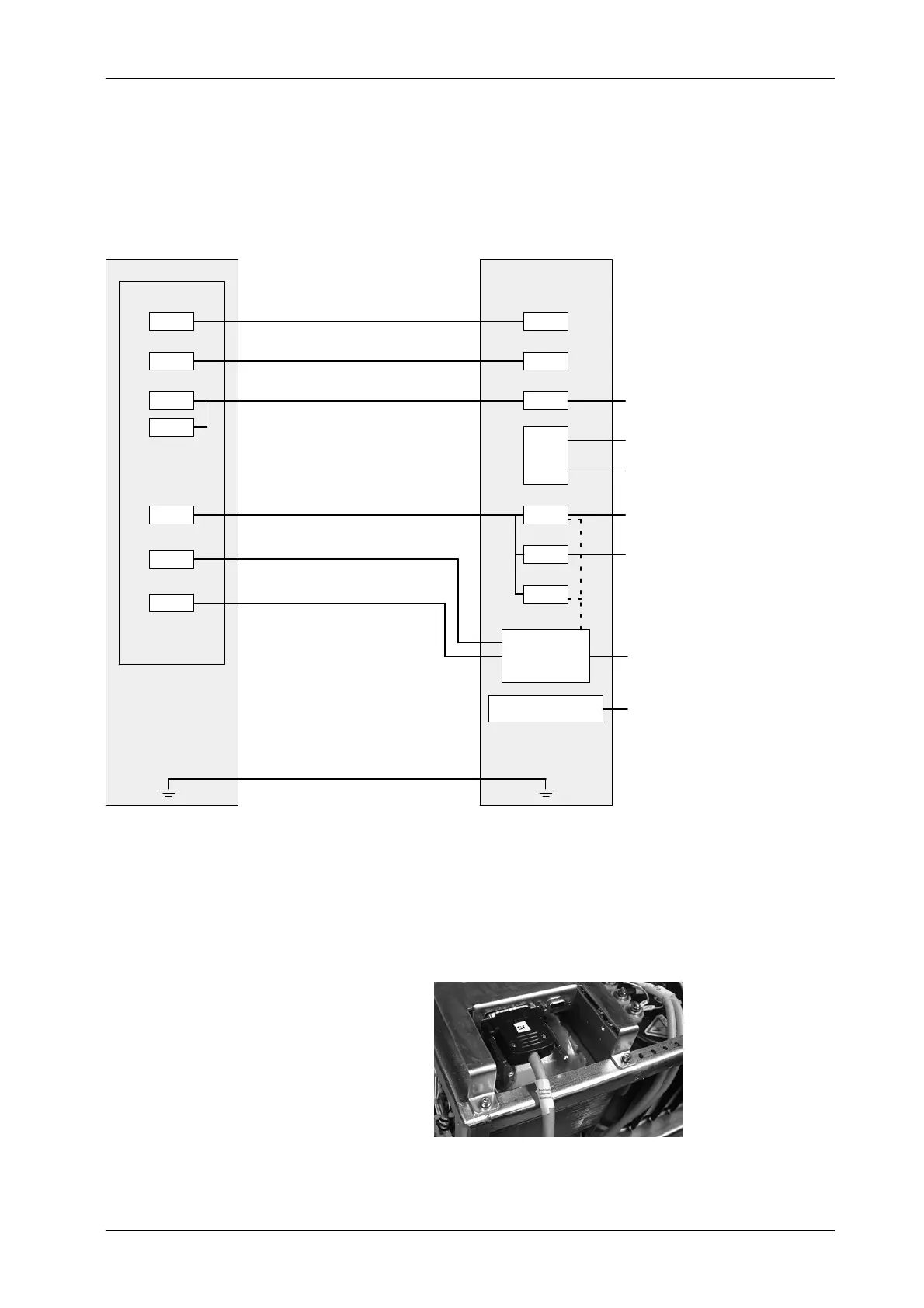

Illustration 3-2
Interconnection Cables
COMMUNICATION CABLE
J1
J3
J2
POWER CABLE
J2
J3
GENERATOR CABINET
INTERFACE CABLE
(factory supplied)
CABLES FROM BUCKY 1 & 2
(ONLY FOR SYSTEMS WITH 1 OR 2 BUCKY)
(field supplied)
L1/L2/L3/N/GND
STATOR, FAN & THERMOSTAT FROM TUBES
POWERLINE&GNDFOR
(field supplied)
(customer supplied)
GND CABLES
ATP CONSOLE CPU
J5
AEC INTERFACE CABLE
TS1
TS3
TS2
COMPATIBILITIES
ADAPTATIONS
(factory supplied)
(factory supplied)
(factory supplied)
(factory supplied)
J7 or J8
J14
SERIAL COMMUNICATION (factory supplied)
J13
TOMO INTERFACE CABLE (factory supplied)
LINE POWERED GENERATORS
ION CHAMBERS, TOMO DEVICES
(customer supplied)
BUCKY 3 & 4, IMAGE SYSTEMS
TS1
ROOM DOOR CABLE
ROOM LIGHT CABLE
(customer supplied)
(customer supplied)
J5
SERIAL COMMUNICATION
For Serial Generators (RS232 / RS422): Console CPUs are
located inside the Generator Cabinet and Interconnections are
factory made. Only one cable (serial communication) from J5 of
the Generator Cabinet should be connected to the Control Box, or
PC Interface Box, or Serial Console.
Note .
