Segway®PersonalTransporteri2,x2,x2TurfPartsReplacementGuide C‐1
C.Fasteners
FASTENERS
• Use only Segway-approved fasteners.
• Do not tighten or reuse any fastener except the screws used to attach the battery packs, wheel nuts, and
LeanSteer frame. Instead, when any other fastener is loose or removed, replace the fastener with a new
Segway-approved fastener. See Appendix C, ”Fasteners” for more information.
• Before using a fastener, make certain the fastener is the correct size and type with any necessary washer
and thread lock in place (see Table C- 1).
• Since the pre-applied thread lock compound is intended for single use only, reuse of fasteners is not
permitted with the exception of the wheel nuts, battery fasteners, and LeanSteer clamp bolt.
• Do not attempt to repair any stripped or damaged screw hole. Instead, replace the part. If replacement
part is not available, do not reassemble.
• Insert fasteners slowly and carefully. Do not cross-thread or over-tighten fasteners. Tighten only to the
prescribed torque.
• Failure to adhere to these warnings could lead to serious injury or death or damage to property.

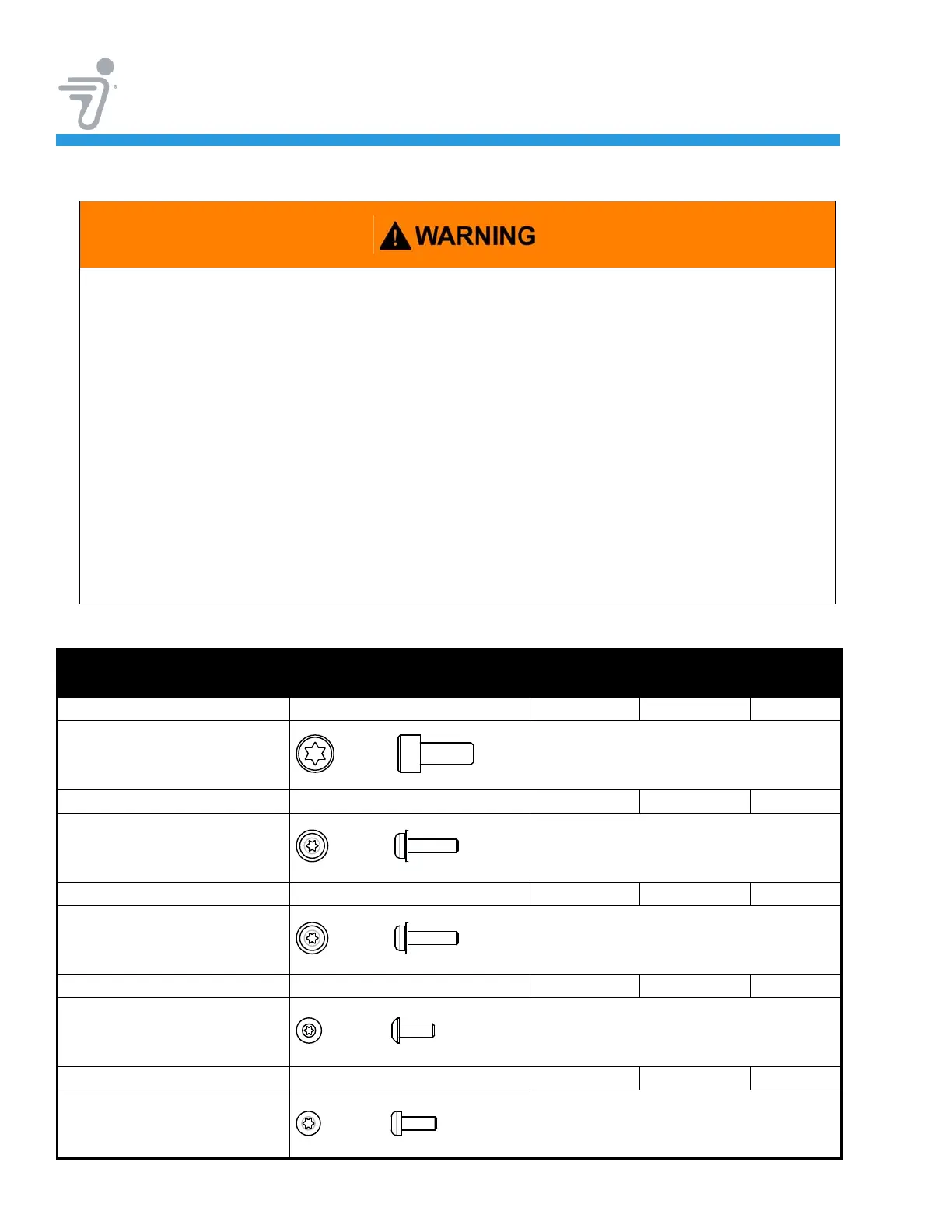

Table C-1: Fasteners
Part Number Application Qty/Unit Drive
Torque
(N-m)
20536‐0001 Motor 4 T‐25 5.0
SHCS,M5x0.8x12
20566‐00001 BalanceSensorAssembly(OEM) 4 T‐15 1.6
Self‐tappingforuseonlyin
replacementchassis,
M3x0.5x12,T‐10drive
20972‐00001 BalanceSensorAssembly 4T‐15 1.6
Forusewhenreinstallinginto
originalchassis
20567‐00001 CUBoard(OEM) 28 T‐15 1.6
Self‐tappingforuseonlywhen
inst
allingintonewchassis
20973‐00001 CUBoard 28 T‐15 1.6
Forusewhenreinstallinginto
originalchassis
