Segway®PersonalTransporteri2,x2,x2Turf PartsReplacementGuide 1‐5

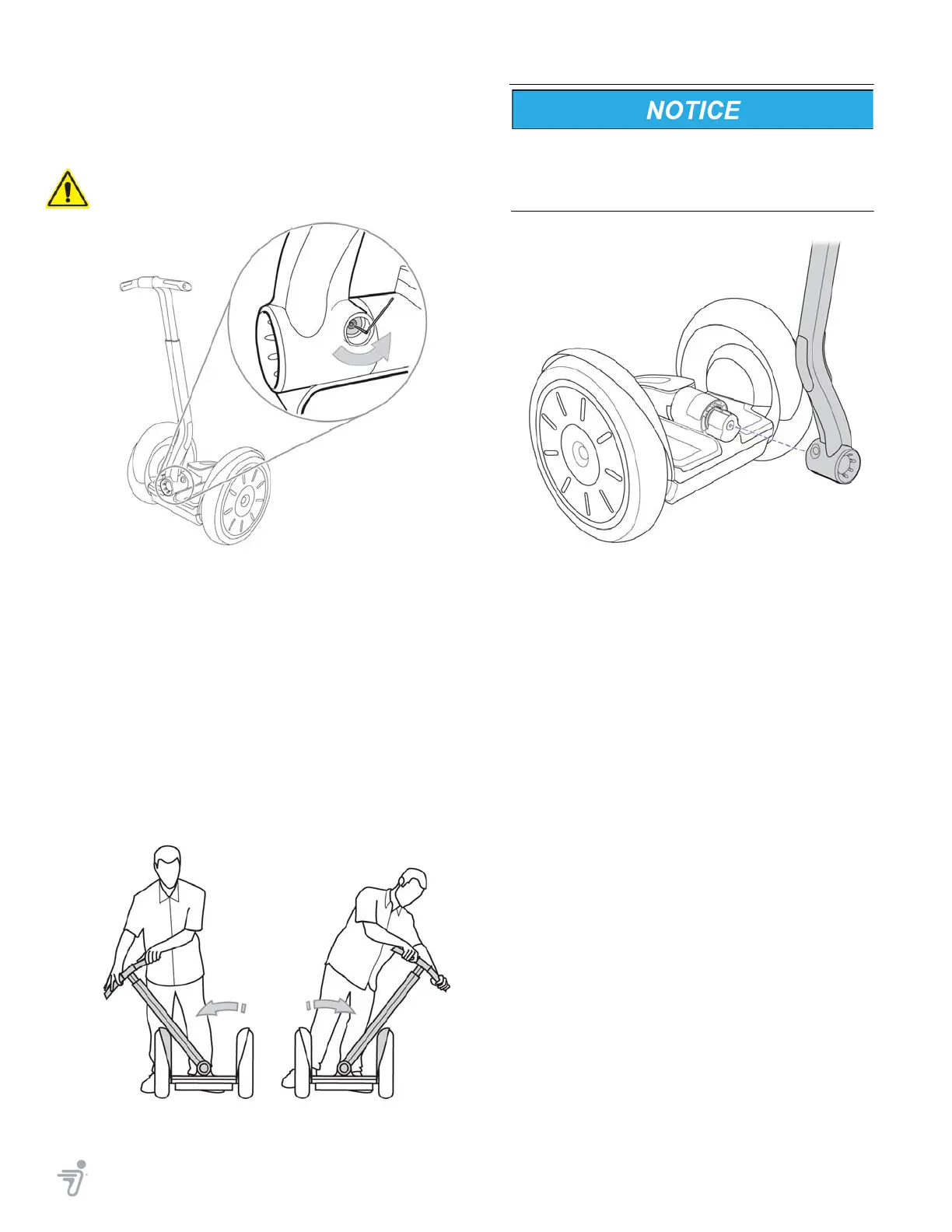

LeanSteer Frame Removal
To remove LeanSteer frame:
1. MakesureSegwayPTispoweredoffand
unplugged.
Figure1‐3:LoosenFastenerHoldingLeanSteerFrame
2. Using5mmhexwrench,removefastener
holdingLeanSteerframeinplace.See
Figure1‐3.
3. Mov
eLeanSteerframeallthewaytotheleft
andrightuntilloose.Youmighthearand
feelaclickwhenwedgeclampassembly
releasesfrompivotassembly.SeeFigure1‐4.
4. SlideLeanSteerframeaw
ayfrompivot
assembly,asshowninFigure1‐5.This
shouldrequ
ireminimalforce.
Figure1‐4:ReleasingLeanSteerFramefromPivotBase
Assembly
If wedge clamps fall out or are removed during
this procedure, put them aside in a safe place as
you will need them to reattach LeanSteer frame
to pivot assembly.
Figure1‐5:RemoveLeanSteerFramefromPivotAssembly
