- 114 -
Power
Power supply Model
PCB1 00- PCB1 10-
Power supply 100 – 240 V AC, 50/60 Hz 24 V AC/DC, 50/60 Hz
Allowable
fluctuation range
85 – 264 V AC 20 – 28 V AC/DC
Power consumption Power supply Power consumption
100 – 240 V AC Approx. 8 VA max. (When the maximum number of
options are ordered: Approx. 11 VA max.)
24 V AC Approx. 5 VA max. (When the maximum number of
options are ordered: Approx. 8 VA max.)
24 V DC Approx. 5 W max. (When the maximum number of
options are ordered: Approx. 8 W max.)
Inrush current Power supply Inrush current
100 – 240 V AC Max. 14 to 34 A
24 V AC Max. 34 A
24 V DC Max. 34 A

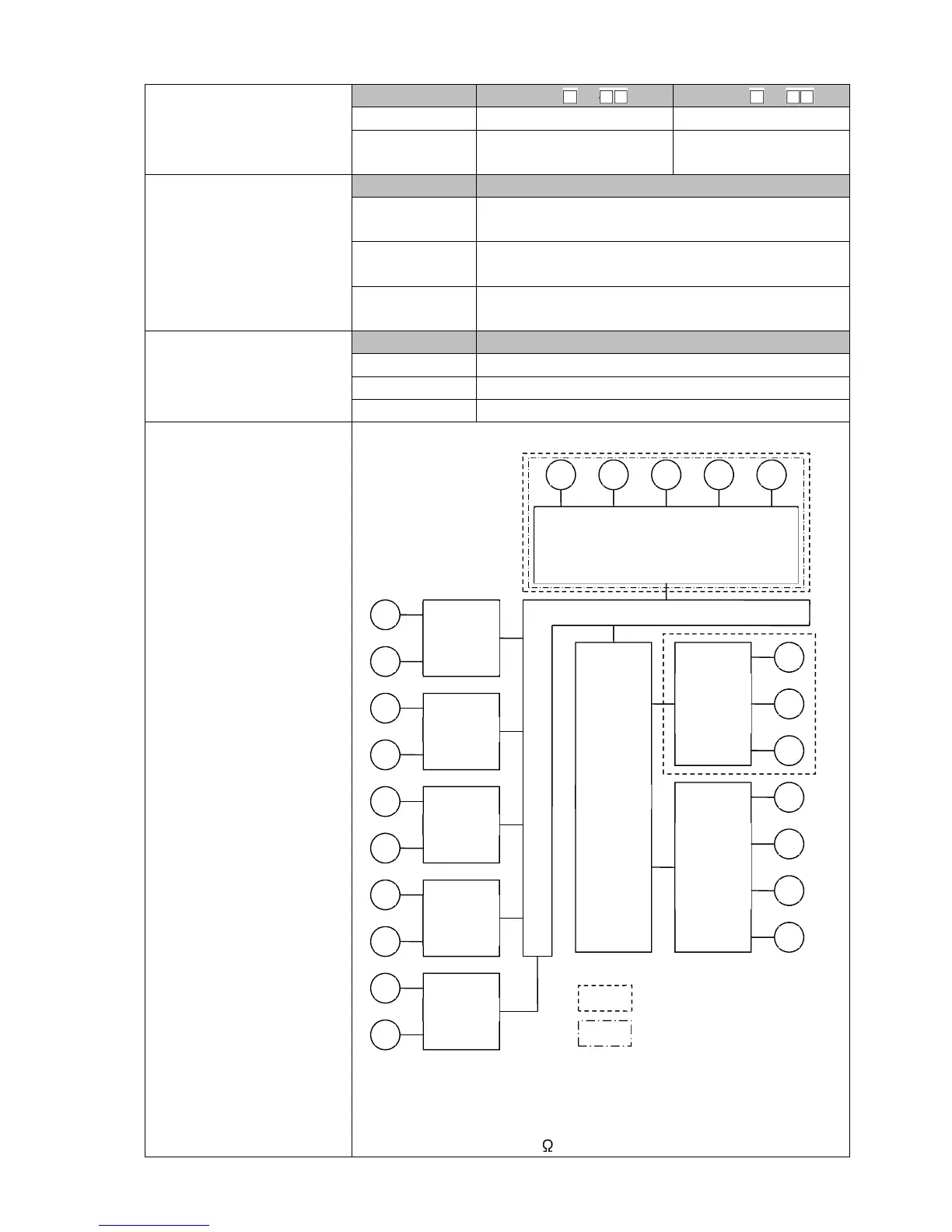

Circuit insulation
configuration
When C5W or C5 option is ordered:
(Fig. 11.1-1)
When OUT1 and OUT2 are a non-contact voltage output or direct current output,
OUT1 is not electrically insulated from OUT2.
Insulation resistance: 10 M min., at 500 V DC
24
2
3
2
2
2
1
2
0
19
18
17
16
15
14
13
12
11
10
9
8
3
2
1
POWER
SUPPLY
CPU
EV1
EV2
OUT2
2
0
19
P24
DI1
DI2
RS-485
Electrically insulated
OUT1
CT1
CT2
TC
RTD
DC
(
Input
)
When C5W option is ordered
W
hen
C5
option is ordered
