- 59 -
Characters,
Factory Default
Setting Item, Function, Setting Range
hysb
/ //1.0
OUT2 ON/OFF hysteresis
• Sets OUT2 ON/OFF hysteresis.

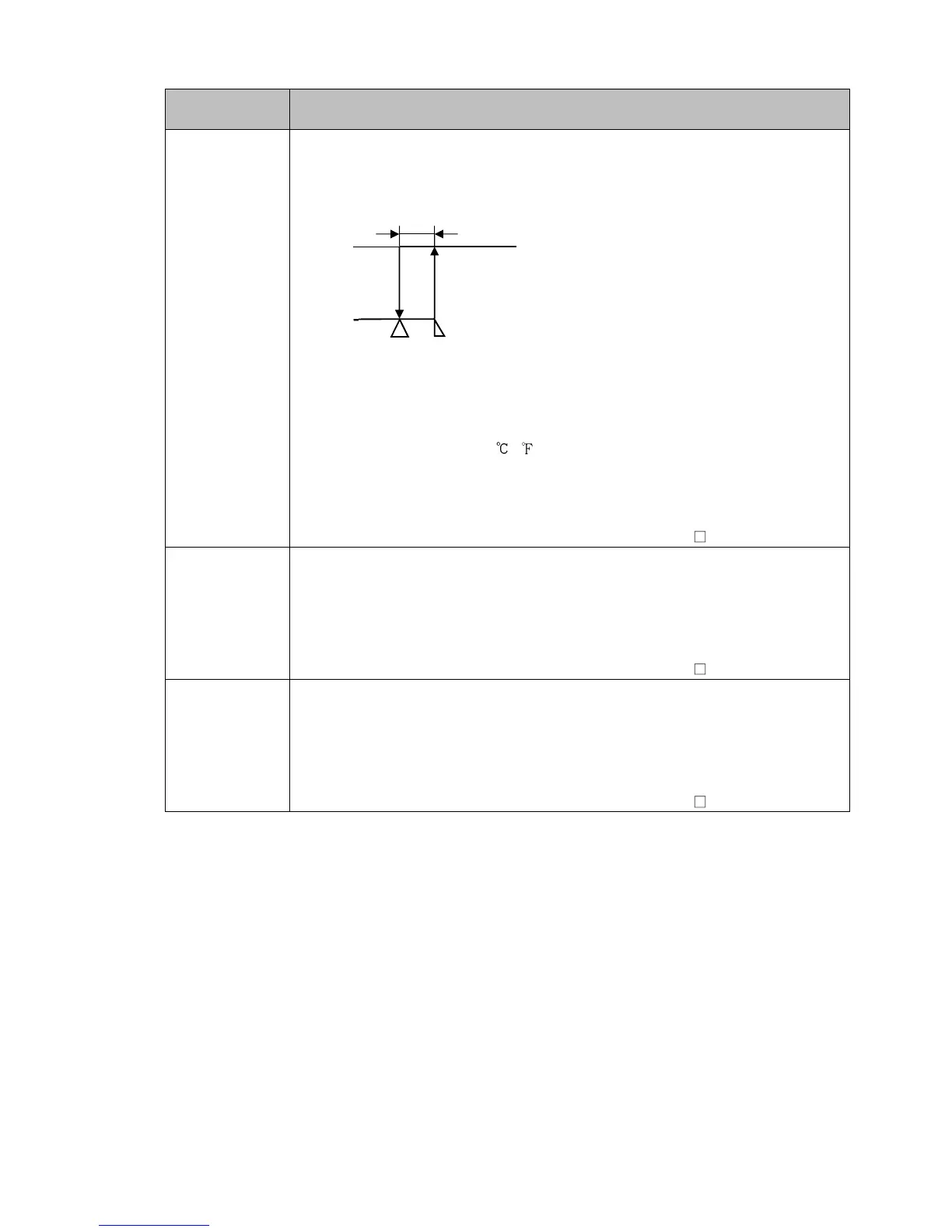

(Fig. 8.3-6)
• Setting range: 0.1 to 1000.0 ( )
DC voltage, current inputs: 1 to 10000 (The placement of the decimal point
follows the selection.)
Available when EV2 option {When /020 (Heating/Cooling control output) is selected in
[Event output EV2 allocation]} is ordered, or when DS, DA or EV3D option is ordered.
olhb
/ /100
OUT2 high limit
• Sets OUT2 high limit value.
• Setting range: OUT2 low limit value to 100%
Direct current output type (DA, EV3DA options): OUT2 low limit value to 105%
Available when EV2 option {When /020 (Heating/Cooling control output) is selected in
[Event output EV2 allocation]} is ordered, or when DS, DA or EV3D option is ordered.
ollb
/ ///0
OUT2 low limit
• Sets OUT2 low limit value.
• Setting range: 0% to OUT2 high limit value
Direct current output type (DA, EV3DA options): -5% to OUT2 high limit value
Available when EV2 option {When /020 (Heating/Cooling control output) is selected in
[Event output EV2 allocation]} is ordered, or when DS, DA or EV3D option is ordered.
ON
Hysteresis
OFF
OUT2
hysteresis
SV
