Shinko PCB1 - Page 60

- 60 -
Characters,
Factory Default
Setting Item, Function, Setting Range
db//
/ //0.0

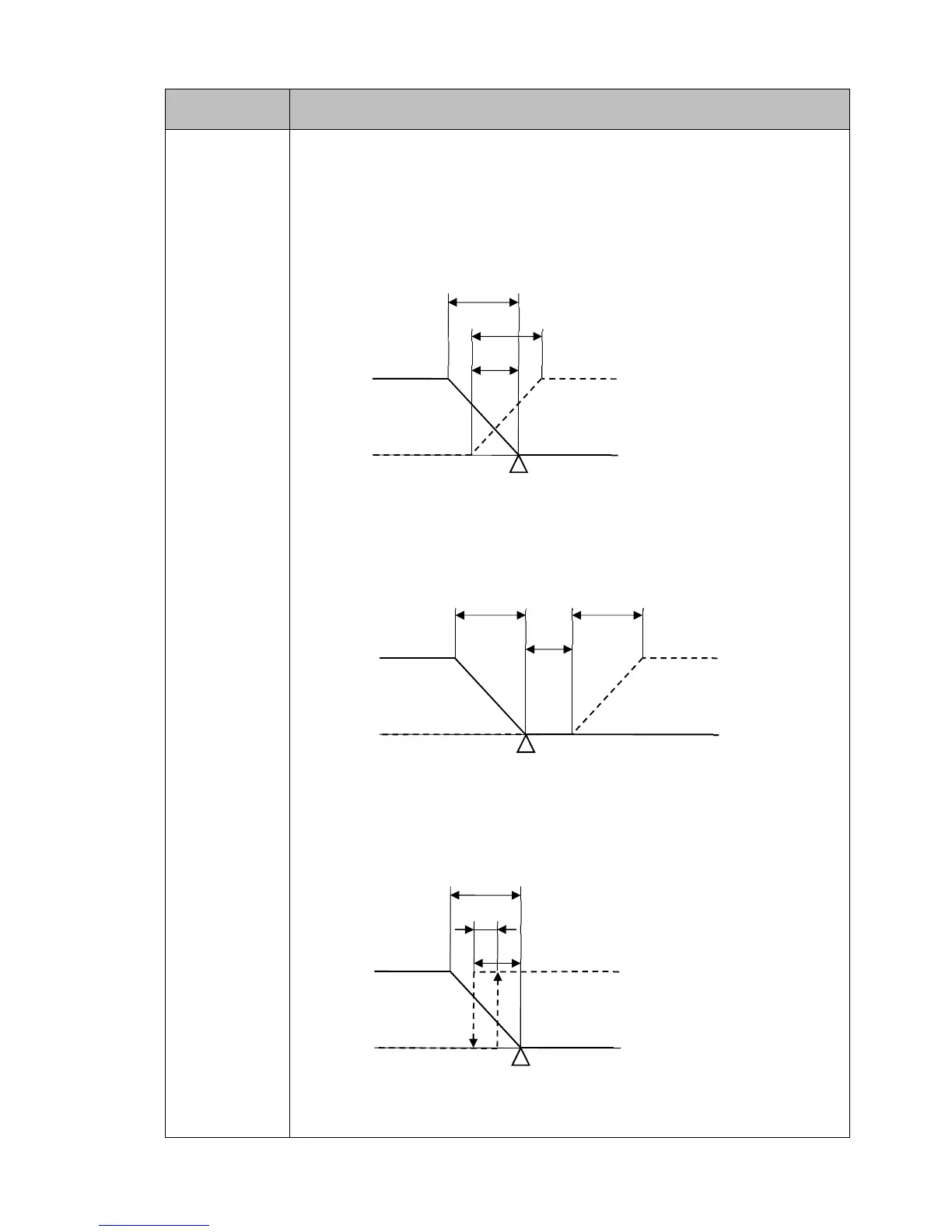

Overlap/Dead band
• Sets the overlap band or dead band for OUT1 and OUT2.
+ Set value: Dead band
– Set value: Overlap band
Overlap band (When OUT1 and OUT2 are in PID control)
(Fig. 8.3-7)
Dead band (When OUT1 and OUT2 are in PID control)
(Fig. 8.3-8)
Overlap band (When OUT1 is in PID control, OUT2 is in ON/OFF control)
(Fig. 8.3-9)
OUT1 proportional band
ON
OFF
SV
OUT2 proportional band
Overlap band
OUT1 OUT2
ON
OFF
ON
OFF
OUT1
OUT1 P-band OUT2 P-band
Dead band
OUT2
SV
ON
OFF
OUT1 proportional band
ON
OFF
SV
Overlap band
OUT1 OUT2
ON
OFF
Hysteresis
