Shinko PCB1 - Page 87

- 87 -
If
/001
(Pattern number selection) is selected in [Event input DI1 allocation] and [Event input
DI2 allocation]:
(e.g.) To select Pattern 4, close (ON)
9
–
12
, and
8
–
12
.
(Table 9.1.1-3)
Pattern
number
Terminal
number
* 2 3 4
9
Event input DI1
OFF (Open) ON (Closed) OFF (Open) ON (Closed)
8
Event input DI2
OFF (Open) OFF (Open) ON (Closed) ON (Closed)
* This number will be selected by keypad.
(4) Perform Program Control
There are 2 ways to start program control.
Using the RUN key, or using Event input.
• Using the
RUN
key
Press the RUN key in Program control STOP (in Standby).
Program control starts.
• Using Event input
If
/003
(Program control RUN/STOP) is selected in [Event input DI allocation],
Program control RUN/STOP can be switched, depending on ON (Closed) or OFF (Open)
status between Event input DI1/DI2 terminal and SG terminal.
If
/003
(Program control RUN/STOP) is selected in [Event input DI1 allocation],
close (ON)
9
and
12
.
Program control will start.

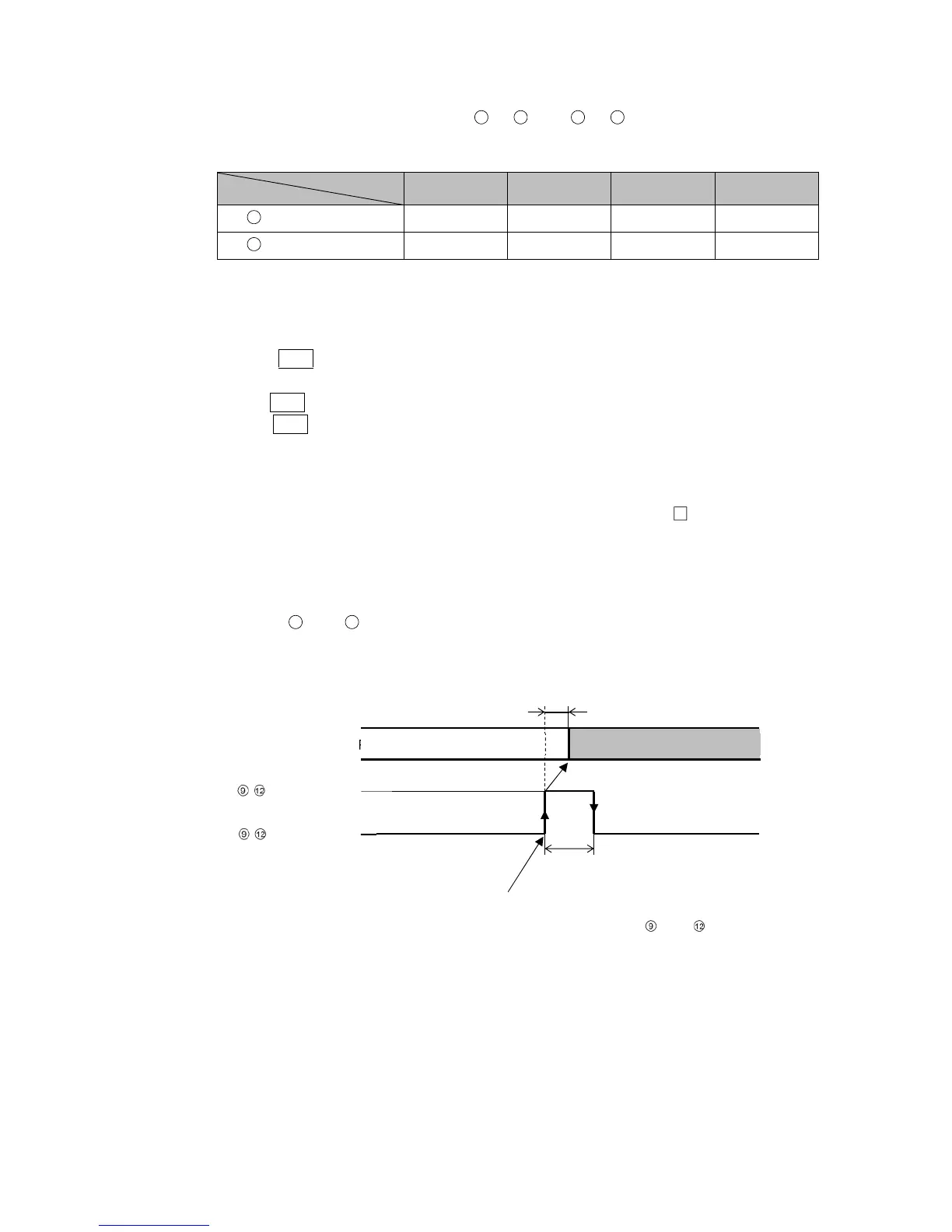

(Fig. 9.1.1-1)
Program control STOP (in Standby)
Program control RUN
Within 0.1 sec
0.1 sec min.
- ON (Closed)
- OFF (Open)
Controller action
Program control performs by detecting rising signal edge action
from OFF (Open) to ON (Closed) of terminals and
.
