- 88 -
[Program control start type]
Program control start type can be selected in [Program control start type].
PV start:
Only when program control starts, step SV and step time are advanced to the PV,
then program control starts.
However, if step SV set in [Step SV when program control starts] is higher than the PV
(when PV start is initiated), then program control will start from the SV set in [Step SV
when program control starts].

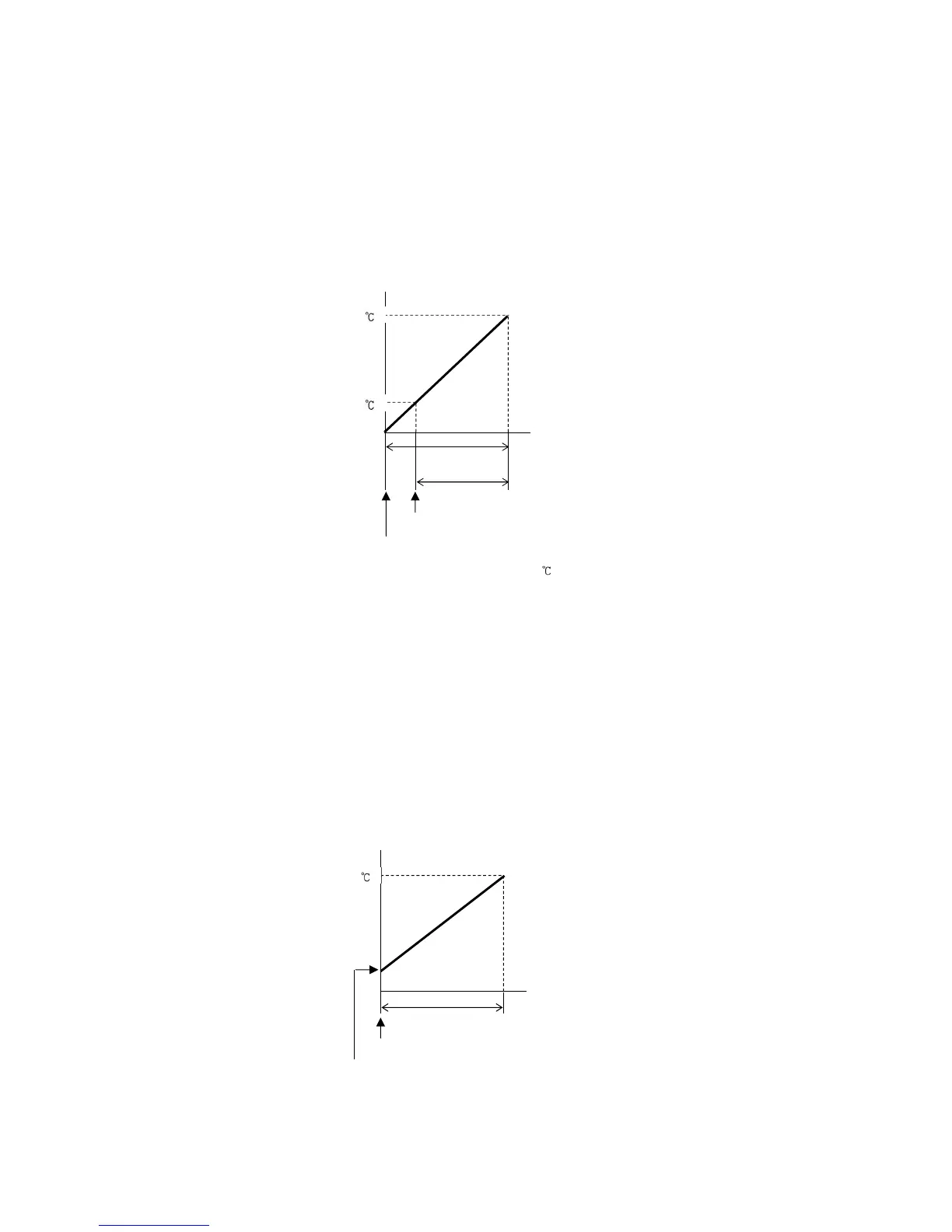

(Fig. 9.1.1-2)
PVR start:
When program control starts and in pattern repeating, the step SV and step time are
advanced to the PV, then the program control starts.
Action is the same as that of PV start. Refer to (Fig. 9.1.1-2).
SV start:
Program control starts from the value set in [Step SV when program control starts].
(Fig. 9.1.1-3)
100
1:00
Time
PV start point
When program control starts,
step SV is advanced to PV (25 ).
25
0:45
100
1
:
00
Time
Program control starts.
Program control starts from the value set
in [Step SV when program control starts].
