ONLINE HELP SOPAS Chapter 5
LECTOR®620
Parameters
8013778/Y269/2013-11-27 © SICK AG · Germany · All rights reserved · Subject to change without notice 33

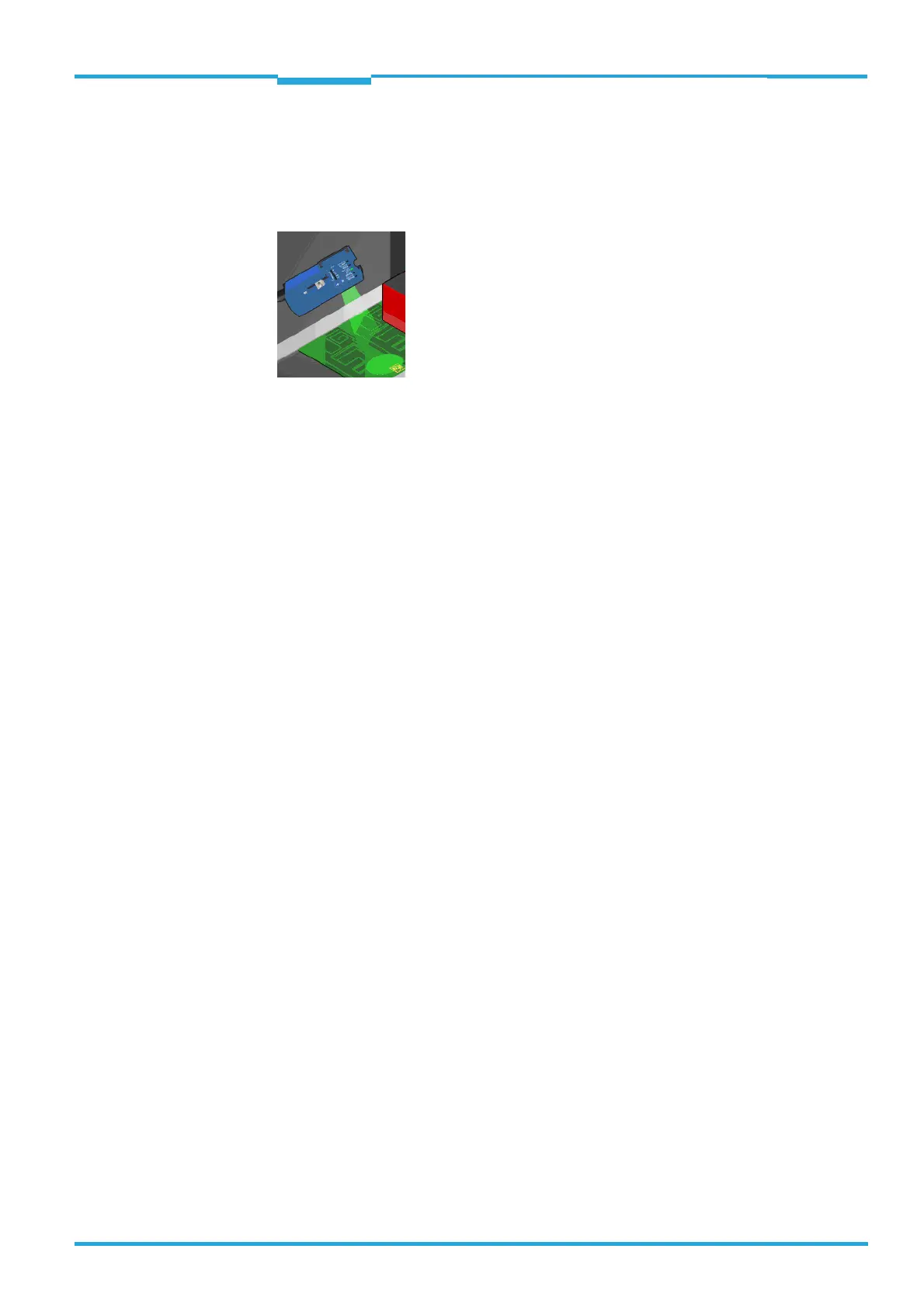

5.4.1.4.3 Green feedback spot
The Green feedback spot parameter is used to select the condition causing a green LED
spot to be illuminated in the reading area. As a result, an optical notification can be set up
for a specific event.
The timeframe for illumination is defined using the Duration parameter.
• O
FF: The LED spot never illuminates.
• G
OOD READ: The green LED spot illuminates if reading was successful.
• N
O READ: The green LED spot illuminates if reading was unsuccessful.
• T
EACH-IN 1 OK: The green LED spot illuminates if the MATCHCODE TEACH-IN 1 was read in suc-
cessfully.
• T
EACH-IN 1 NOK: The green LED spot illuminates if the MATCHCODE TEACH-IN 1 was not read
in successfully.
• T
EACH-IN 2 OK: The green LED spot illuminates if the MATCHCODE TEACH-IN 2 was read in suc-
cessfully.
• T
EACH-IN 2 NOK: The green LED spot illuminates if the MATCHCODE TEACH-IN 2 was not read
in successfully.
• C
ONDITION MATCH1: The green LED spot illuminates if the read code corresponds to the
matchcode of C
ONDITION MATCH1.
• C
ONDITION MULTCODES1: The green LED spot illuminates if the number of read codes cor-
responds to the required number from C
ONDITION MULTCODES1.
• C
ONDITION TEACHIN1: The green LED spot illuminates if the read code corresponds to the
matchcode from C
ONDITION TEACHIN1.
• C
ONDITION TEACHIN2: The green LED spot illuminates if the read code corresponds to the
matchcode from C
ONDITION TEACHIN2.
5.4.1.4.4 Duration
The Duration parameter is used to define the timeframe for the optical notification (Green
feedback spot).
5.4.1.5 Image filters
Parameters for optimizing the camera image in the case of noise or special code markings
are combined in the Image filters group.
5.4.1.5.1 Noise suppression
Image smoothing is switched on and off via the Noise suppression parameter to pick out
the code clearly against the background.
