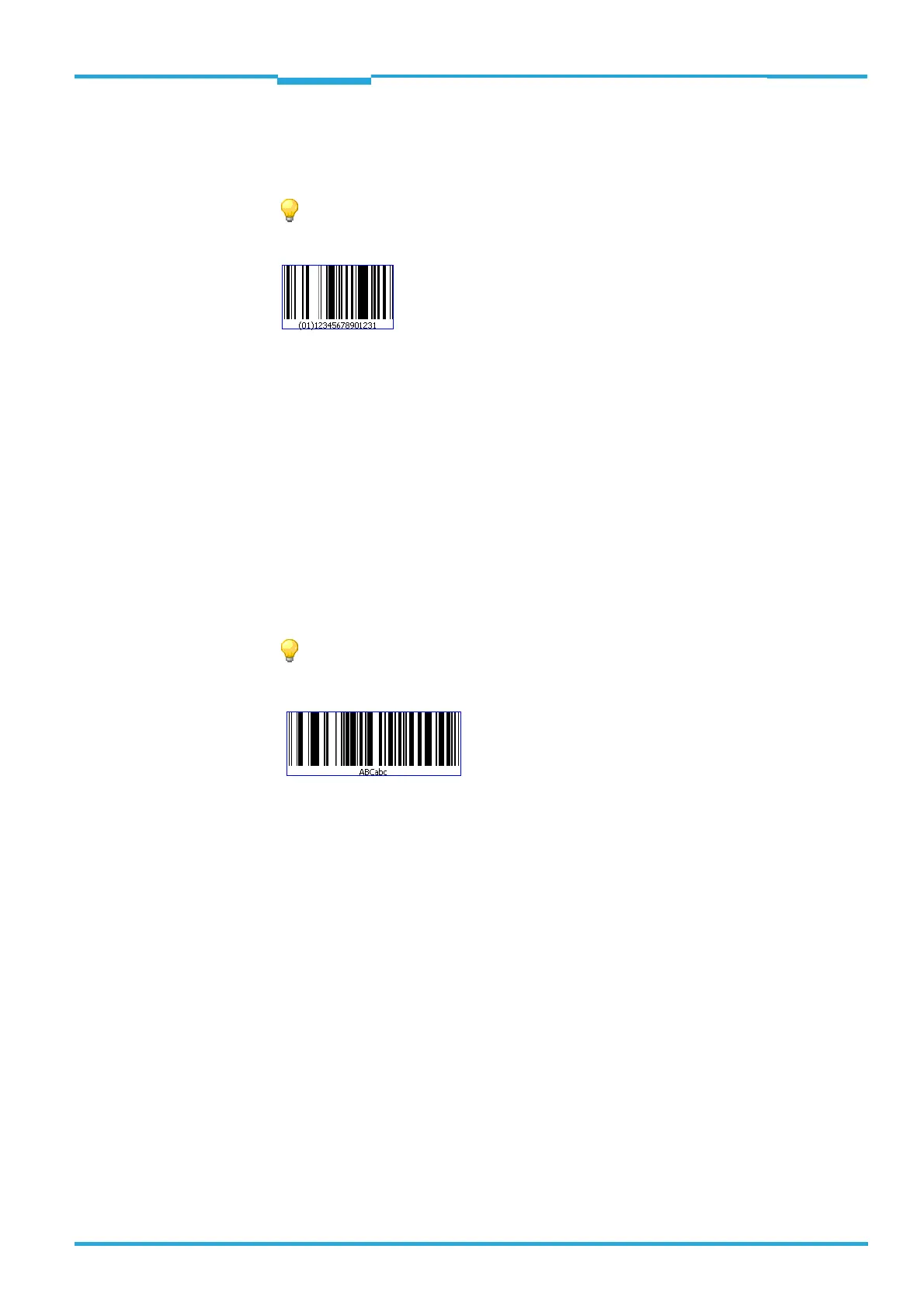

5.7.12.1.1 DataBar 14
If the DataBar 14 parameter is activated, decoding starts for the relevant code type.
As only activated code types are processed, you can increase the processing speed by
deactivating the code types that are not being used.
• Code name: DataBar 14
• Character set: 14 fixed digits
• Structure: 94 modules divided into 46 elements; code words consist of 15 or 16 modules
and are displayed with 4 gaps and 4 lines; the pattern has 14 modules; the lines and gaps
are shown with 8 different module widths, i.e. the elements can be between 1X and 8X wide
• Intrinsic safety: High
• Standard: ISO/IEC 2427
• Area of application: Trade
5.7.12.1.2 DataBar Expanded
If the DataBar Expanded parameter is activated, decoding starts for the relevant code type.
As only activated code types are processed, you can increase the processing speed by
deactivating the code types that are not being used.
• Code name: GS1 DataBar Expanded (GDBE)
• Character set: Max. 74 digits, max. 41 characters
• Structure: 2 corner characters: 2 modules each, both containing 1 bar and 1 gap; 4-22
data characters: 17 modules each, both containing 4 bars and 4 gaps; 2-11 patterns and
1 check digit
• Intrinsic safety: High
• Spatial requirements: Variable
• Standard: ISO/IEC 646
• Areas of application: Variable-measure foods, coupons
