5.8 Data processing
The Data processing tab contains the parameters for defining the two output formats, as
well as for filtering, sorting, and controlling the data output.
These parameters are used to define the data, conditions, time, and sequence of the output
on the communication interfaces.
5.8.1 Collection of data
Data is assigned to an object in the Collection of data group. Using the parameters in the
Collection of data group, object data can be used uniquely in relation to a particular object
and the code content can be uniquely assigned to an object.
5.8.1.1 Timeout
The Timeout parameter defines the duration before data processing should be started or
stopped.
5.8.2 Code summarization
Depending on their position on the object, a distinction can be made between codes of the
same type and with the same content using the parameters in the Code summarization
group.
For this to take place, there must be a definable minimum distance (code distance) bet-
ween the identical codes on the object.
5.8.2.1 Separate codes depending on position
If the Separate codes depending on position parameter is activated, the system differenti-
ates between codes of the same code type and with identical code contents depending on
their position on the object.
The identical codes on the object must have a definable minimum distance (Code distance).
5.8.2.2 Code distance

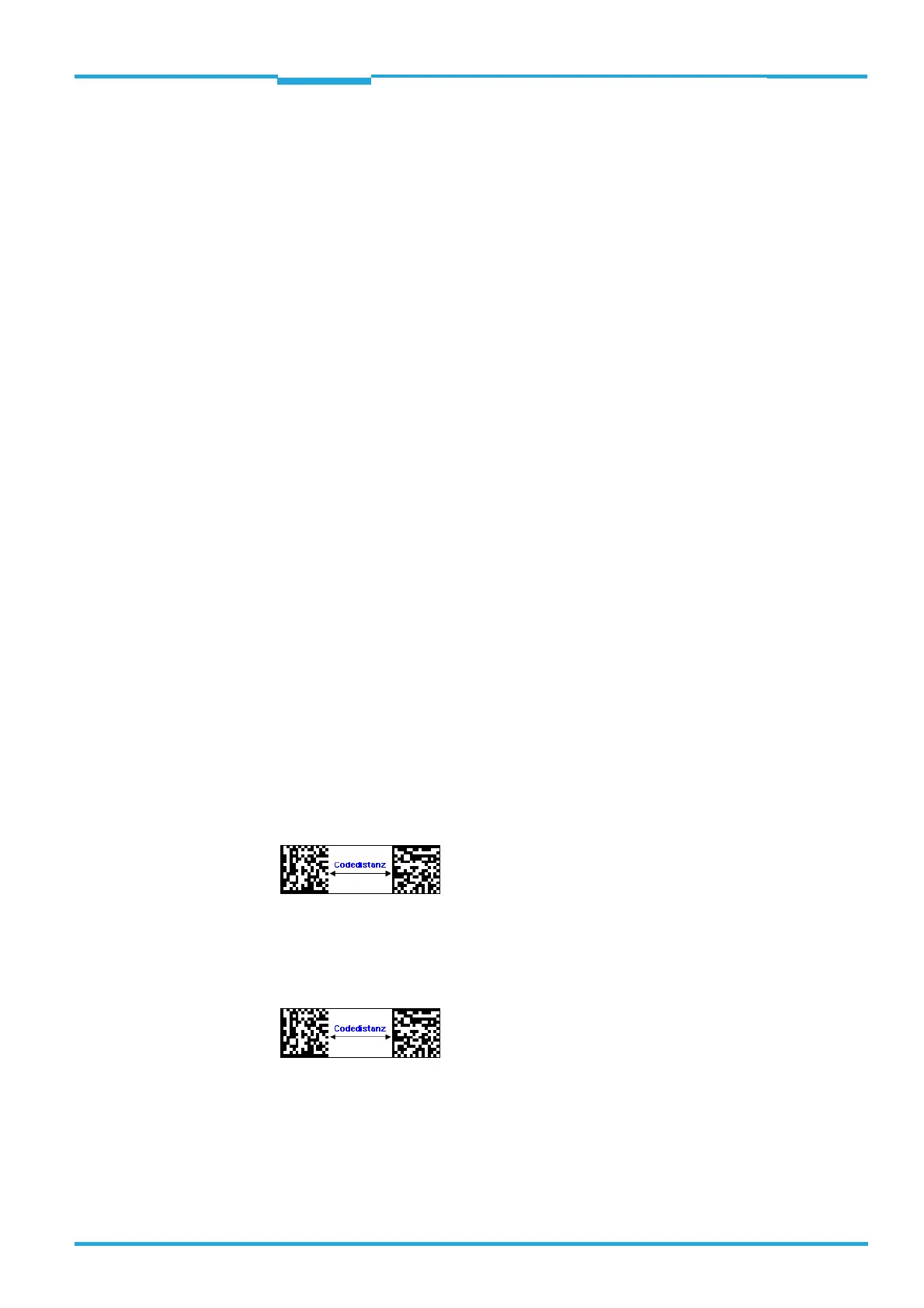

The Code distance parameter is used to define the minimum distance for differentiating
between identical codes.
The system only differentiates between codes with the same symbology and identical code
contents if their distance on the object is at least the defined Code distance.
