Technical specifications
Length of the monitored area S
[mm]
Dimension L1
[mm]
Dimension L2
[mm]
300 387 416
450 537 566
600 687 716
750 8
37 866
900 987 1016
1050 1137 1166
1200 1287 1316
1350 1437 1466
1500 1587 1616
1650 1737 1766
1800 1887 1916

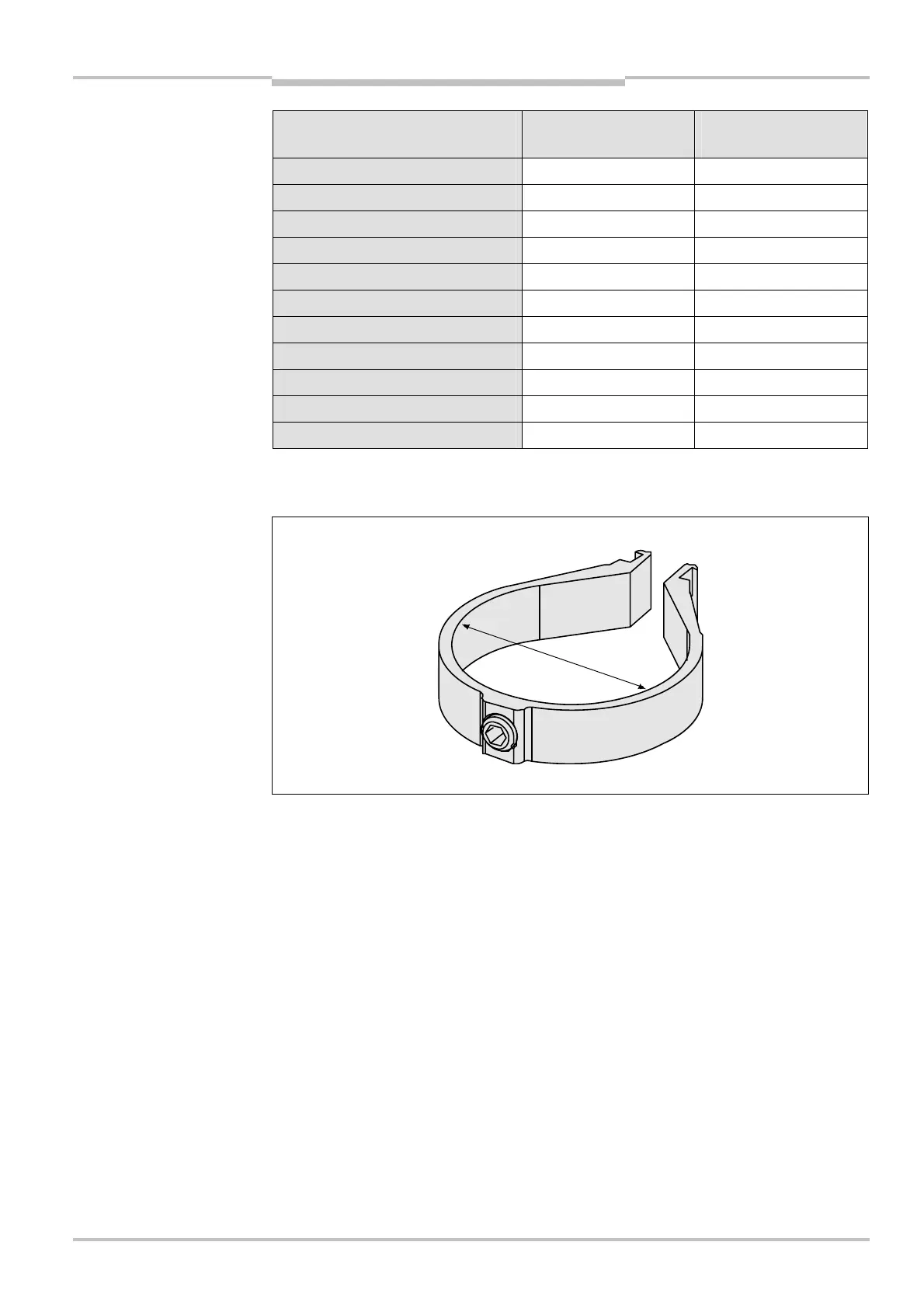

13.3.4 Omega bracket
Tab.
48
:
Dimensions of the
M4000 Area 60/80,
dependent of the length of
the monitored area
Fig. 72: Omega bracket (mm)

49
Part No. 2044846
