SICK M4000 Advanced User Manual

Operating Instructions Chapter 13
M4000 Adv., Adv. A/P, Area
8010797/YT72/2016-02-19 © SICK AG • Industrial Safety Systems • Germany • All rights reserved 129
Subject to change without notice
Technical specifications
13.3.10 Deflector mirror PSK45
 If you use a two-beam M4000 Advanced A/P, then you can use two PSK45 deflector
mirrors instead of the M4000 Passive.
 The deflector mirror PSK45 is not suitable for column mounting.
 When using deflector mirrors, the effective scanning range is reduced (see Tab. 16 on
page 44).
 The formation of droplets of heavy contamination can be detrimental to the reflection
behaviour. Take the necessary organisational measures to avoid the formation of
droplets on the deflector mirrors.

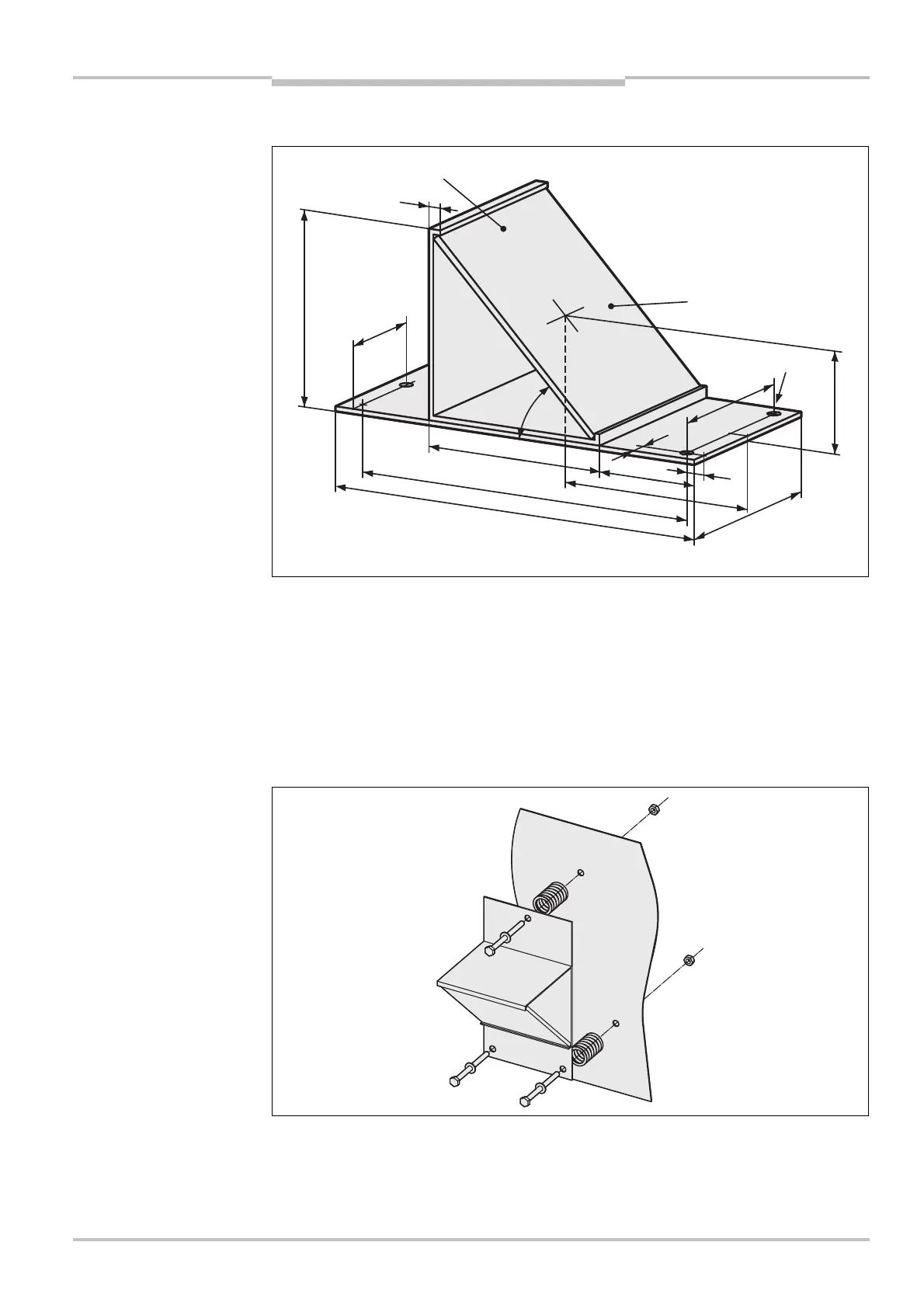

Fig. 78: Dimensional drawing
deflector mirror PSK45 (mm)
Notes
Fig. 79: Mounting of the
deflector mirror PSK45
Mirror
Mirror: 80
×
96.8
×
3
±0.3
Middle of rear surface
of the mirror
40
4
±0.5
8
±0.5
64
80
(37.5)
8
±0.5
31
(61)
129
145
73.5
±0.5
75
+1
3
×

5.3
Part No.
5306053
45°

SICK M4000 Advanced Specifications

General

Type	Multiple light beam safety device
Enclosure rating	IP65
Supply voltage	24 V DC
Safety integrity level	SIL3
Performance level	PL e
Protection Rating	IP65
Operating Voltage	24 V DC
Number of beams	2 to 4 beams
Resolution	70 mm
Ambient operating temperature	-25 °C ... +55 °C
Angular Resolution	Not applicable
Operating Temperature	-25 °C ... +55 °C
